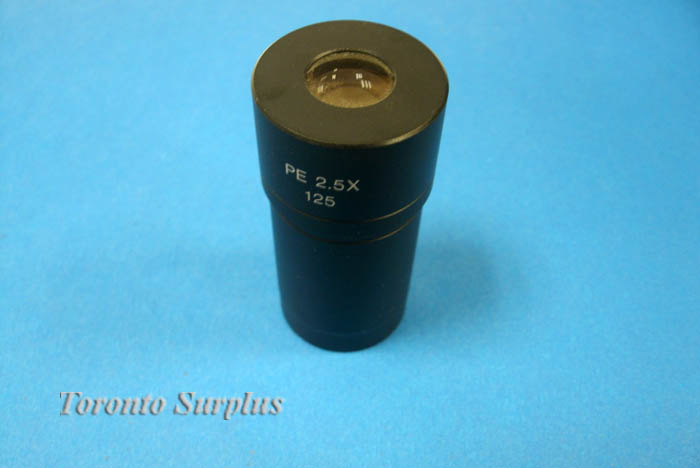

zo Olympus PE 2.5X 125 Eyepiece Lens

This photo eyepiece is designed for use with trinocular versions of Olympus compound microscopes that take the UIS and UIS-2 series of infinity-corrected objectives (including the AX, BX, CX, CKX, IX and MX series), and with trinocular versions of the Olympus SZX7, SZX9, SZX12 or SZX16 infinity-corrected stereo microscopes. They fit inside the circular dovetail at the top of the U-DPT, U-SPT, U-VPT, IX-SPT and IX2-SPT photo tubes.

The PE photo eyepieces are available with 2×, 2.5×, 3.3×, 4× and 5× magnifications; the 2.5× eyepiece is intended for use with 35 mm cameras.

Length

• 55.2 mm

Diameter (top)

• 26.9 mm

Diameter (body)

• 24.8 mm

Weight

• 62.0 gm

Microscope ref.

• 2-U720 037081

Film format

• 35 mm (24×36 mm)

Magnification relative to 2×

• 1.25×

Magnification relative to 2.5×

•  1×
