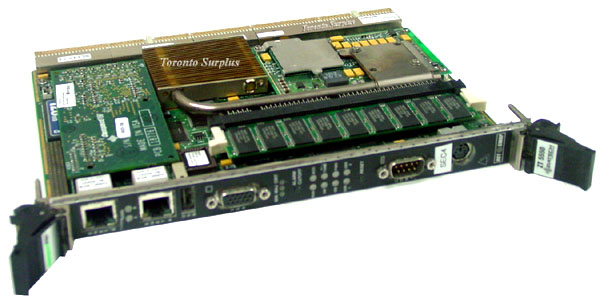

Ziatech ZT 5550 / ZT5550 Pentium III CompactPCI Single Board Computer
sku651110+ in stock
Request a Quote
By Ziatech
<p> Ziatech ZT 5550 Pentium III CompactPCI Single Board Computer</p><p>Features:     * Acts As a CompactPCI System Slot Device in Either HA or Non-HA Systems     * CompactPCI Specification, PICMG * 2.0, Version 3.0     * CompactPCI Hot Swap Specific…
Description
<p> Ziatech ZT 5550 Pentium III CompactPCI Single Board Computer</p><p>Features:
    * Acts As a CompactPCI System Slot Device in Either HA or Non-HA Systems
    * CompactPCI Specification, PICMG * 2.0, Version 3.0
    * CompactPCI Hot Swap Specification, PICMG 2.1, Version 2.0
    * Intel Pentium III Processor Mobile Module (EMC-2)
    * Single 6U CompactPCI Slot Form Factord
Configuration:
500 MHz Pentium III Processor (EMC-2), 256 MB RAM & 2MB SDRAM</p><p>
The Ziatech / Performance Technologies ZT 5550 is an Intel Pentium III processor-based single board CompactPCI computer. Two ZT 5550 CPUs can be used on the same backplane, as an Active/Standby System Master pair, or as a Split Mode (Revision D and later boards) Standby System Master pair, to provide redundancy for the ZT 5083 and ZT 5084 High Availability (HA) Systems designed for mission-critical telecommunication and industrial control applications requiring 99.999% availability. The ZT 5083 and ZT 5084 systems incorporate redundant ZT 5550s, power supplies, and cooling fans in a single enclosure. Each ZT 5550 can be an Active, Standby, or Split Mode (Revision D and later boards) Host CPU. Resource management and database information is synchronized between the Active, Standby, and Split Mode (Revision D and later boards) Hosts via a bi-directional serial channel and an Ethernet* channel.
The ZT 5550 utilizes the Intel Pentium III Processor Mobile Module: Embedded Module Connector 2 (EMC-2) to provide extremely high PCI performance and the latest in memory and I/O technology. An active ZT 5550 is designed to function in the System Slot controlling the CompactPCI backplane.
Each ZT 5550 supports attachment of an optional 6U I/O Expansion Board (such as the ZT 96072 or ZT 96073). I/O Expansion boards (IOX) are designed to greatly expand the I/O capability of the ZT 5550. Rear-panel access to the CPU/IOX combination can be provided by rear-panel I/O (RPIO) transition boards (such as the ZT 4804 and ZT 4802).</p><p>REMOVED FROM A WORKING SYSTEM, VISUAL INSPECTION ONLY, FINAL SALE.</p>
    * Acts As a CompactPCI System Slot Device in Either HA or Non-HA Systems
    * CompactPCI Specification, PICMG * 2.0, Version 3.0
    * CompactPCI Hot Swap Specification, PICMG 2.1, Version 2.0
    * Intel Pentium III Processor Mobile Module (EMC-2)
    * Single 6U CompactPCI Slot Form Factord
Configuration:
500 MHz Pentium III Processor (EMC-2), 256 MB RAM & 2MB SDRAM</p><p>
The Ziatech / Performance Technologies ZT 5550 is an Intel Pentium III processor-based single board CompactPCI computer. Two ZT 5550 CPUs can be used on the same backplane, as an Active/Standby System Master pair, or as a Split Mode (Revision D and later boards) Standby System Master pair, to provide redundancy for the ZT 5083 and ZT 5084 High Availability (HA) Systems designed for mission-critical telecommunication and industrial control applications requiring 99.999% availability. The ZT 5083 and ZT 5084 systems incorporate redundant ZT 5550s, power supplies, and cooling fans in a single enclosure. Each ZT 5550 can be an Active, Standby, or Split Mode (Revision D and later boards) Host CPU. Resource management and database information is synchronized between the Active, Standby, and Split Mode (Revision D and later boards) Hosts via a bi-directional serial channel and an Ethernet* channel.
The ZT 5550 utilizes the Intel Pentium III Processor Mobile Module: Embedded Module Connector 2 (EMC-2) to provide extremely high PCI performance and the latest in memory and I/O technology. An active ZT 5550 is designed to function in the System Slot controlling the CompactPCI backplane.
Each ZT 5550 supports attachment of an optional 6U I/O Expansion Board (such as the ZT 96072 or ZT 96073). I/O Expansion boards (IOX) are designed to greatly expand the I/O capability of the ZT 5550. Rear-panel access to the CPU/IOX combination can be provided by rear-panel I/O (RPIO) transition boards (such as the ZT 4804 and ZT 4802).</p><p>REMOVED FROM A WORKING SYSTEM, VISUAL INSPECTION ONLY, FINAL SALE.</p>
