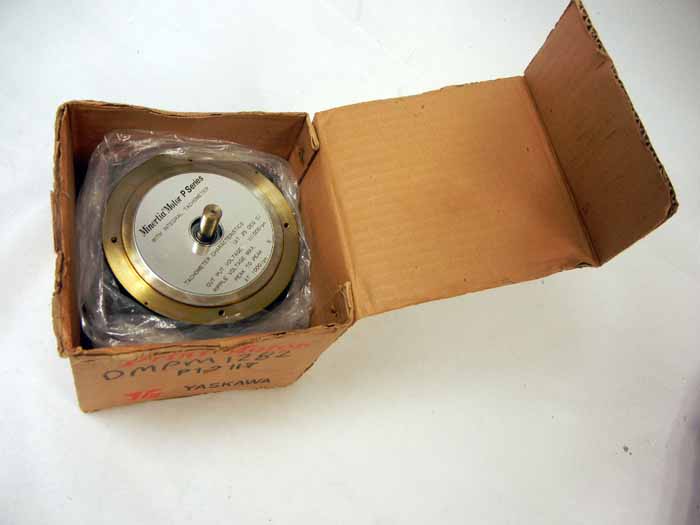

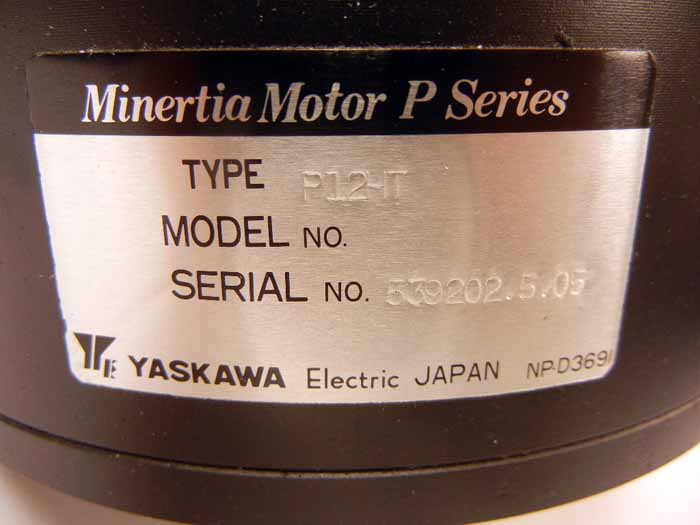

Yaskawa P12HT Minertia Motor w/ Integral Tachometer

 Minertia Motors P Series are disarmature DC motors. The principal of disc armature DC motors was developed by SEA France.  They feature epoch-making armature construction " flat " armature. In 1964 Yaskawa made technological breakthroughs and gained success in manufacturing the highly reliable, highly durable, armatures of stabalized performance in quality. P series motors incorporating theses armatures have been widely used throughout the world for general industrial applicatons including, robots, X-Y tables and computer peripherals.

FEATURES

• Strong permanent ainico magnets
• quick response and accurate positioning
• Very Low ripples and no cogging
• Compatible with conventional flat armature motors.
• Fast Reacting service centers in USA for maintenance and repair
• Quality control testing performed on a 100% basis

SPECIFICATIONS

Peak Rated Torque: 6.28N-m

Rated Torque: 1.26 N-m

Peak Current: 37.1 N-m/A

Electrical Time Constant: <0.16 milisec

Rated Speed: 3000 R/Min

Max Safe Operating Speed: 4000 R/ min
