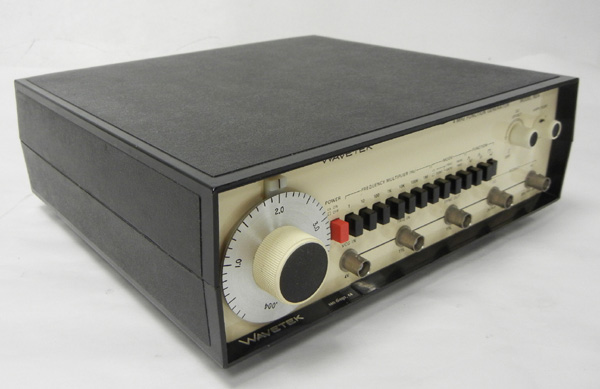

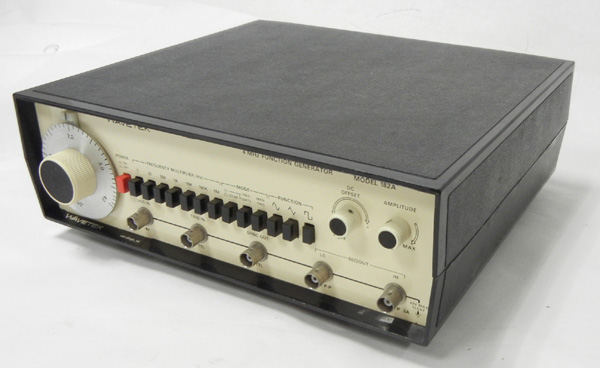

Wavetek 182A Function Generator with Manual, 0.004 Hz to 4 MHz, 20V

Wavetek 182A Function Generator, 0.004 Hz to 4 MHz, 20V

Wavetek Model 182A Four MHz Function Generator is a precision source of sine, triangle and square waveforms plus DC voltage. All are front panel variable from 0.004 Hz to 4 MHz and can be externally modulated or swept over a 1000:1 range. Output can be continuous or the generator can be triggered or gatyed by and external signal or a front panel switch. Amplitude of the waveforms is variable from 10V peak-to-peak into 50 ohms down to 30 mV. DC reference of the waveforms can be offset positively or negatively.

Specifications:

Sine, Triangle, Square, TTL pulse and DC.

Operational Modes:

Continuous: Generator runs continuously at selected frequency.

Triggered: Generator is quiescent until triggered by external signal or manual trigger, then generates one complete waveform cycle at selected frequency.

Gated: As triggered mode, except output continues for duration of gate signal. Last waveform started is completed.

MANUAL INCLUDED. FULL SPECIFICATIONS AVAILABLE UPON REQUEST.
