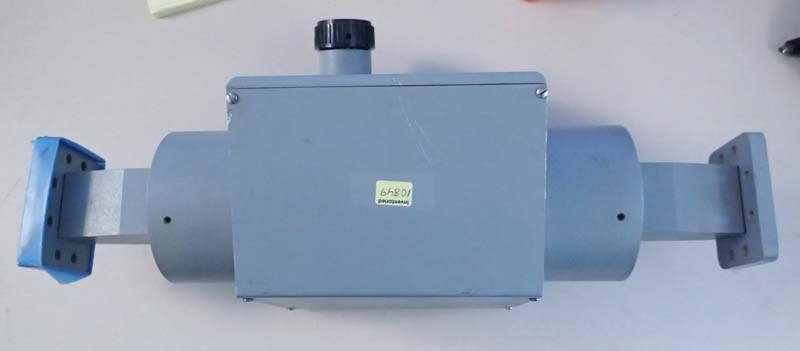

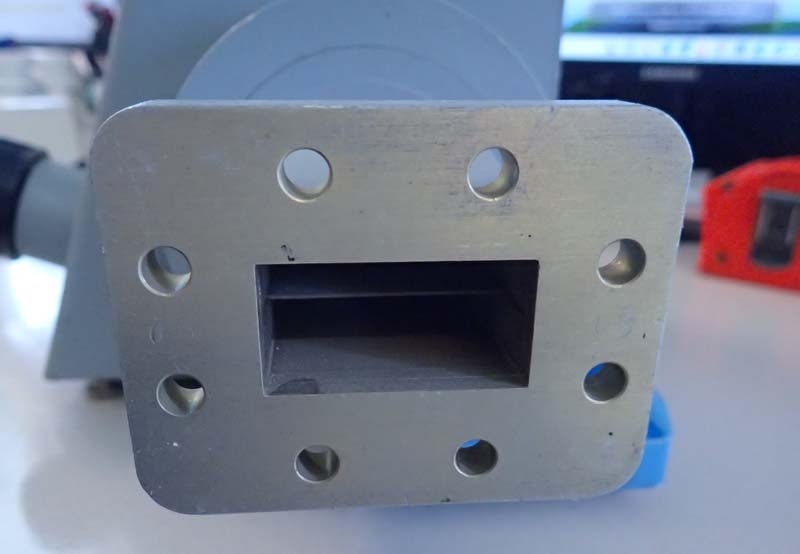

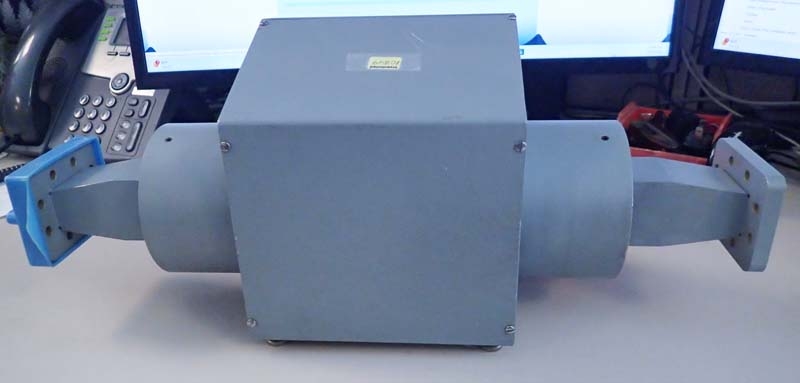

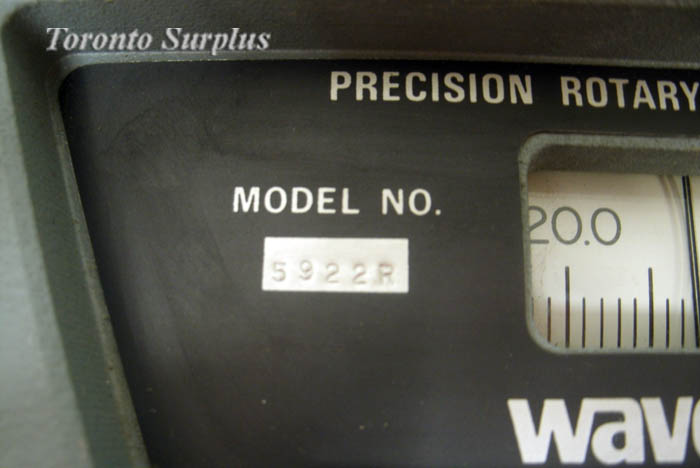

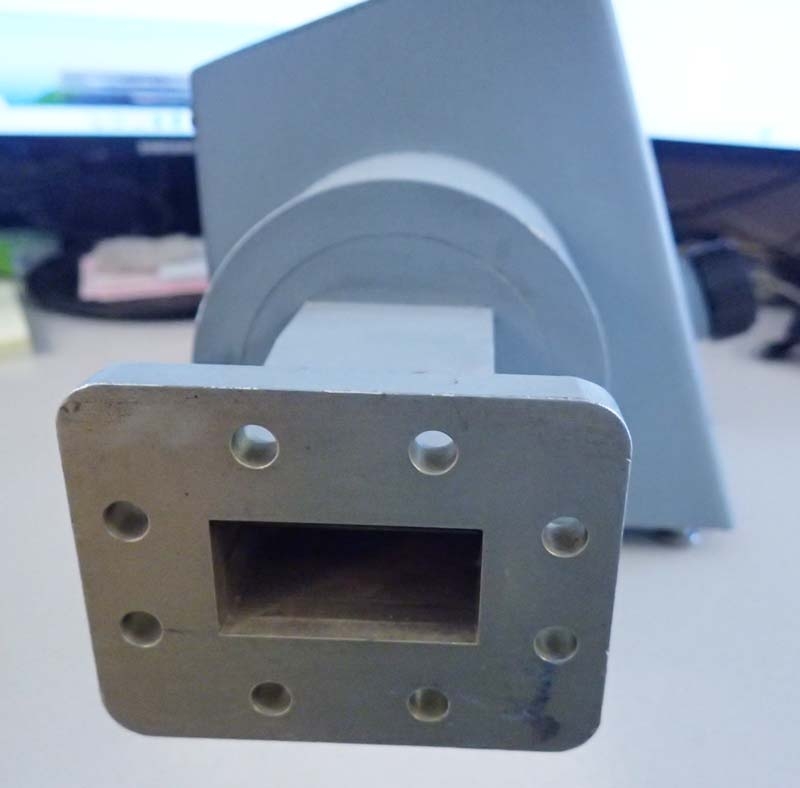

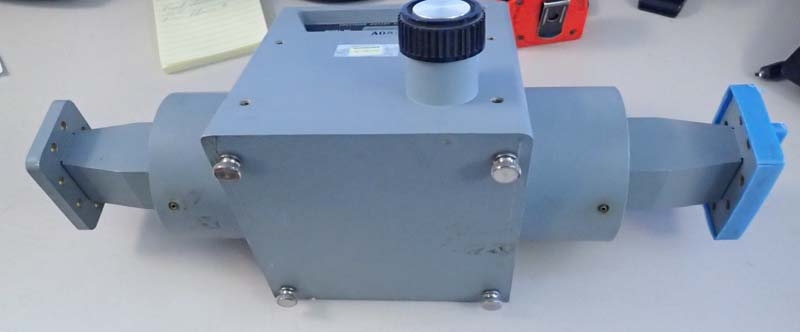

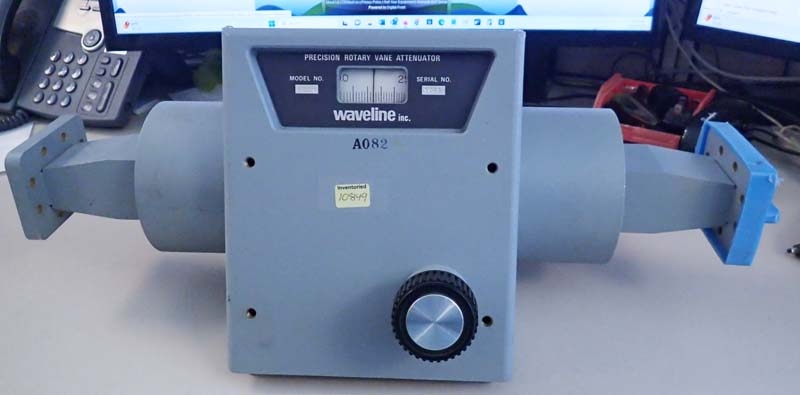

Waveline 5922R, Rack Mount Direct Reading Rotary Vane Attenuator, 0-60dB
sku108491 — low stock
$615.00CAD
By Waveline
<p> General Specifications: Attenuation Range. . . 0 to 60.0 dB VSWR . . . . . . . . . 1.15 maximum Accuracy: 0 to 50 dB. . . . . . .+/-2% of dB reading or +/-0.1 dB, whichever is greater 50 to 60 dB . . . . . .Usable as reference only Insertion Loss. . . . .1.0 dB maximum (0.5 dB typical)<…
Description
<p> General Specifications:
Attenuation Range. . . 0 to 60.0 dB
VSWR . . . . . . . . . 1.15 maximum Accuracy: 0 to 50 dB. . . . . . .+/-2% of dB reading or +/-0.1 dB, whichever is greater
50 to 60 dB . . . . . .Usable as reference only
Insertion Loss. . . . .1.0 dB maximum (0.5 dB typical)</p>
Attenuation Range. . . 0 to 60.0 dB
VSWR . . . . . . . . . 1.15 maximum Accuracy: 0 to 50 dB. . . . . . .+/-2% of dB reading or +/-0.1 dB, whichever is greater
50 to 60 dB . . . . . .Usable as reference only
Insertion Loss. . . . .1.0 dB maximum (0.5 dB typical)</p>
