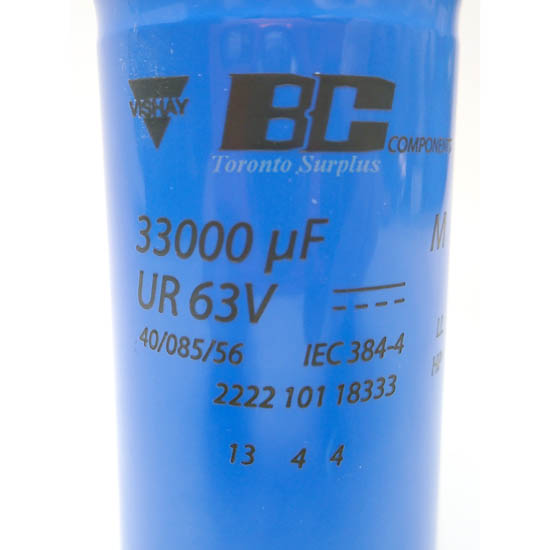

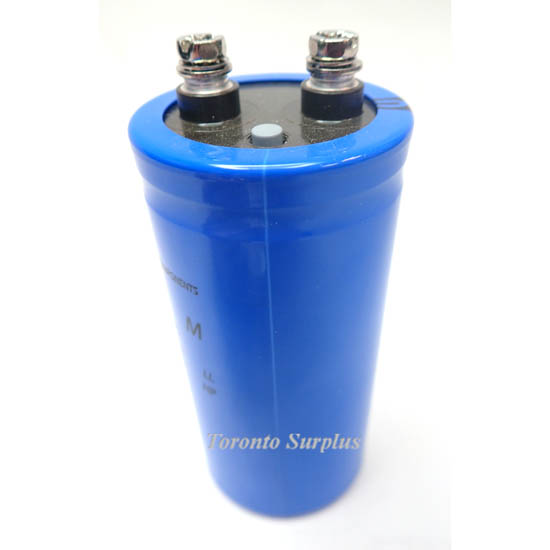

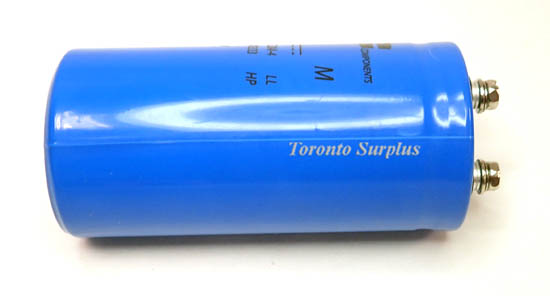

VISHAY / BC COMPONENTS ALUMINUM CAPACITOR, 33000uF 63V, NOS
sku118292 — low stock
Request a Quote
By Vishay
<p> *Brand New*  Vishay - BC Components 101 PHR-ST Aluminum Capacitors Power High Ripple Current Screw Terminals</p><ul><li>33,000 uf (µf)</li><li>63V</li><li>D x L = 50mm x 105mm</li><li>Standard M5 disc screw terminal</li></ul><p> FEATURES</p><ul><li>Polarized aluminum electrolytic capac…
Description
<p> *Brand New*  Vishay - BC Components 101 PHR-ST Aluminum Capacitors

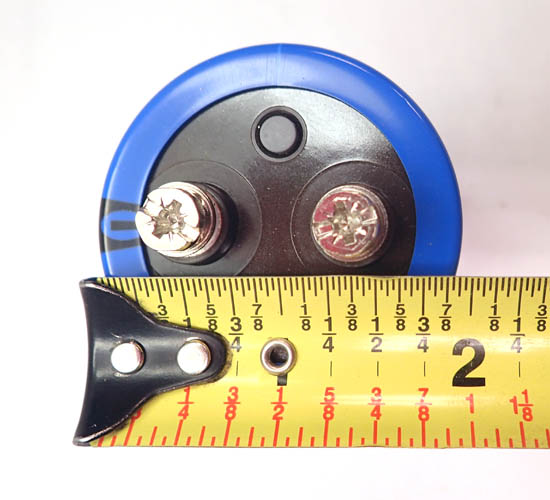

Power High Ripple Current Screw Terminals</p><ul><li>33,000 uf (µf)</li><li>63V</li><li>D x L = 50mm x 105mm</li><li>Standard M5 disc screw terminal</li></ul><p>
FEATURES</p><ul><li>Polarized aluminum electrolytic capacitors, non-solid electrolyte</li><li>Large types, cylindrical aluminum case, insulated with a blue sleeve</li><li>Pressure relief in the sealing</li><li>Long useful life</li><li>Compliant to RoHS directive 2002/95/EC</li></ul><p>
APPLICATIONS</p><ul><li>Buffering and Filtering</li><li>Motor Drives, Inverters, UPS (Uninteruptible Power Supplies) and Traction Systems</li><li>Pulsed Power Supplies</li></ul><p>Rated capacitance at 100 Hz, tolerance ± 20 % = 33,000µF
Rated RMS ripple current at 100 Hz, 85 °C = 12.9A
Maximum equivalent series resistance at 100 Hz = 14mΩ
Maximum impedance at 20 kHz = 12mΩ</p>
Power High Ripple Current Screw Terminals</p><ul><li>33,000 uf (µf)</li><li>63V</li><li>D x L = 50mm x 105mm</li><li>Standard M5 disc screw terminal</li></ul><p>
FEATURES</p><ul><li>Polarized aluminum electrolytic capacitors, non-solid electrolyte</li><li>Large types, cylindrical aluminum case, insulated with a blue sleeve</li><li>Pressure relief in the sealing</li><li>Long useful life</li><li>Compliant to RoHS directive 2002/95/EC</li></ul><p>
APPLICATIONS</p><ul><li>Buffering and Filtering</li><li>Motor Drives, Inverters, UPS (Uninteruptible Power Supplies) and Traction Systems</li><li>Pulsed Power Supplies</li></ul><p>Rated capacitance at 100 Hz, tolerance ± 20 % = 33,000µF
Rated RMS ripple current at 100 Hz, 85 °C = 12.9A
Maximum equivalent series resistance at 100 Hz = 14mΩ
Maximum impedance at 20 kHz = 12mΩ</p>
