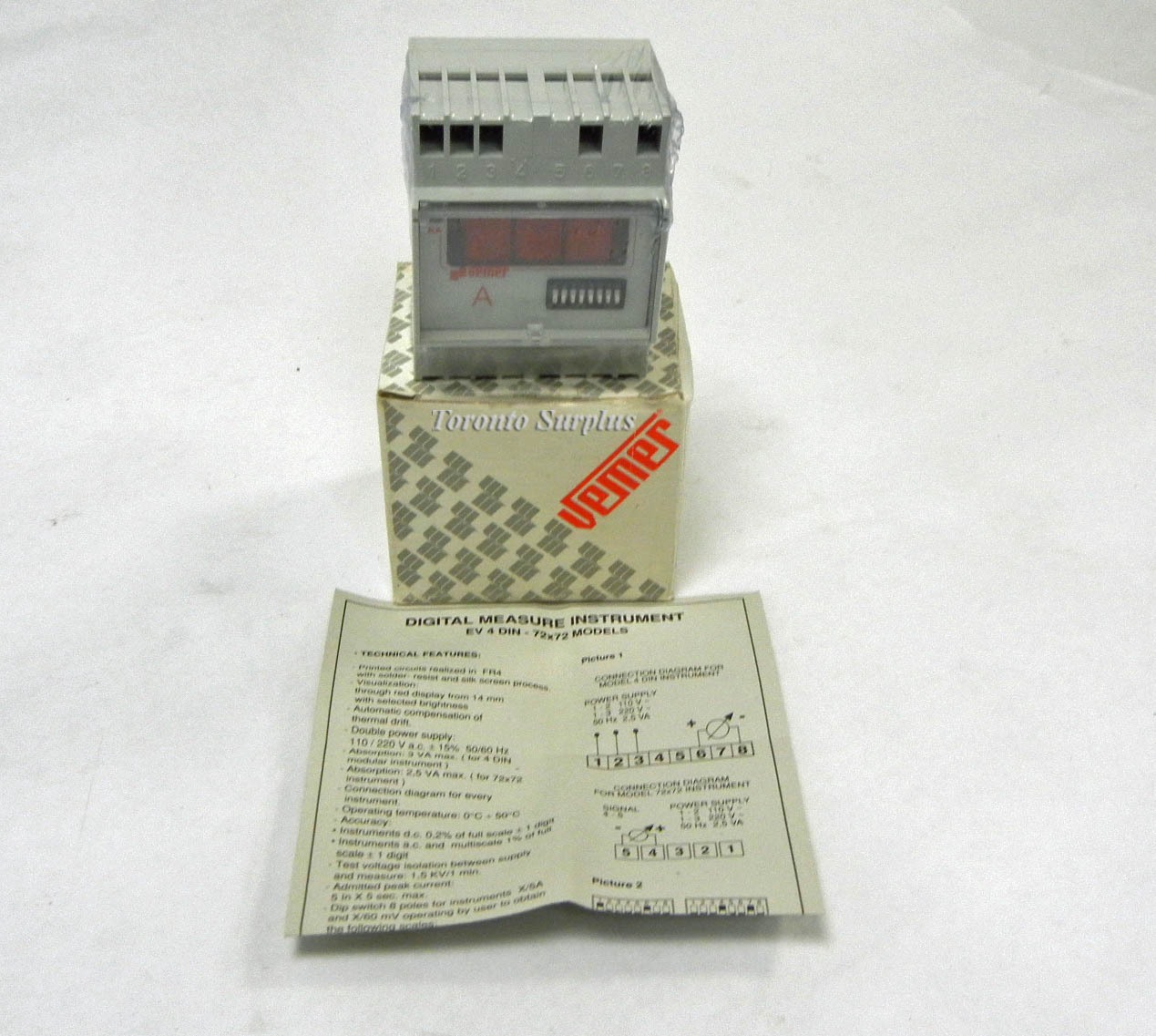

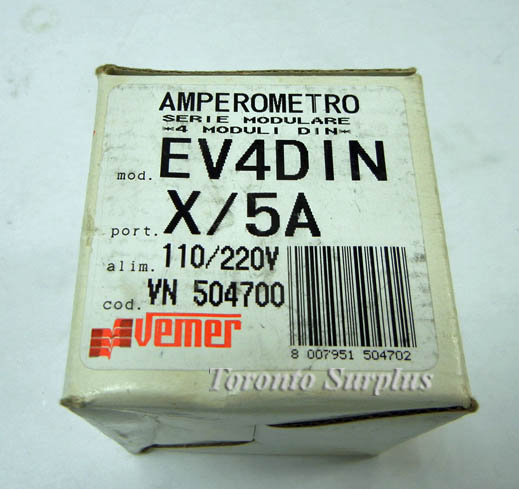

Vemer EV4-DIN / EV4DIN Amperemeter, 110 / 220V BNIB
sku103767 in stock
Request a Quote
By Vemer
<p> Technical Features:</p><ul><li>Printed Circuits realized in FR4 with solder - resist and silk screen process.</li><li>Visualization through red disp[lay from14mm with selected brightness.</li><li>Auotmatic compensation of thermal drift.</li><li>Double Power supply: 110/220V AC ±15% 50/60 Hz…
Description

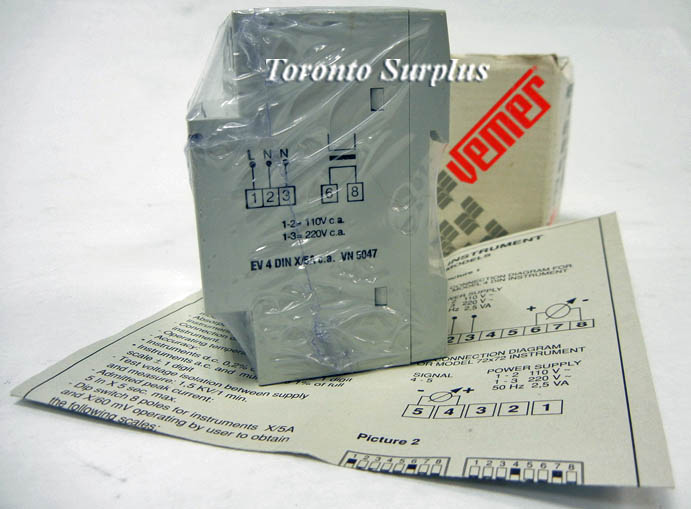

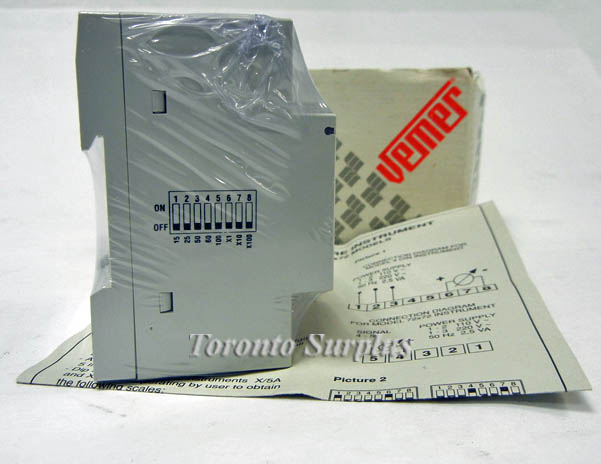

<p> Technical Features:</p><ul><li>Printed Circuits realized in FR4 with solder - resist and silk screen process.</li><li>Visualization through red disp[lay from14mm with selected brightness.</li><li>Auotmatic compensation of thermal drift.</li><li>Double Power supply: 110/220V AC ±15% 50/60 Hz</li><li>Absorption 3 VA max ( for 4 DIN modular instrument )</li><li>Absorption 2,5 VA max ( for 72 x 72 instrument )</li><li>Connection Diagram for every instument.</li><li>Operating temperature 0°C + 50° C</li><li>Instruments d.c. 0,2% of full scale ± 1 digit</li><li>Instruments a.c. and multiscale 1% of full scale ± 1 digit</li><li>Test voltage isolation between supply and measure  1,5 KV/1 min</li><li>Admitted peak Current  5 In 5 sec max</li><li>Dip switch , 8 poles for instruments X/5A and X/60 mV operating by user to obtain the following scales:</li><li>X5/A on TA 15 -25 -50 -60 -100 - 150 -250 -500 -600 -1000A</li><li>1,5 - 2,5 -5-6 -10 KA</li></ul><p> </p>
