Toyota IPUP T100L / VP080-00000 Roots Dry Pump V3.3 with Controller & Edwards EMF10 / A462 26 000 / A46226000 Oil Mist Filter
Toyota IPUP T100L / VP08000000 Dry Pump V3.3 with Remote Controller & Edwards Oil Mist Filter
The IPUP T100L is a roots type vacuum pump that rotates a pair of synchronized, timing gears. The pump is driven by a 3-phase induction motor. Bearings and gears on the high pressure side are lubricated by fluoric type oil. Nitrogen is not required for shaft seals. Ceramic balls are used in the bearings on the low pressure side which are lubricated by fluoric type grease. The pump and motor are equipped with an indirect cooling system.
This product has following features including high reliability and low running cost in addition to low power consumption taking the global ecology into account and specifications that ensure customer satisfaction.
Features:
- Extremely Quiet (Less than 55dB(A))
- Automatic restart in case of 1 second power loss
- Low power consumption
- Low vibration
- Fast
- Low operation cost
Technical Data:
Peak Pumping Speed: 1670 l/min
Ultimate Pressure: .009 Torr
Power Consumption: 1.3 kW

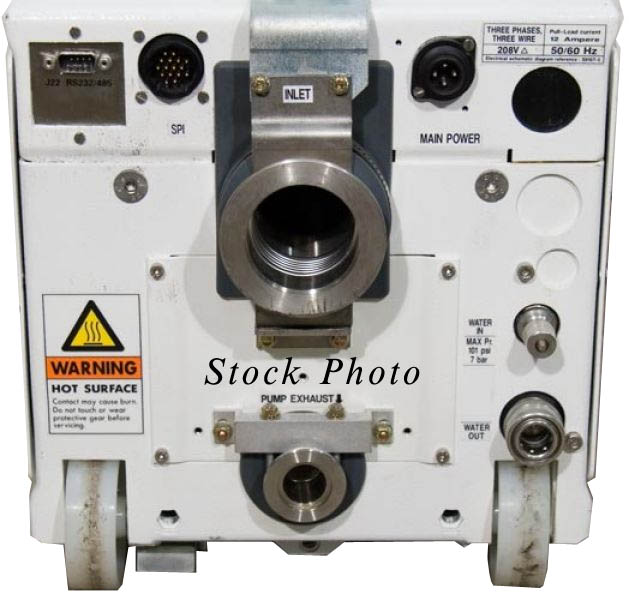

Inlet Flange: NW50
Exhaust Flange: NW25
Power Supply: 3ph, 208V, 50/60Hz
Current Rating: 12A
Weight: 104 Kg / 230 lbs
Edwards Oil Mist Filter
EMF10
Code No. A462 26 000
