Tektronix 7104 1GHZ Oscilloscope Mainframe, OPT 02 & 03, 7A19 7B92 7B15 Plug Ins - Part/Not Working
sku38691 — low stock
$1,250.00CAD
By Tektronix
The 7104 is a 1 GHz realtime mainframe oscilloscope with outstanding writing speed which means excellent single-shot capability, with trace brightness about one thousand times that of conventional oscilloscopes. Any single-shot signal within the 1GHz bandwidth can be seen directly on the CRT in aver…
Description

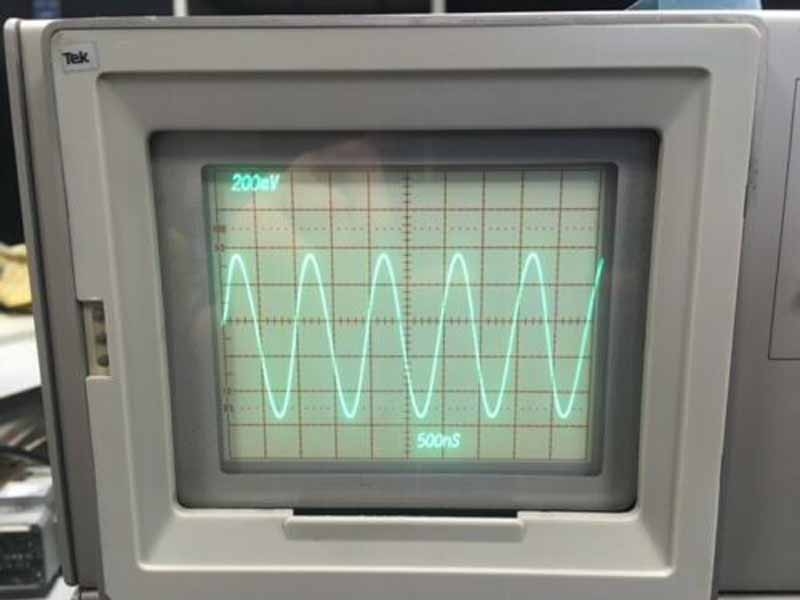

The 7104 is a 1 GHz realtime mainframe oscilloscope with outstanding writing speed which means excellent single-shot capability, with trace brightness about one thousand times that of conventional oscilloscopes. Any single-shot signal within the 1GHz bandwidth can be seen directly on the CRT in average room light.
FEATURES & SPECIFICATIONS
- Displays fast transients and lo repitition rate signals under normal lighting
- Bandwidth: 1 GHz Bandwidth, (350 ps Rise Time) at 10 mV/Div
- 200 ps/Div Fastest Calibrated Sweep Rate
- 350 MHz Horizontal Brandwith
- Frequency Response: 1 GHz
- Channels: 2 Vertical & 2 Horizontal
- Display Modes: A, Alt, Chop, B
- Power Input: 90-132, 180-250VAC; 48-440 Hz</li

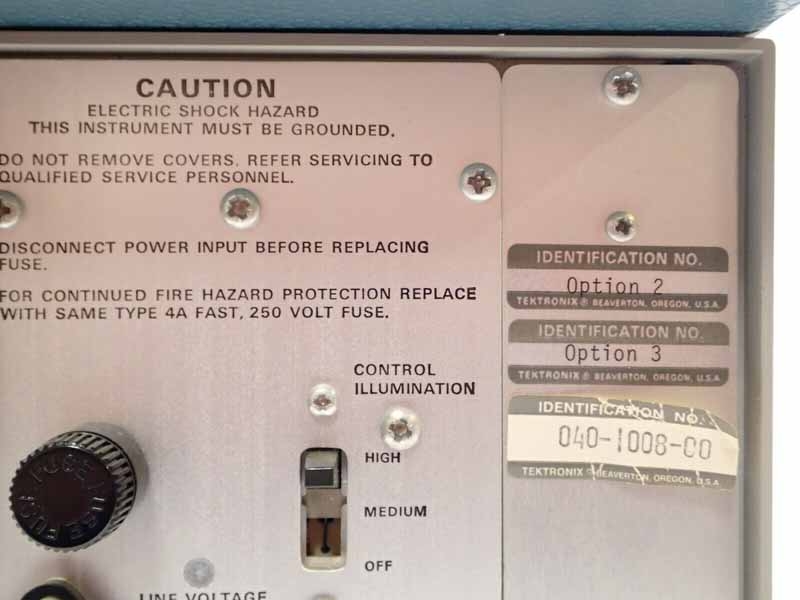

Option 02: X-Y Horizontal Compensation
Option 03: EMC Capability
NOTE: Plug-ins included are 7A19, 7B92, 7B15
