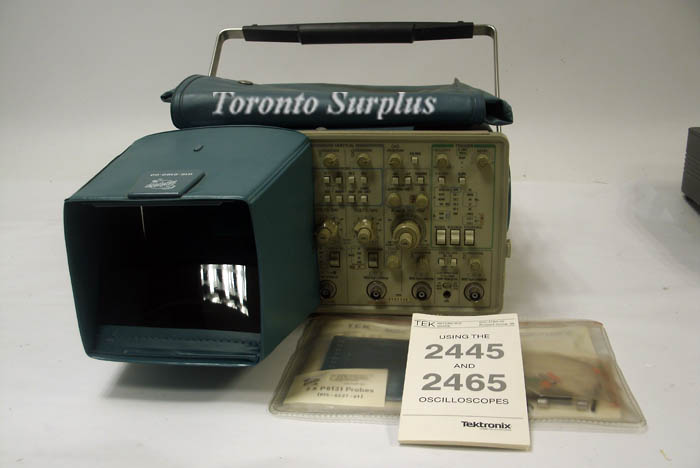

Tektronix 2465 Oscilloscope 300MHz, OPT 4Z & 05 with Service Instruction Manual

Description

<p>&#160;The Tektronix 2465 oscilloscope is a graph-displaying device – it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis.</p> <p>The Tektronix 2465 oscilloscope's simple graph can tell you many things about a signal, such as: the time and voltage values of a signal, the frequency of an oscillating signal, the “moving parts” of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to, other portions, whether or not a malfunctioning component is distorting the signal, how much of a signal is direct current (DC) or alternating current (AC) and how much of the signal is noise and whether the noise is changing with time.</p><p>Bandwidth: 300MHz
Rise time: 1.17ns
No. of channels: 4ch</p><p>Option 05 = Video Waveform Measurement System</p><p>Option 4Z = ???</p><p>&#160;</p>
