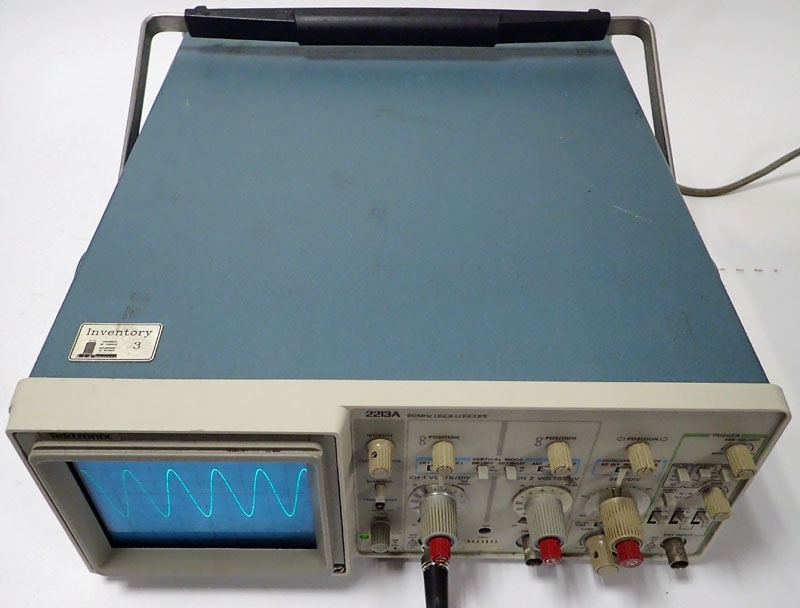

Tektronix 2213A - 60 MHz Dual Trace DC Oscilloscope

Description

Features: Rugged and Lightweight Design Dual-Channeled Sharply Defined Trace on 80- by 100 mm Cathode-Ray Tube Vertical and Horizontal Systems Stable Triggering Over the Full Bandwidth Maximum Sweep Speed to 5 ns per Division The Tektronix 2213A 60 MHz Oscilloscope is a rugged, lightweight, dual-channel 60 MHz instrument that features a bright, sharply defined trace on an 80- by 100 mm cathoderay tube (crt). Its vertical system supplies calibrated deflection factors from 2 mV per division to 5 V per division. Trigger circuits enable stable triggering over the full bandwidth of the vertical system. The horizontal system provides calibrated sweep speeds from 0.5 s per division to 50 ns per division, along with a delayed-sweep feature. A X I0 magnifier circuit extends the maximum sweep speed to 5 ns per division when the SEC/DIV switch is set to 0.05 micros per division.
