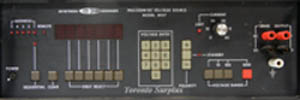

Systron Donner M107 Precision DC Voltage Source, 1 μV to 1 kV, 50 mA max, 120/240VAC
sku109281 — low stock
Request a Quote
By Systron Donner
<p> Systron Donner M107 precision DC voltage source. The M107 has programmable or manual control of output voltage, polarity, and range. It has 6 digits of resolution and ±0.002% accuracy on all ranges. Front and rear panel outputs make it easy to use on a bench or in a rack.   Features:<…
Description
<p> Systron Donner M107 precision DC voltage source. The M107 has programmable or manual control of output voltage, polarity, and range. It has 6 digits of resolution and ±0.002% accuracy on all ranges. Front and rear panel outputs make it easy to use on a bench or in a rack.

Features:</p><ul><li>Voltage output: from 1 μV to 1 kV, 50 mA max., with ±0.0001% regulation (line or load).</li><li>Isolation DC output: up to ±500 Vdc.</li><li>Polarity selection: +, -, and standby (short circuit across output terminals)</li><li>Output Terminals: five terminals on the front panel and five pin connector on the rear panel (2) DC output, (2) sense; (1) chassis ground</li><li>IEEE-488 Interface</li><li>Manual control of output voltages, polarity, range and current via the front panel</li><li>Six digits of resolution</li><li>120/240VAC</li></ul>

Features:</p><ul><li>Voltage output: from 1 μV to 1 kV, 50 mA max., with ±0.0001% regulation (line or load).</li><li>Isolation DC output: up to ±500 Vdc.</li><li>Polarity selection: +, -, and standby (short circuit across output terminals)</li><li>Output Terminals: five terminals on the front panel and five pin connector on the rear panel (2) DC output, (2) sense; (1) chassis ground</li><li>IEEE-488 Interface</li><li>Manual control of output voltages, polarity, range and current via the front panel</li><li>Six digits of resolution</li><li>120/240VAC</li></ul>
