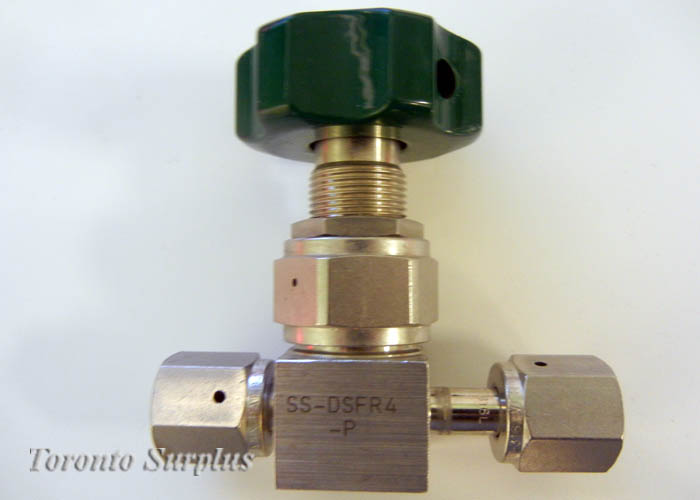

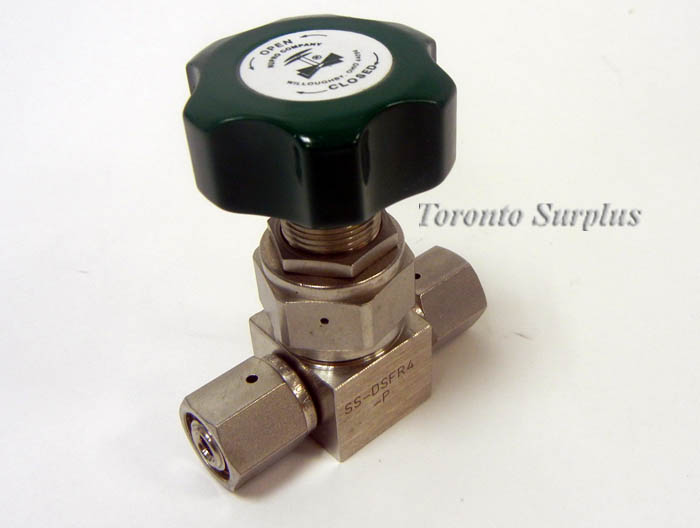

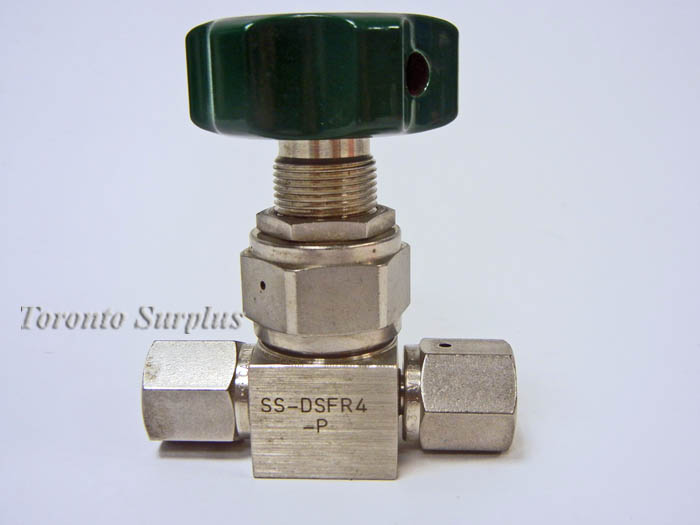

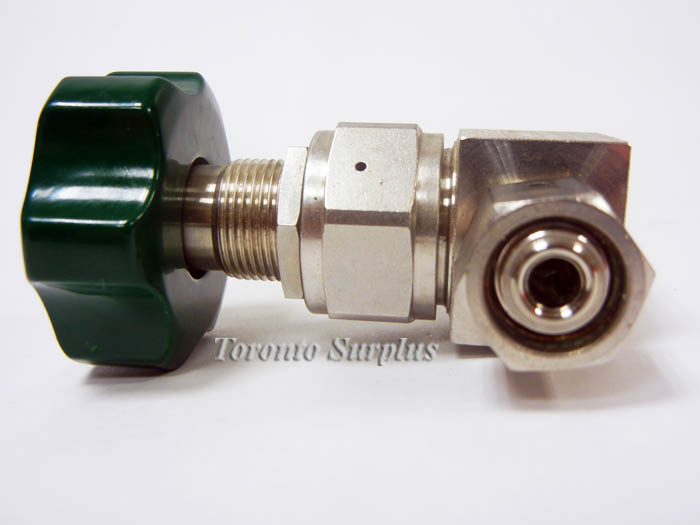

Swagelok SS-DSFR4-P High-Purity High-Pressure Diaphragm-Sealed Valve, 1/4 in. Female
sku111251 — low stock
10% Store Wide!Save $39.90
$359.10CAD$399.00
By Swagelok
<p> Actuator Type: Manual</p><p>Body Material: Stainless Steel</p><p>Body Type: Straight</p><p>Flow Pattern: Straight ( 2 way )</p><p>End Connection 1 Size : 1/4 inch</p><p>End Connection 1 Gender: Female VCR</p><p>End Connection 2 Size: 1/4 inch</p><p>End Connection 2 Gender: Female VCR</p><p>…
Description
<p> Actuator Type: Manual</p><p>Body Material: Stainless Steel</p><p>Body Type: Straight</p><p>Flow Pattern: Straight ( 2 way )</p><p>End Connection 1 Size : 1/4 inch</p><p>End Connection 1 Gender: Female VCR</p><p>End Connection 2 Size: 1/4 inch</p><p>End Connection 2 Gender: Female VCR</p><p>Flow Coefficient Cv: 0.3</p><p>Differential Back Pressure: 1500 PSIG 70 F / 103 Bar 20C
</p><p>Max Temperature with Pressure Rating: 250°F @ 2800 PSIG / 121° @ 192 Bar</p><p>Room Temperature Pressure Rating: 3500 PSIG @ 70°F / 241 Bar @ 20°C</p>
</p><p>Max Temperature with Pressure Rating: 250°F @ 2800 PSIG / 121° @ 192 Bar</p><p>Room Temperature Pressure Rating: 3500 PSIG @ 70°F / 241 Bar @ 20°C</p>
