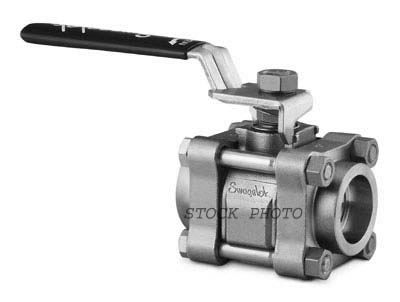

Swagelok SS-67TSW24P 4-Bolt Stainless Steel 3-Piece 60 Series Ball Valve BRAND NEW / NOS rm

Swagelok SS-67TSW24P 4-Bolt Stainless Steel 3-Piece 60 Series Ball Valve BRAND NEW / NOS rm

Reinforced PTFE Seats, 1 1/2 in. Pipe Socket Weld

Flow Pattern: Straight (2-way)

Service Class: General

Size: 1 1/2 in. Nominal - 67 Series

Valve Material: Stainless Steel

End Connection 1 Size: 1 ½ inches

End Connection 1 Type: Pipe socket weld

End Connection 2 Size: 1 1/2 inches

End Connection 2 Type: Pipe socket weld

Handle Color: Black

Handle Style: Lever

Ball/Stem Material: Stainless Steel

Cleaning: Swagelok® Standard cleaning SC-10

Fastener Material: 316 Stainless Steel

Flange Seal Material: Fluorocarbon FKM

Lubricant: Dow111 and WL8

Packing: Reinforced PTFE

Seat Material: Reinforced PTFE

Seat Spring Material: 316 Stainless Steel

Stem Bearing Material: Alloy X750

Testing: Testing according to WS-22

Max Temperature Pressure Rating: 450°F @ 100 PSIG /232°C @ 6.8 BAR

Room Temperature Pressure Rating: 1500 PSIG @ 100°F /103 @ BAR 37°C
