SRS Stanford Research DG535 Digital Delay Generator / Pulse Generator with OPT 01 & OPT 03 TCXO
sku122671 — low stock
10% Store Wide!Save $295.00
$2,655.00CAD$2,950.00
By SRS
<p>The DG535 Digital Delay and Pulse Generator provides four precisely timed logic transitions or two independent pulse outputs. The delay resolution on all channels is 5 ps and the channel-to-channel jitter is less than 50 ps. Front-panel BNC outputs deliver TTL, ECL, NIM or variable level (-3 to +…
Description

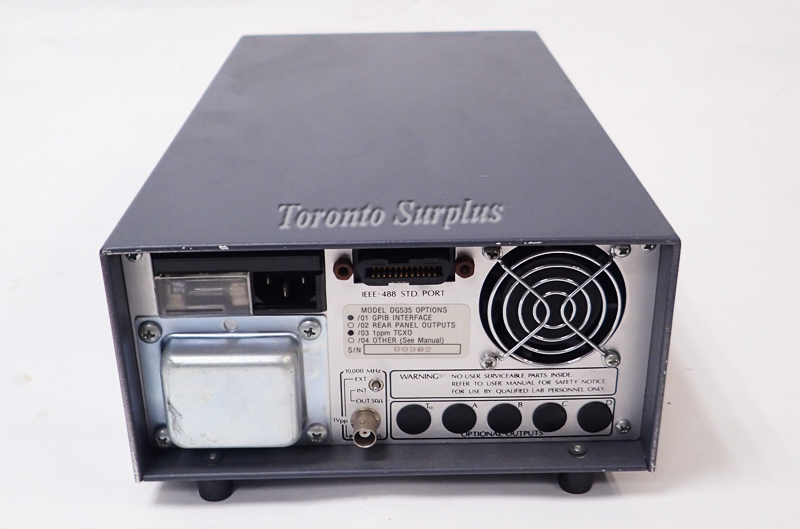

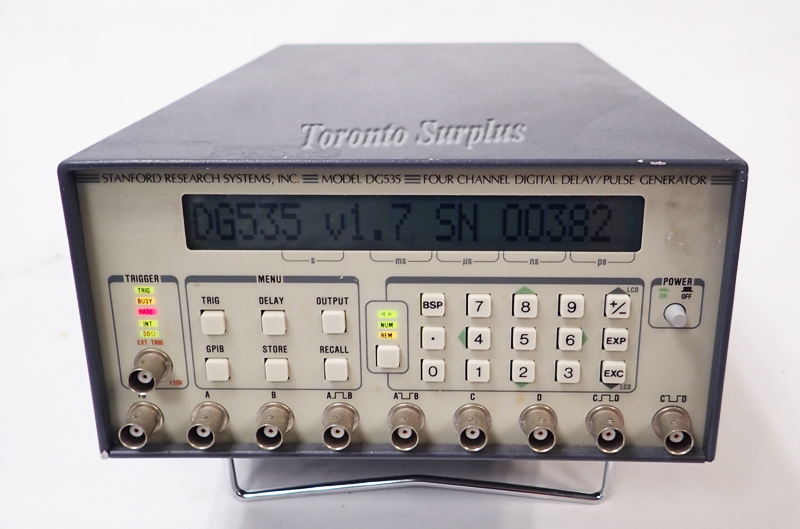

<p>The DG535 Digital Delay and Pulse Generator provides four precisely timed logic transitions or two independent pulse outputs. The delay resolution on all channels is 5 ps and the channel-to-channel jitter is less than 50 ps. Front-panel BNC outputs deliver TTL, ECL, NIM or variable level (-3 to +4 V) pulses into 50 W or high impedance loads. The high accuracy, low jitter and wide delay range make the DG535 ideal for laser timing systems, automated testing and precision pulse applications.</p><ul style="list-style-position:" text-align:="">FEATURES: <li>Four independent delay channels</li><li>Two fully defined pulse channels</li><li>5 ps delay resolution</li><li>50 ps rms jitter</li><li>Adjustable amplitude and offset</li><li>Delays up to 1000 seconds</li><li>1 MHz maximum trigger rate</li></ul><p> </p><ul style="list-style-position:" text-align:=""><li>OPT 01 = GPIB Interface</li><li>OPT 03 = 1ppm TCXO</li></ul>
