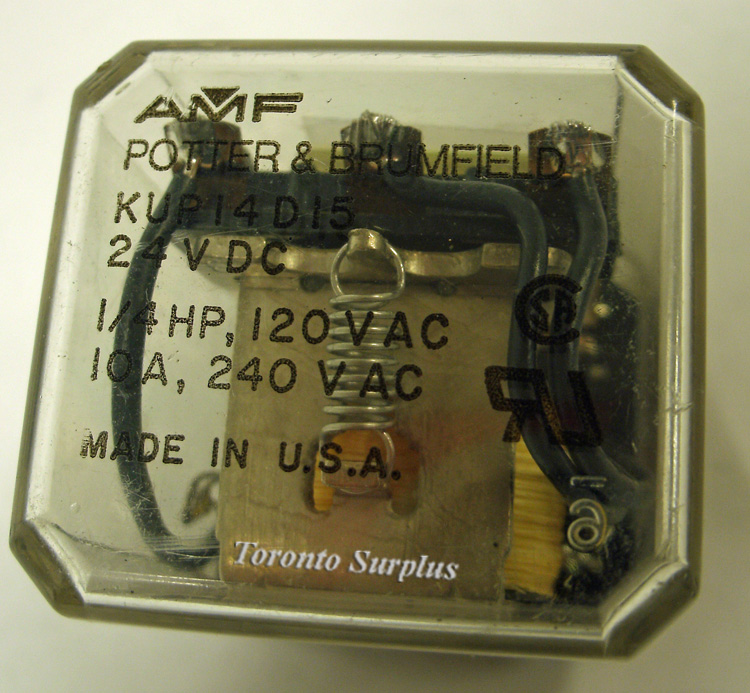

Potter & Brumfield KUP-14D15 / KUP14D15 10A 240VAC General Purpose Relay

Description

<p>
Status &#160;&#160;&#160; ACTIVE
&#160;</p><p>Sealing &#160;&#160;&#160; DUST PROOF
&#160;</p><p>Coil Power &#160;&#160;&#160; 1200 mW
&#160;</p><p>Relay Action &#160;&#160;&#160; MOMENTARY
&#160;</p><p>Relay Function &#160;&#160;&#160; 3PDT
&#160;</p><p>Coil Resistance &#160;&#160;&#160; 472 ohm
&#160;</p><p>Electrical Life &#160;&#160;&#160; 10000 Cycle(s)
&#160;</p><p>Manufacturer Series &#160;&#160;&#160; KUP
&#160;</p><p>Coil Curre &#160;&#160;&#160; 0.0500 Ant(DC)-</p><p>MaxCoil Voltage(DC)-Max &#160;&#160;&#160; 24 V
&#160;</p><p>Contact Current(AC)-Max &#160;&#160;&#160; 10 A
</p><p>Contact Current(DC)-Max &#160;&#160;&#160; 10 A
</p><p>Contact Voltage(AC)-Max &#160;&#160;&#160; 120 V
</p><p>Contact Voltage(DC)-Max &#160;&#160;&#160; 28 V
</p><p>Coil Operate Voltage(DC) &#160;&#160;&#160; 18 V
</p><p>Operating Temperature-Max &#160;&#160;&#160; 70 Cel
</p><p>Operating Temperature-Min &#160;&#160;&#160; -45 Cel
</p><p>Body Breadth &#160;&#160;&#160; 35.7 mm
</p><p>Body Height &#160;&#160;&#160; 48.4 mm
</p><p>Body Length or Diameter &#160;&#160;&#160; 38.9 mm
</p><p>Mounting Feature &#160;&#160;&#160; PANEL MOUNT
</p><p>Operate Time &#160;&#160;&#160; 15 ms&#160;</p>

Specifications
