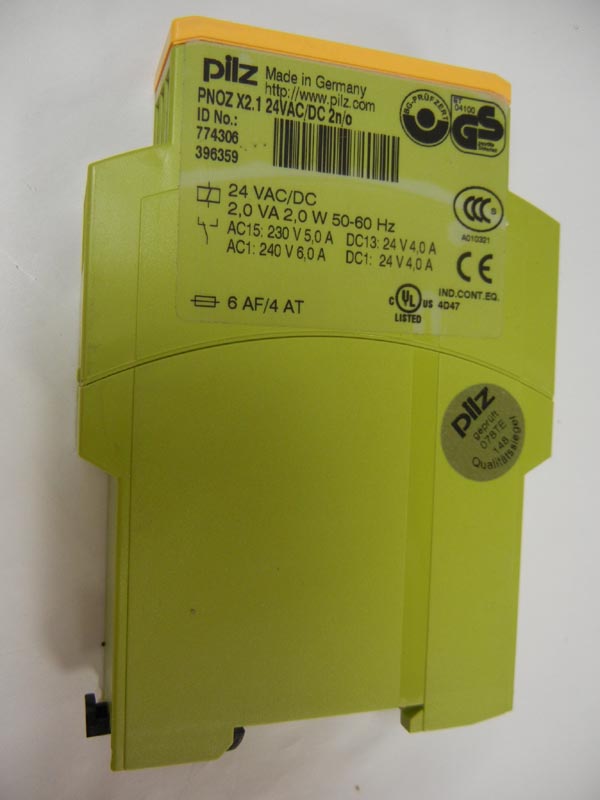

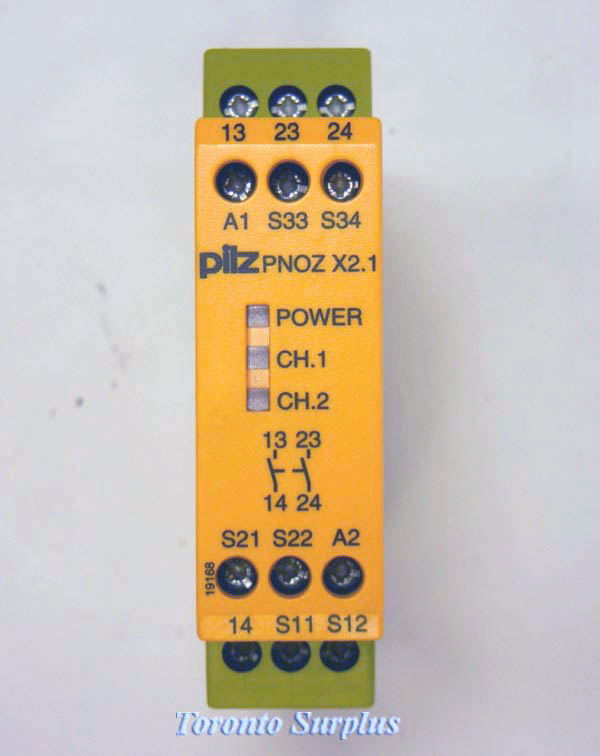

Pilz PNOZ X2.1 Emergency Stop Relays, Safety Gate Monitors, 24V AC/DC

Pilz PNOZ X2.1 Emergency Stop Relays, Safety Gate Monitors, 24V AC/DC

Features

• Dual-channel operation which detects shorts across the input contacts
• Supply voltage: 24 VAC/DC
• PNOZ X2: monitored manual reset only
• PNOZ X2.2: several units may be started in parallel using one reset button

Description

• 22.5 mm, S-95 housing, DIN-Rail
• mounting
• Positive-guided relay outputs:
• 2 safety contacts (N/O)
• Connections for E-STOP button or safety gate limit switch and reset button
• Detects shorts across the input contacts
• LEDs for channel 1, channel 2 and power
• Increase in the number of safety contacts available by connecting expander modules
• PNOZ X2.1 only: automatic reset
• PNOZ X2.2 only: as the PNOZ X2 but any number of units can be connected in parallel to one or more reset buttons

Operations

• Single-channel operation
• Dual-channel operation
• Manual reset
• PNOZ X2 only: monitored manual reset
