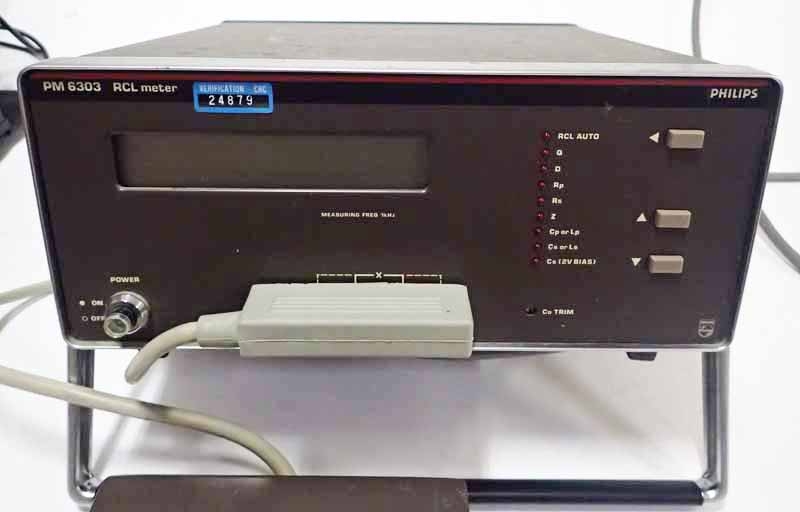

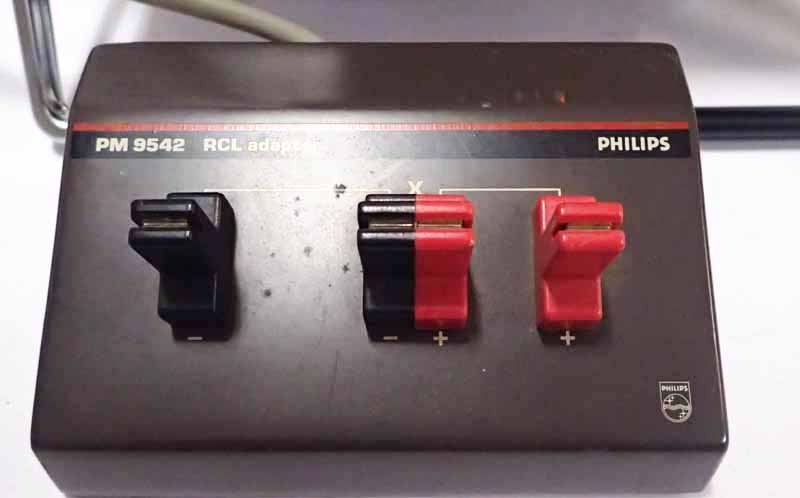

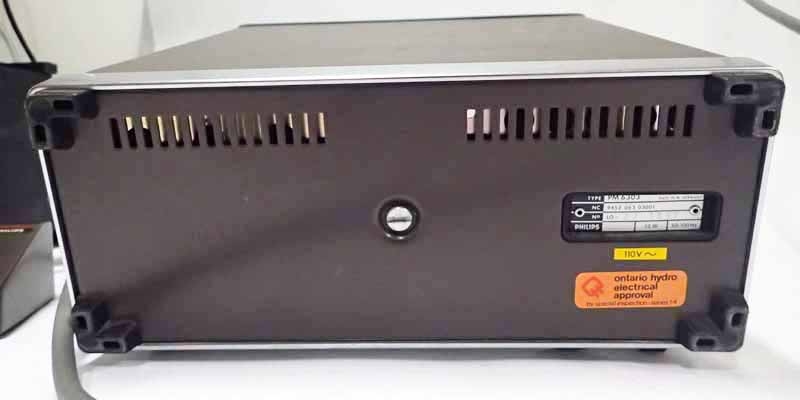

Philips PM6303 RCL Meter with PM9542 RCL Adapter
sku100121 — low stock
Request a Quote
By Philips
<p>The PM6303 automatic RCL meter will rapidly determine the value, electric dimension and equivalent - circuit of passive components to a very high order of accuracy, over a wide range. The measure value, together with the appropriate unit of measurement and the equivalent circuit-graphics…
Description
<p>The PM6303 automatic RCL meter will rapidly determine the value, electric dimension and equivalent - circuit of passive components to a very high order of accuracy, over a wide range. The measure value, together with the appropriate unit of measurement and the equivalent circuit-graphics are easily read on a large 4 digit LCD.</p><ul style="list-style-position:" text-align:="">SPECIFICATIONS: <li>Display: Lg 18mm 4 digit LCD</li><li>Dimension Indications: Ohm kOhm MOhm pF nF µF mF µH mH H kH</li><li>Out of Range Indication: 4 middle digit segments flashing
Measuring Ranges:</li><li>Resistance: Rp Rs Z 0.000 Ohm to 200 MOhm</li><li>Capacitance: Cp Cs 0.0 pF to 100 mF</li><li>Inductance: Lp Ls 0.0 µH to 32 kH</li><li>Quality Factor: Q 0.002 to 500
Maximum Resolution: 1 mOhm 0.1 pF 0.1 µH</li></ul><p>Made in Germany.</p>
