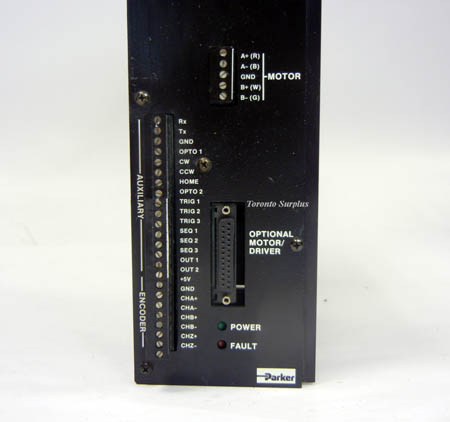

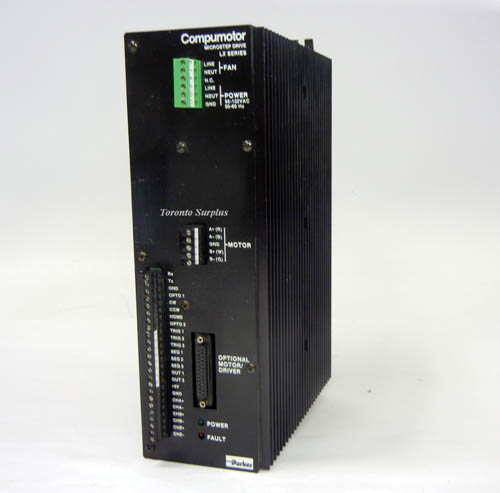

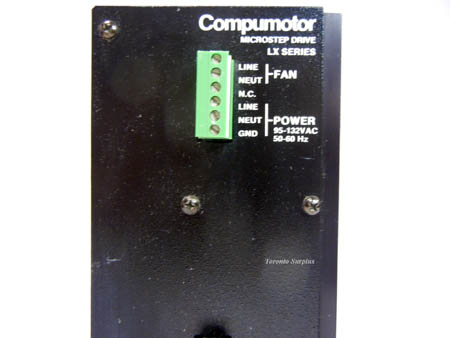

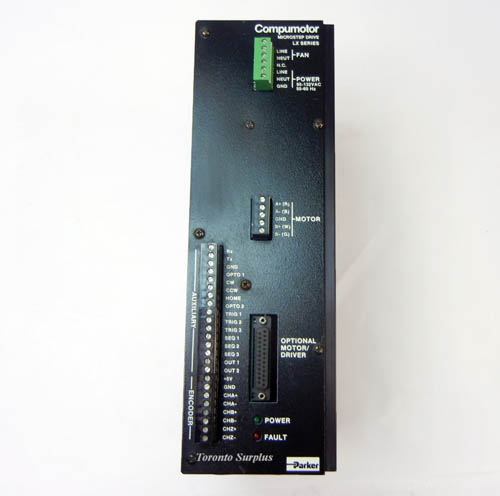

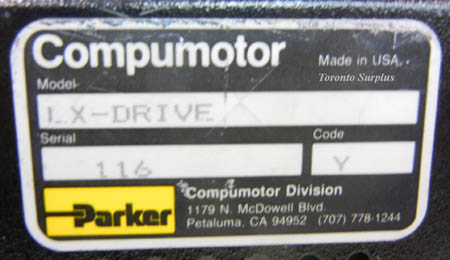

Parker Compumotor LX Series Microstepping Drive
sku113091 — low stock
Request a Quote
By Compumotor
<p> LX Series Packaged Microstepping Linear Motor/Indexer/Drive Systems </p><ul><li>Forces up to 20 pounds (89N)</li><li>High voltage (170V) operation for high-speed performance</li><li>Drive provides 0-3 Amps/phase bipolar</li><li>Microprocessor controlled microstepping provides smooth operati…
Description
<p> LX Series Packaged Microstepping Linear Motor/Indexer/Drive Systems
</p><ul><li>Forces up to 20 pounds (89N)</li><li>High voltage (170V) operation for high-speed performance</li><li>Drive provides 0-3 Amps/phase bipolar</li><li>Microprocessor controlled microstepping provides smooth operation</li><li>Built-in RS-232C indexer with X-Series command language superset</li><li>Up to 8 units can be daisychained on a single RS-232C Port</li><li>1800 characters of mnon-volatile memory can store up to 40 motion programs</li><li>Automatic power-up motion program execution</li><li>Motion sequence selection via RS-232C or external switch closures</li><li>Sequence upload, download and automatic verify</li><li>Automatic acceleration roll-off for maximum force utilization and shorter move times</li><li>Flexible acceleration profiling for customized acceleration profiles</li><li>Transmits messages out the RS-232C port for control of other RS-232C controllers or for output to message displays</li><li>Returns message giving calculated move time of the currently defined move</li><li>Protective Circuit: Short circuit, brownout and overtemperature protected</li><li>Packaged system with drive, indexer, power supply, heatsink</li><li>95-135VAC, 50/60Hz input power</li><li>Interface Capabilities</li><li>Nine optically isolated inputs</li><li>Two optically isolated programmable outputs</li></ul>
</p><ul><li>Forces up to 20 pounds (89N)</li><li>High voltage (170V) operation for high-speed performance</li><li>Drive provides 0-3 Amps/phase bipolar</li><li>Microprocessor controlled microstepping provides smooth operation</li><li>Built-in RS-232C indexer with X-Series command language superset</li><li>Up to 8 units can be daisychained on a single RS-232C Port</li><li>1800 characters of mnon-volatile memory can store up to 40 motion programs</li><li>Automatic power-up motion program execution</li><li>Motion sequence selection via RS-232C or external switch closures</li><li>Sequence upload, download and automatic verify</li><li>Automatic acceleration roll-off for maximum force utilization and shorter move times</li><li>Flexible acceleration profiling for customized acceleration profiles</li><li>Transmits messages out the RS-232C port for control of other RS-232C controllers or for output to message displays</li><li>Returns message giving calculated move time of the currently defined move</li><li>Protective Circuit: Short circuit, brownout and overtemperature protected</li><li>Packaged system with drive, indexer, power supply, heatsink</li><li>95-135VAC, 50/60Hz input power</li><li>Interface Capabilities</li><li>Nine optically isolated inputs</li><li>Two optically isolated programmable outputs</li></ul>
