Omron E5CK-AA1-500 Digital Controller - Used, Working BUT NO Touchpad Membrane on Front Panel

Description

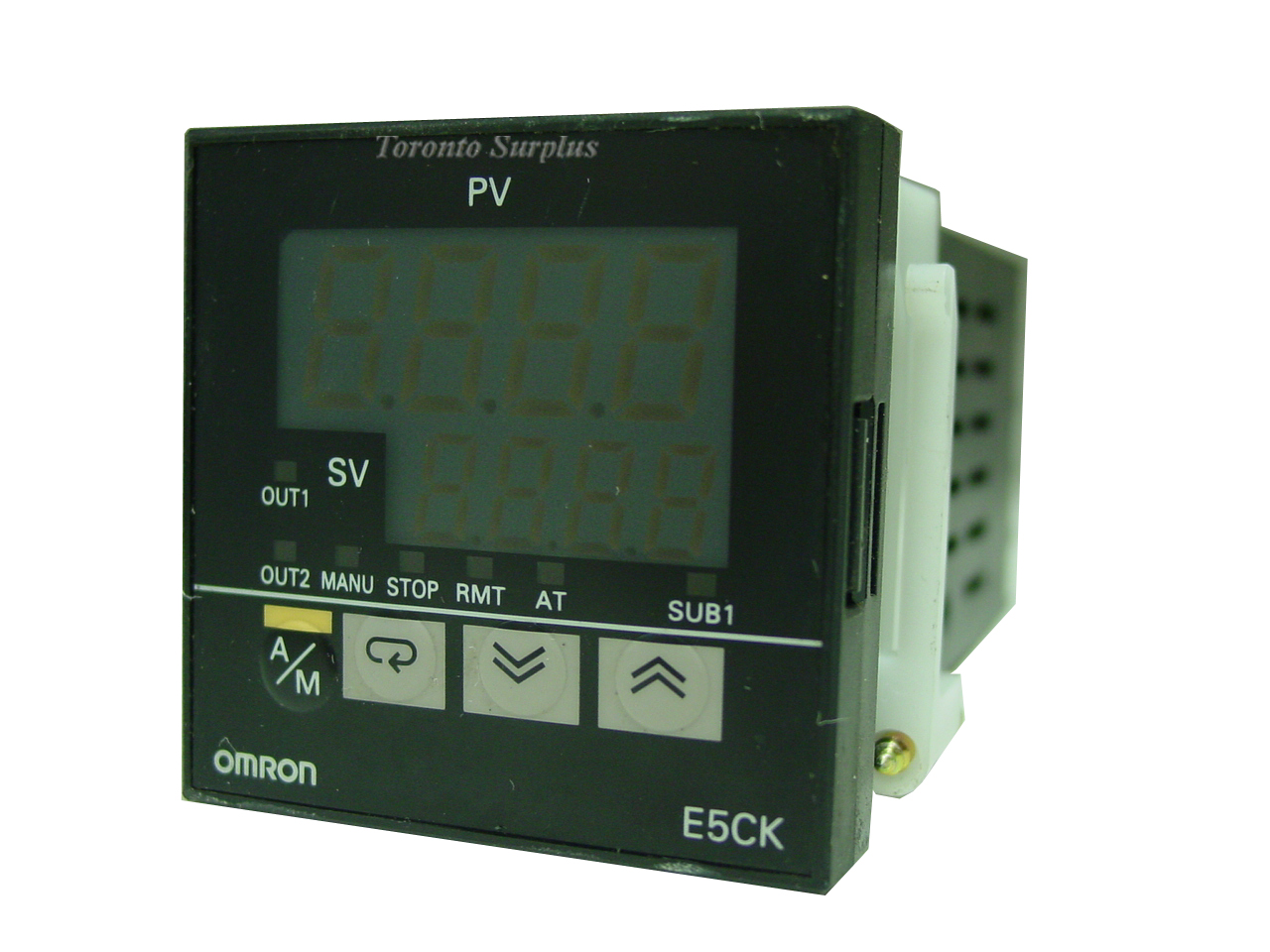

<p><span style="font-size: larger;"><span style="color: rgb(255, 0, 0);">NOTE </span></span>- Used, Working BUT NO Touchpad Membrane on Front Panel.&#160; It looks like the main photo you see, not the second photo</p><p>Features</p><div class="column1"><div class="positionleft"><ul><li>IP66/NEMA4 (indoor use) front face.</li></ul></div></div><div class="column1"><div class="positionleft"><ul><li>Modular structure, one-stock type.</li></ul></div></div><div class="column1"><div class="positionleft"><ul><li>Heating/cooling control.</li></ul></div></div><div class="column1"><div class="positionleft"><ul><li>Serial communications (RS-232C and RS-485).</li></ul></div></div><div class="column1"><div class="positionleft"><ul><li>Temperature and analog inputs.</li></ul></div></div><div class="column1"><div class="positionleft"><ul><li>High-accuracy: 100 ms sampling (for analog input).</li></ul></div></div><div class="column1"><div class="positionleft"><ul><li>Advanced tuning which includes fuzzy self-tuning.</li></ul></div></div><div class="column1"><div class="positionleft"><ul><li>Conforms to international EMC and safety standards.</li></ul></div></div><p>&#160;</p><p><strong class="headline1">Ratings</p><table cellspacing="0" border="0" style="width: 529px; height: 290px" class="tableB01"><tbody><tr><td class="heading left top">Supply voltage:&#160;
</td><td class="left top">100 to 240 VAC, 50/60 Hz</td></tr><tr><td class="heading left top">Power consumption:&#160;
</td><td class="left top">15 VA</td></tr><tr><td class="heading left top">Operating voltage range:&#160;
</td><td class="left top">85% to 110% of rated supply voltage</td></tr><tr><td class="heading left top">Input:&#160;
</td><td class="left top">Thermocouple: K, J, T, E, L, U, N, R, S, B, W, PLII
Platinum resistance thermometer: JPt100, Pt100
Current input: 4 to 20 mA, 0 to 20 mA
Voltage input: 1 to 5 V, 0 to 5 V, 1 to 10 V</td></tr><tr><td class="heading left top">Input impedance:&#160;
</td><td class="left top">Current input: 150 Ω
Voltage input: 1 MΩ min.</td></tr><tr><td class="heading left top">Control output:&#160;
</td><td class="left top">According to Output Unit (see Output Unit Ratings and Characteristics)</td></tr><tr><td class="heading left top">Auxiliary output:&#160;
</td><td class="left top">SPST-NO, 1 A at 250 VAC (resistive load)</td></tr><tr><td class="heading left top">Control method:&#160;
</td><td class="left top">ON/OFF or 2-PID control (with auto-tuning)</td></tr><tr><td class="heading left top">Setting method:&#160;
</td><td class="left top">Digital setting using front panel keys</td></tr><tr><td class="heading left top">Indication method:&#160;
</td><td class="left top">7-segment digital display and LEDs</td></tr><tr><td class="heading left top">Other functions:&#160;
</td><td class="left top">According to Option Unit (see Output Unit Ratings and Characteristics)</td></tr></tbody></table><p>
*Made in Japan</p>
