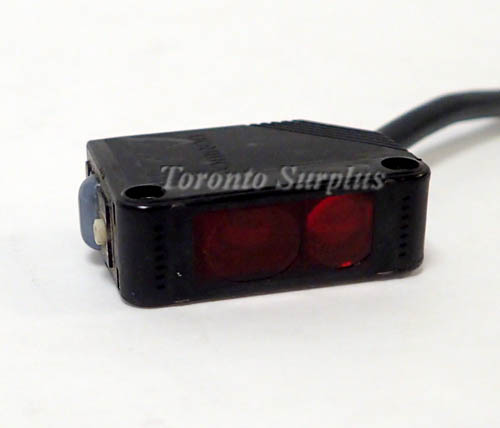

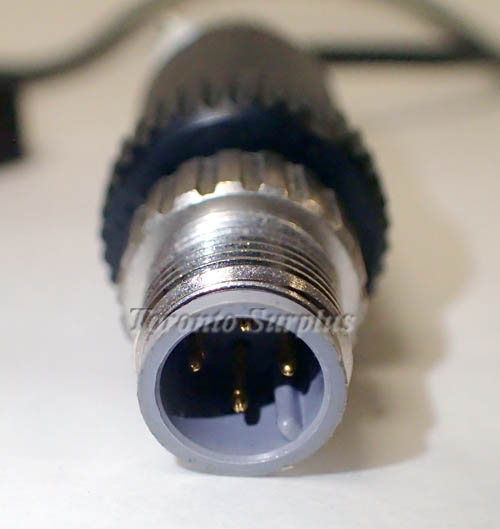

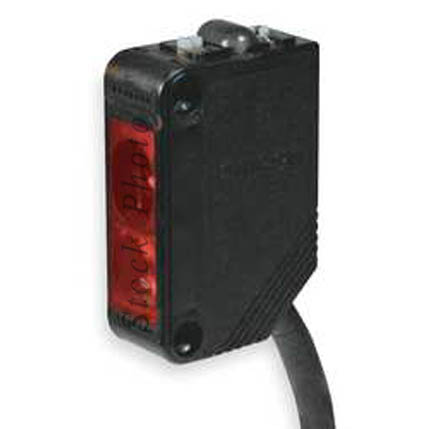

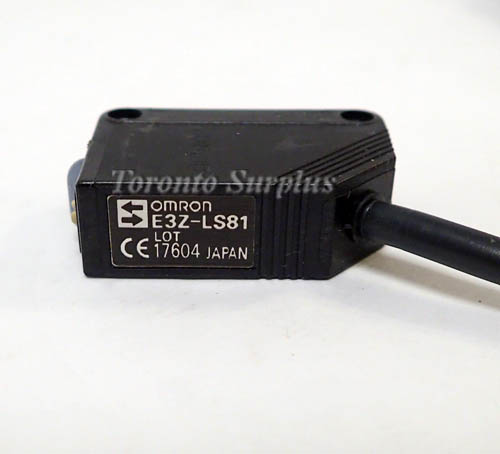

Omron E3Z-LS81-M1J Photoelectric Sensor M12 4 Position 0.3M Pigtail
sku97946 in stock
$90.00CAD
By Omron
<ul><li>Sensing distance     BGS     White or black paper (100 × 100 mm): 20 mm to set distance    </li><li> FGS     White paper (100 × 100 mm): Set distance to 200 mm min.Black paper (100 × 100 mm): Set distance to 160 mm min. &#…
Description
<ul><li>Sensing distance     BGS     White or black paper (100 × 100 mm): 20 mm to set distance    </li><li> FGS     White paper (100 × 100 mm): Set distance to 200 mm min.Black paper (100 × 100 mm): Set distance to 160 mm min.    </li><li>Setting range     White paper (100 × 100 mm): 40 to 200 mmBlack paper (100 × 100 mm): 40 to 160 mm    </li><li>Differential travel     10% of set distance max. (Refer to Datasheet.)    </li><li>Reflectivity characteristic (black/white error)     10% of set distance max.    </li><li>Light source (wavelength)     Red LED (680 nm)    </li><li>Power supply voltage     12 to 24 VDC ±10%, ripple (p-p): 10% max.</li><li>Current consumption     30 mA max.</li><li>Control output     Load power supply voltage: 26.4 VDC max., Load current: 100 mA max. (residual voltage 1 V max.), Open collector output (NPN or PNP depending on model)Light-ON/Dark-ON switch selectable</li><li>BGS/FGS selection     BGS: Open or connected to GNDFGS: Connected to Vcc    BGS: Open or connected to GND</li><li>Protection circuits     Reversed power supply polarity protection, Output short-circuit protection, Mutual interference prevention</li><li>Response time     Operate or reset: 1 ms max.</li><li>Distance setting     5-turn endless adjuster</li><li>Ambient illumination(Receiver side)     Incandescent lamp: 3,000 lx max.; Sunlight: 10,000 lx max.</li><li>Ambient temperature range     Operating: -25 to 55°C, Storage: -40 to 70°C (with no icing or condensation)</li><li>Ambient humidity range     Operating: 35% to 85%, Storage: 35% to 95% (with no condensation)</li><li>Insulation resistance     20 MΩ min. at 500 VDC</li><li>Dielectric strength     1,000 VAC at 50/60 Hz for 1 minute</li><li>Vibration resistance     Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions</li><li>Shock resistance     Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions</li><li>Degree of protection     IP67 (IEC 60529)</li><li>Indicators</li></ul><p>M12 4 position pigtail 0.3M / 11"            </p>
