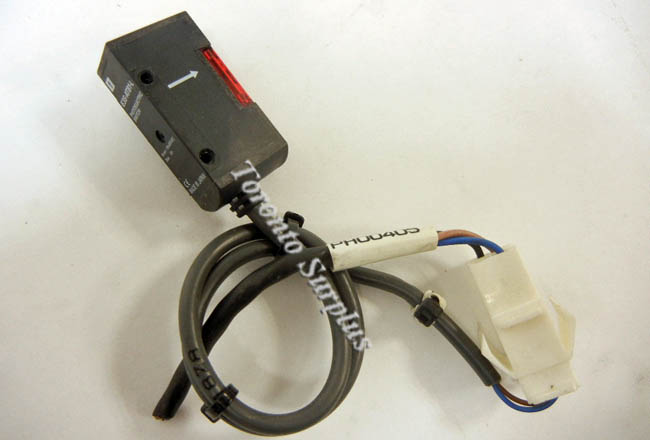

Omron E3SAT81L Through Beam Photoelectric Sensor W/ Built in Amplifier

SENSING DISTANCE:

• 7 M

STANDARD SENSING OBJECT

• Opaque 10-mm Dia. min.

DIRECTIONAL ANGLE:

• Both emitter and Reciever 3° to 15°

LIGHT SOURCE:

• Red LED ( 700nm )

POWER SUPPLY VOLTAGE :

• 10-30 VDC including ripple (p-p) 10%

CURRENT CONSUMPTION:

• Both Emitter and Reciever 20mA max
• plus approx .15mA with turbo function

CONTROL OUTPUT :

• Load Power supply voltage--- 30VDC max.
• Load Current ----100mA max. ( residual voltage 1V max ) \
• Open Collector Output ( NPN or PNP depending on model )
• Light ON - Dark ON

PROTECTION CIRCUITS:

• Power supply reverse polarity protection.
• Output short-circuit protection

RESPONSE TIME:

• Operation or reset 0.5ms max.

SENSITIVITY ADJUSTMENTS:

• Two turn endless adjustment with an indicator

AMBIENT TEMPERATURE

• Operating -25° to +55° ( with no icing or condensation )
• Storage -40° to 70° ( with no icing or condensation  )

AMBIENT HUMIDITY

• Operating 35% to 85% ( with no condensation )
• Storage -35% to 95% with no condensation )
