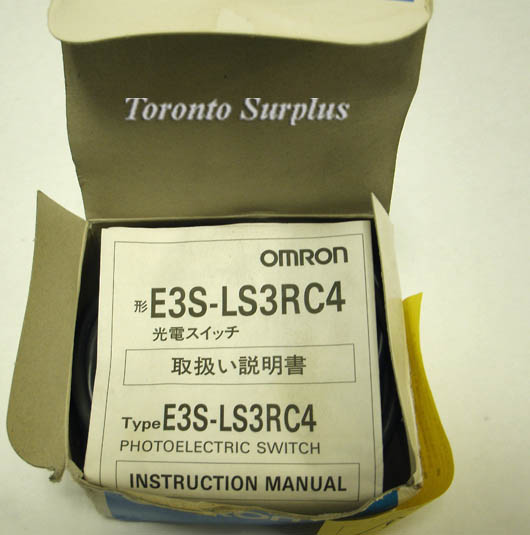

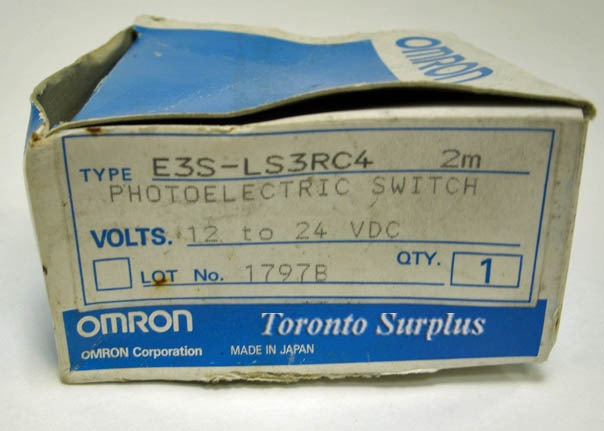

Omron E3S-LS3RC4 / E3SLS3RC4, 2mm Photoelectric Switch, BNIB /NOS
sku103521 — low stock
$59.95CAD
By Omron
Sensing method Limited Reflective Sensing distance 25 mm to 35 mm (White paper 10*10mm) Light source Red LED (660nm) Power supply voltage 12 to 24 VDC -10% to 10% (ripple(p-p) :10% Max.) Current consumption 40mA DC Max. Control output (Output type) NPN open collector output Control output (Load curr…
Description
- Sensing method Limited Reflective
- Sensing distance 25 mm to 35 mm (White paper 10*10mm)
- Light source Red LED (660nm)
- Power supply voltage 12 to 24 VDC -10% to 10% (ripple(p-p) :10% Max.)
- Current consumption 40mA DC Max.
- Control output (Output type) NPN open collector output Control output (Load current) 0 to 50 mA
- Control output (Residual voltage) (DC) 1 V Max. (Load current 50mA
- Max.Operation mode Light-ON/Dark-ON selectable
- Load power supply voltage 24 VDC Max.
- Protective circuit Surge suppressor
- Output short-cut protection
- Power supply reverse polarity protection
- Mutual interference prevention
- Sensitivity setting Single-turn adjustment
