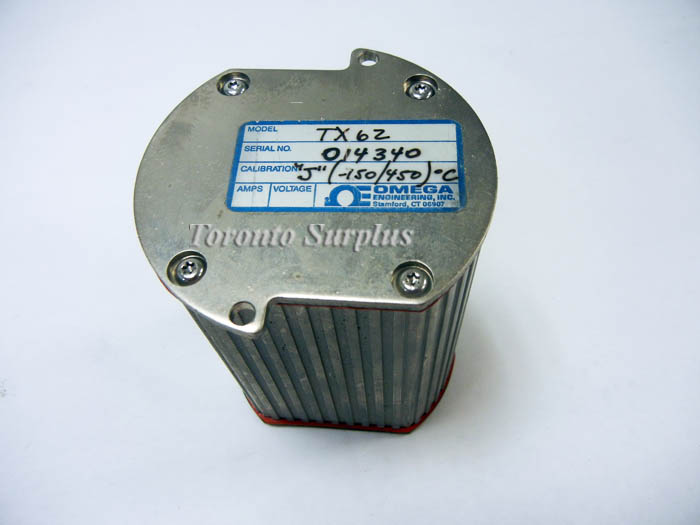

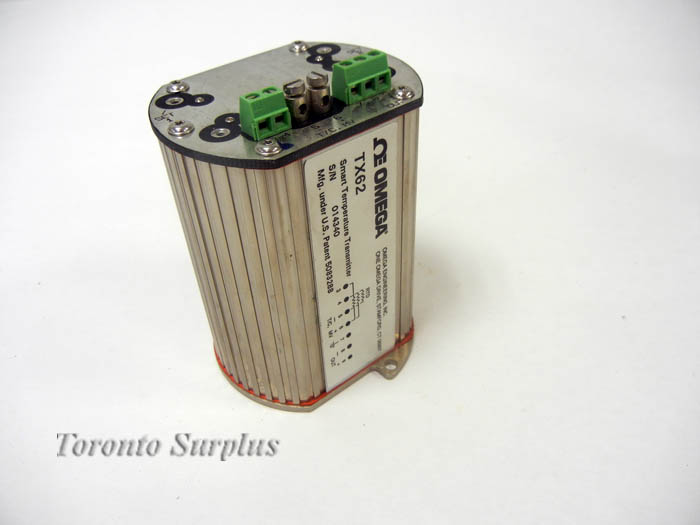

Omega Engineering TX62 Smart Temperature Transmitter
sku110901 — low stock
$25.00CAD
By Omega
<ul><li> 2 Wire 4 to 20 mA Output</li><li> TX62 and TX64 Models for Thermocouple and RTDs</li><li> TX63 Models for mV, mA, V, Resistance</li><li> Input to Output Isolation</li><li> Linearized Output</li><li> Set Zero and Span to Any Desired Range No Minimum  &…
Description
<ul><li> 2 Wire 4 to 20 mA Output</li><li> TX62 and TX64 Models for Thermocouple and RTDs</li><li> TX63 Models for mV, mA, V, Resistance</li><li> Input to Output Isolation</li><li> Linearized Output</li><li> Set Zero and Span to Any Desired Range No Minimum    Span</li><li> Hardened to EMI/RFI Interference</li><li> Rugged, Sealed, Industrial Design</li><li> Probe Assembly and Housing Option</li><li> Reference Condition Accuracy: Equal to transmitter repeatability</li></ul><ul><li>Turn-On Time: Less than 5 seconds after power-up.</li><li>Ambient Temperature Gradient: Automatic compensation to 20°C/hour change.</li><li>Isolation:  850 Vdc or peak ac</li><li>Common Mode Rejection: 120 dB</li><li>Reverse Polarity Protection: 42Vdc applied with either polarity</li><li>Power and Load: Supply voltage, 12 to 42 Vdc; minimum supply voltage under load, Vs = 12 + R (load in kΩ) X 23 mA; for digital operation, R(load) = 250 Ω minimum.</li></ul>
