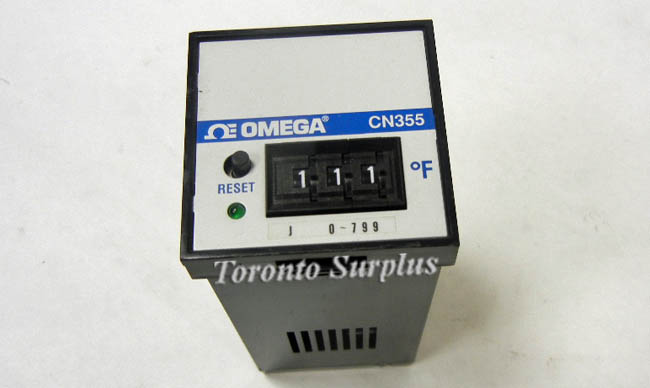

Omega CN355-JP / CN355JP Temperature High limit Controllers 0 - 799°C
sku104621 — low stock
10% Store Wide!Save $6.25
$56.25CAD$62.50
By Omega
<p> Specifications Accuracy:±1.5% FS+ 1 digit (thermocouple input);     ±1% FS + 1 digit (RTD input) Resolution: 1°C or °F Output Type: SPDT latching mechanical relay, 240 Vac, 2.5 A resistive load Deadband/Hysteresis: 1.5 to 2.5% FS fixed Power: 110/230 Vac ±10%, 50/60 Hz …
Description
<p> Specifications
Accuracy:±1.5% FS+ 1 digit (thermocouple input);
    ±1% FS + 1 digit (RTD input)
Resolution: 1°C or °F
Output Type: SPDT latching mechanical relay, 240 Vac, 2.5 A resistive load
Deadband/Hysteresis: 1.5 to 2.5% FS fixed
Power: 110/230 Vac ±10%, 50/60 Hz
Input:
    3-Wire RTD (Pt100)
     : 0.00385
     excitation, 2 mA lead wire (Approx.190' of 20-gage copper wire)
    Thermocouple Types J, K, R*, S*(*Non-Indicating Models Only):
     Input resistance, 200 k Ω; lead wire resistance, 100
     max;up-scalebreak protection standard
Power Consumption: Approx. 3 VA
Operating Ambient Range: 5 to 45°C (41 to 113°F), 90% RH ma
Insulation Resistance: 500 Vdc,20 M Ω min between input and power supply terminals.
 </p>
Accuracy:±1.5% FS+ 1 digit (thermocouple input);
    ±1% FS + 1 digit (RTD input)
Resolution: 1°C or °F
Output Type: SPDT latching mechanical relay, 240 Vac, 2.5 A resistive load
Deadband/Hysteresis: 1.5 to 2.5% FS fixed
Power: 110/230 Vac ±10%, 50/60 Hz
Input:
    3-Wire RTD (Pt100)
     : 0.00385
     excitation, 2 mA lead wire (Approx.190' of 20-gage copper wire)
    Thermocouple Types J, K, R*, S*(*Non-Indicating Models Only):
     Input resistance, 200 k Ω; lead wire resistance, 100
     max;up-scalebreak protection standard
Power Consumption: Approx. 3 VA
Operating Ambient Range: 5 to 45°C (41 to 113°F), 90% RH ma
Insulation Resistance: 500 Vdc,20 M Ω min between input and power supply terminals.
 </p>
