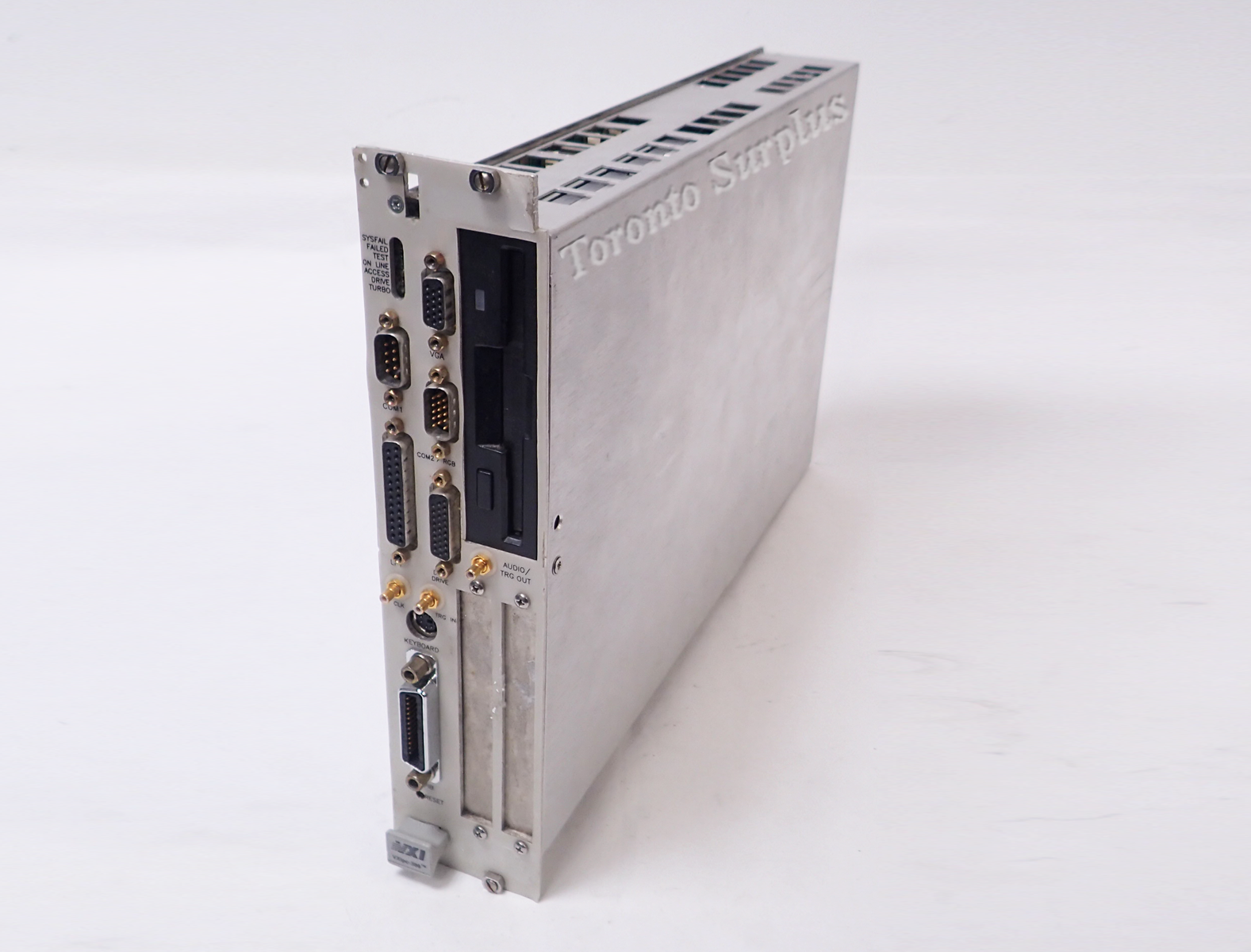

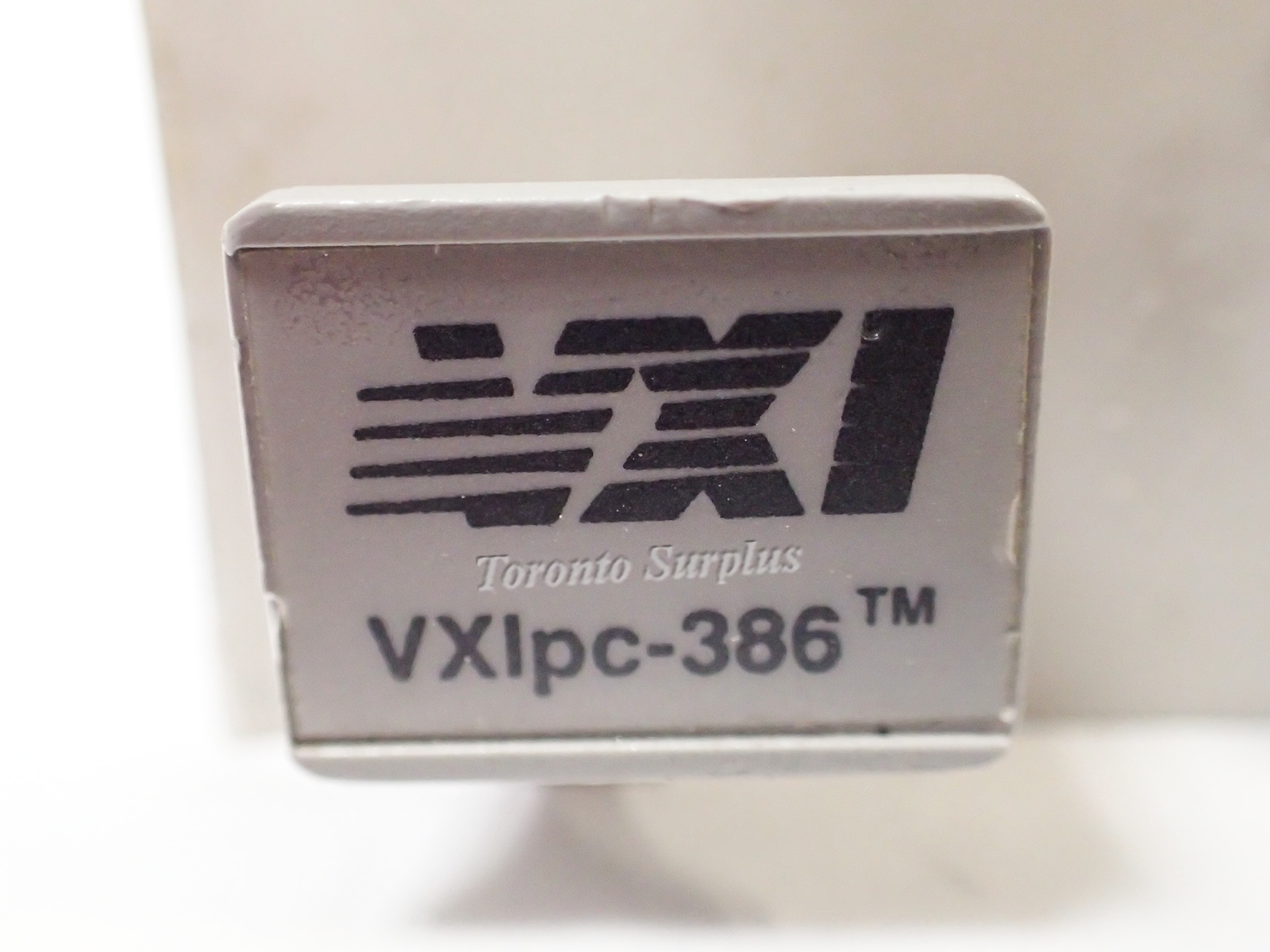

National Instruments VXIpc-386 C-Size VXI Controller Module
sku123741 — low stock
$281.85CAD
By National Instruments
VXIbus C-Size Module GPIB, VGA, COM 1/2, and LPT Interfaces VXI Mainframe Controller Self Diagnostic Tests on Boot-Up 3.5" Floppy Disk Drive Maximum Power Consumption 4A / +5VDC 40mA / +12VDC 40mA / -12VDC 100mA / -2VDC 700mA / -5.2VDC Operating Temperature: 5 - 55ºC Hard Drive Type: (User) 791-3-35…
Description
VXIbus C-Size Module
- GPIB, VGA, COM 1/2, and LPT Interfaces
- VXI Mainframe Controller
- Self Diagnostic Tests on Boot-Up
- 3.5" Floppy Disk Drive

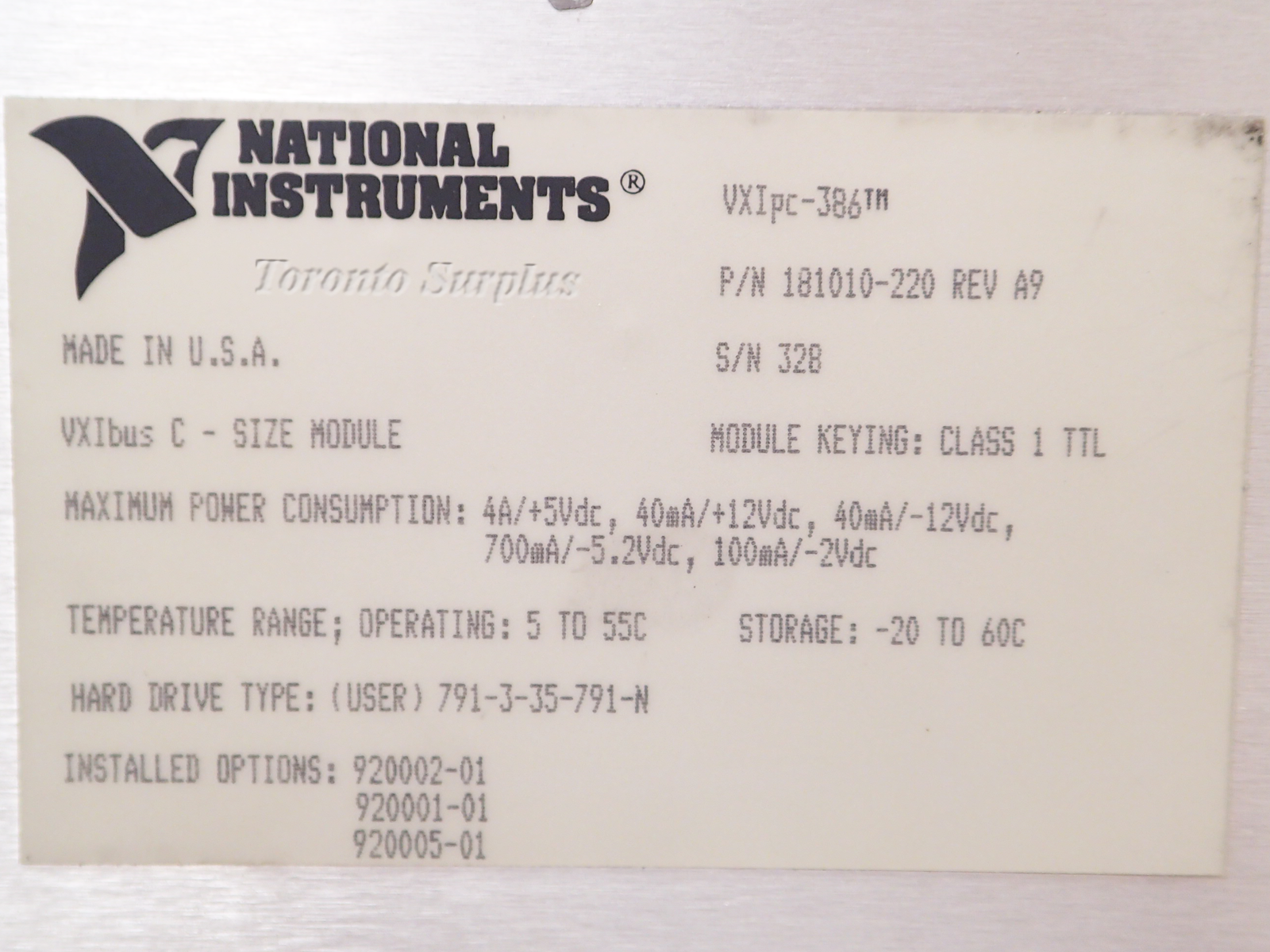

Maximum Power Consumption
- 4A / +5VDC
- 40mA / +12VDC
- 40mA / -12VDC
- 100mA / -2VDC
- 700mA / -5.2VDC
Operating Temperature: 5 - 55ºC
Hard Drive Type: (User) 791-3-35-791-N
Installed Options:
- 920002-01
- 920001-01
- 920005-01
