National Instruments PXIe-1075 PXl Chassis PXle 5644R Transceiver 8133 2790 56XX

Description

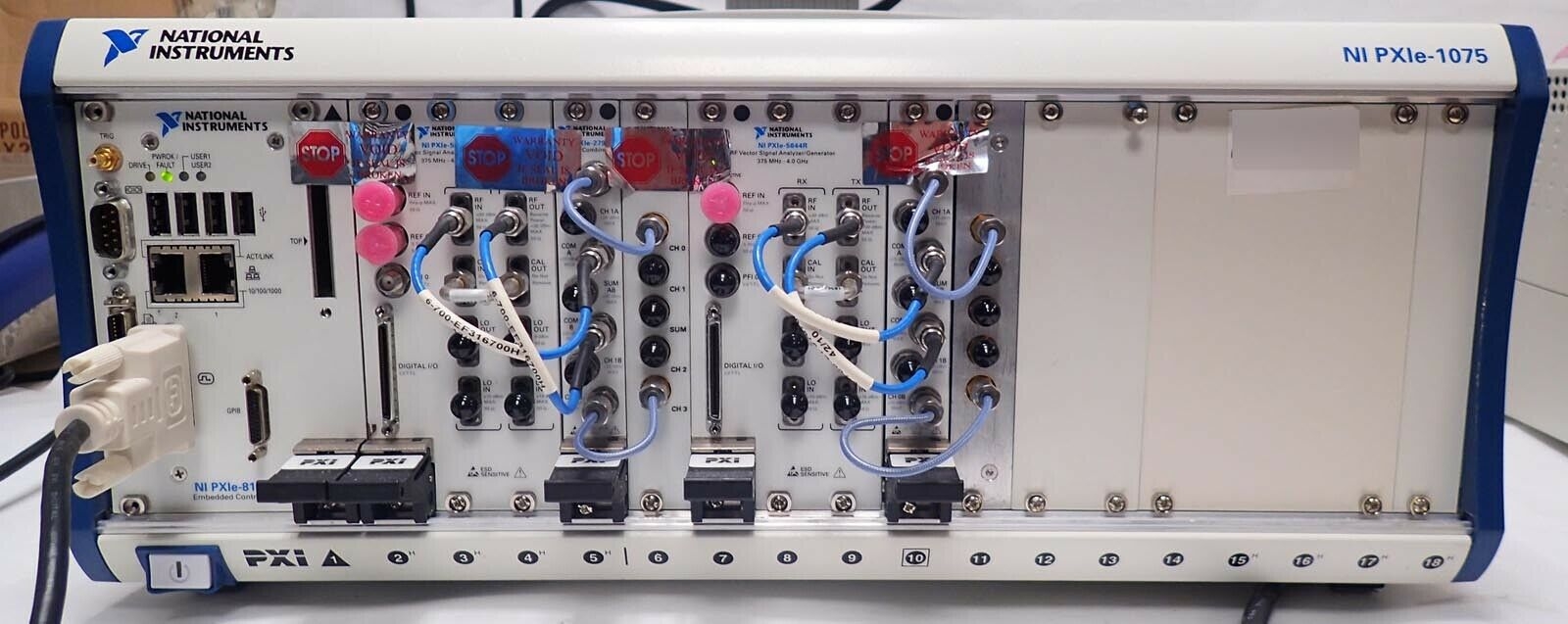

NATIONAL INSTRUMENTS PXIe-1075 18-SLOT 3U PXl EXPRESS CHASSIS 8 hybrid slots, 8 PXI Express slots, 1 PXI Express system timing slot 791 W total power Compatibility with PXl, PXl Express, CompactPCI, and CompactPCI Express modules High performance - up to 1 GB/s per-slot dedicated bandwidth and 4 GB/s system bandwidth Windows 7 NI PXIe-8133 - 3.06 GHz Quad-Core PXI Express Controller The PXIe-8133 is an Intel Core i7 embedded controller for PXI and CompactPCI systems. It is used for modular instrumentation and DAQ applications. The PXIe-8133 includes 10/100/1000BASE-TX (Gigabit) Ethernet and four Hi-Speed USB ports, as well as an integrated hard drive and other peripheral I/O. NI PXle-5644R - 6 GHz Vector Signal Transceiver Vector signal analyzer and generator 65 MHz to 6 GHz frequency range 80 MHz instantaneous bandwidth 24 channels of high-speed digital I/O User-programmable with LabVIEW FPGA NI PXle-2790 - 6 GHz Solid-State Power Combiner and Switch Combine and switch signals from 10 MHz to 6 GHz Ideal for multi-DUT cellular and wireless connectivity production test Ability to store RF path calibration information in NI Switch Executive Unlimited switch lifetime 50 ohm termination on channel and COM lines NI 56XX Prototype PXle Slot Compatible RF Combiner 250 MHz - 6 GHz MONITOR NOT INCLUDED

Specifications
