National Instruments NI PXI-6143 S Series 8 Channel 16 Bit 250kS/s Multifunction DAQ
sku125281 — low stock
Request a Quote
By National Instruments
NI PXI-6143 8 Channel Multifunction DAQ S Series 8 differential 16-bit analog inputs 250 kS/s per channel analog input Simultaneous sampling 8 digital I/O lines (5 V TTL/CMOS); two 24-bit counter/timers Digital triggering ±5 V analog input signal range Measurement services that simplify configuratio…
Description

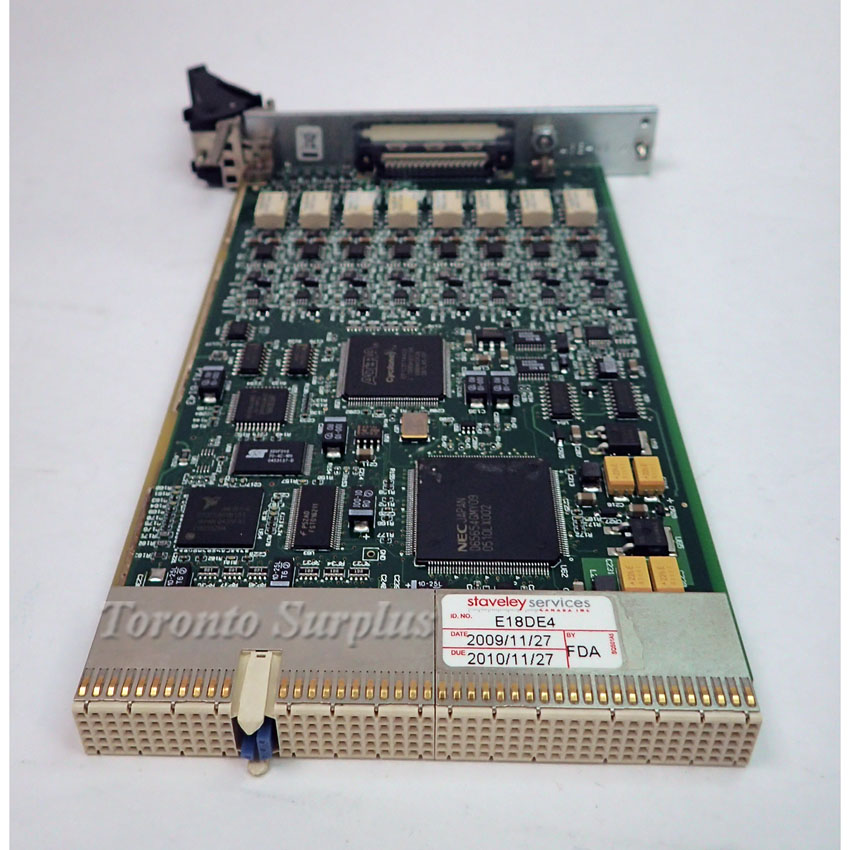

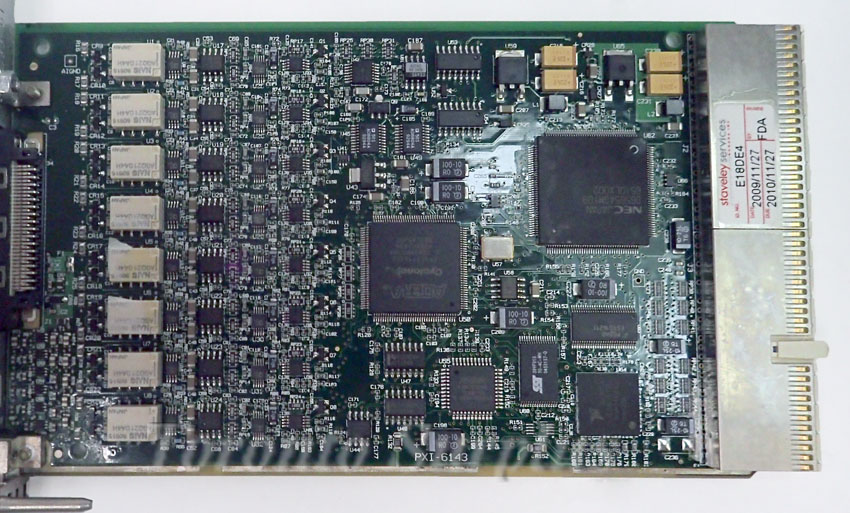

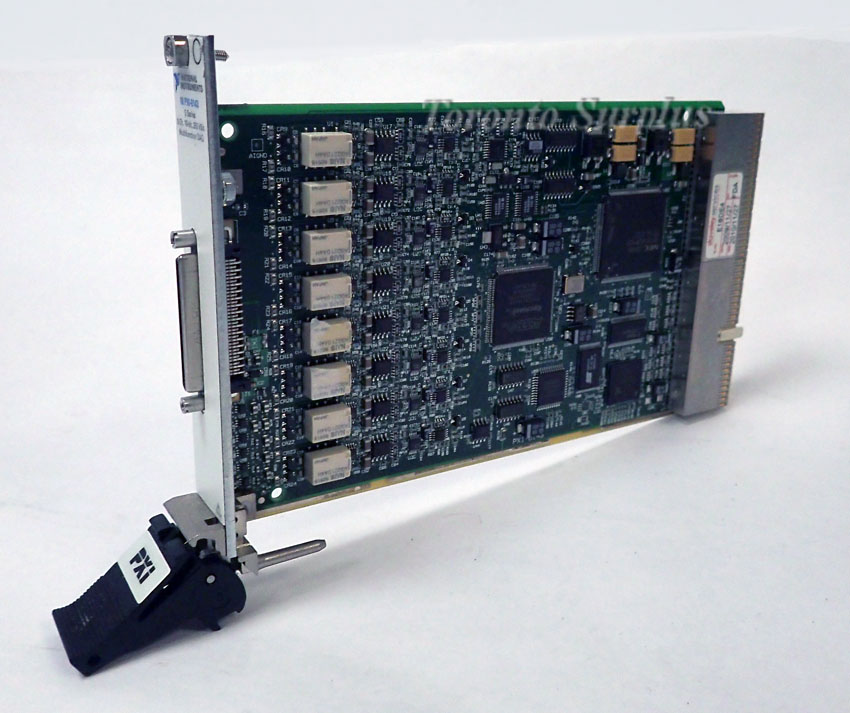

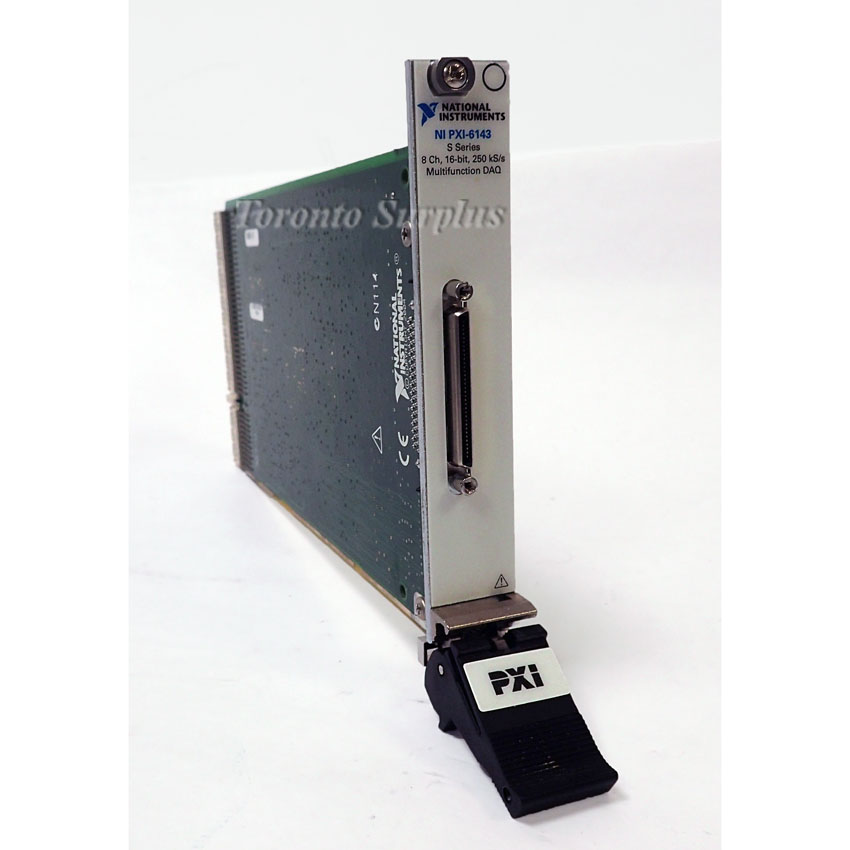

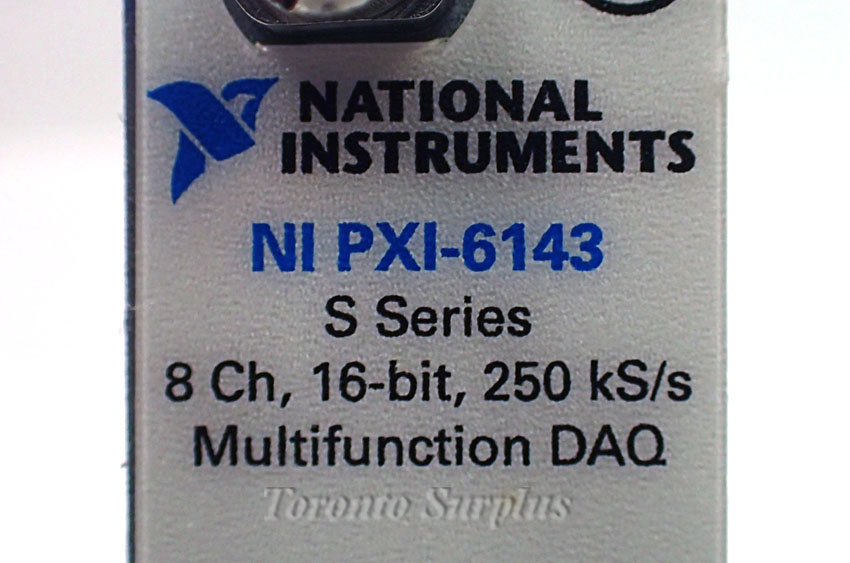

NI PXI-6143 8 Channel Multifunction DAQ S Series
- 8 differential 16-bit analog inputs
- 250 kS/s per channel analog input
- Simultaneous sampling
- 8 digital I/O lines (5 V TTL/CMOS); two 24-bit counter/timers
- Digital triggering
- ±5 V analog input signal range
- Measurement services that simplify configuration and measurements
Overview and Applications
National Instruments 6143 devices combine the latest in PC technologies to deliver simultaneous sampling for high-channel-count applications at a low cost. Use these devices in a variety of
applications, including:
- High-energy physics
- Ultrasonic and sonar testing
- Ballistics and highly transient signals
- Multiaxis control
