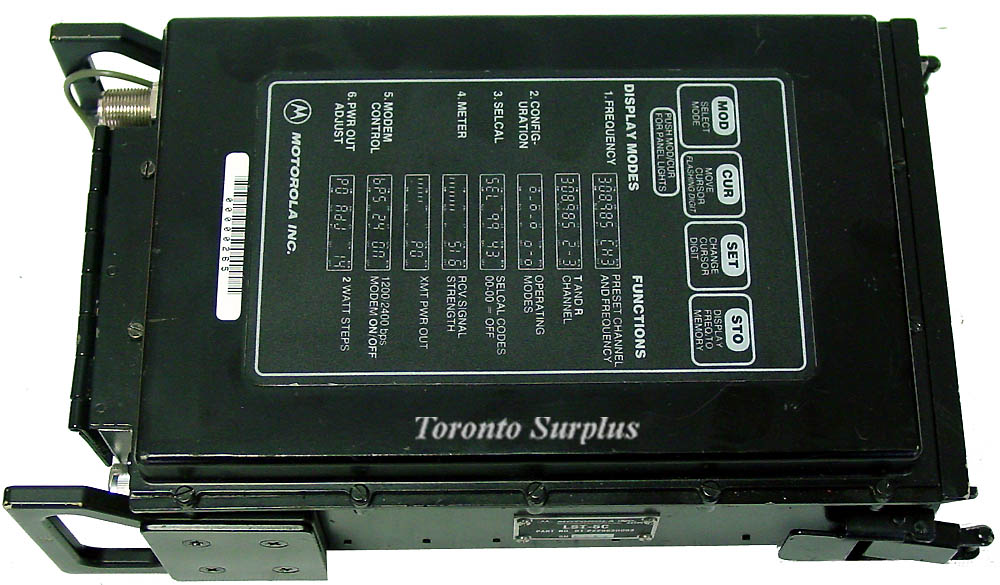

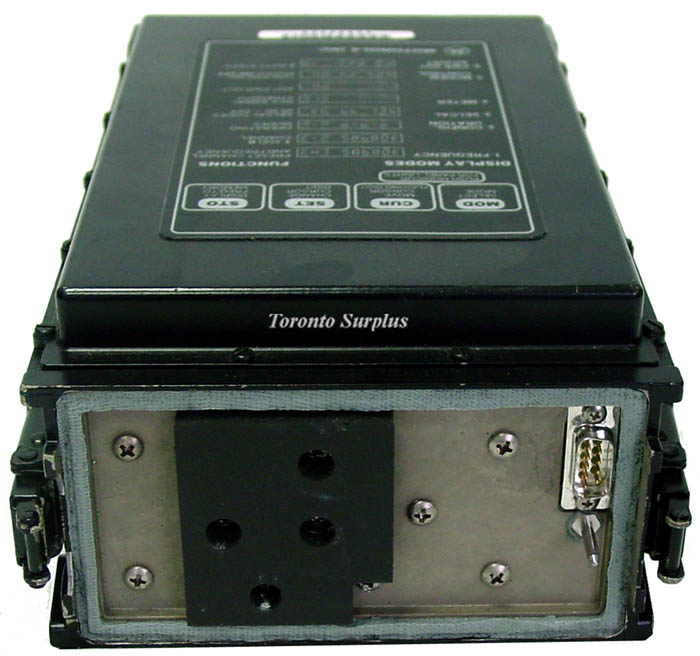

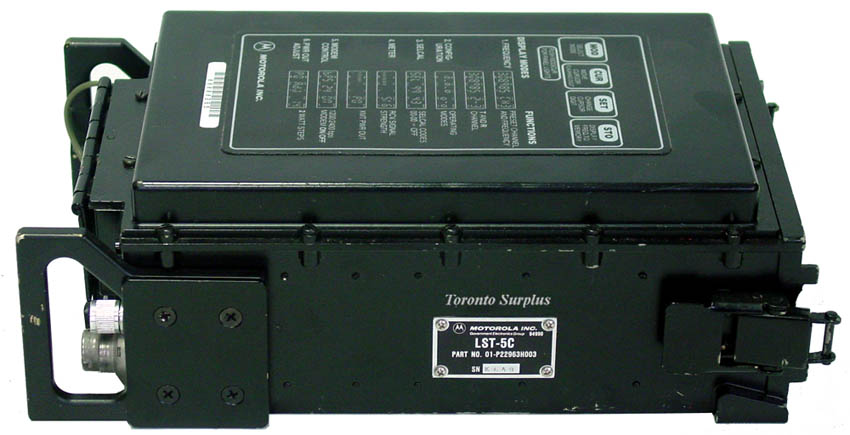

Motorola LST-5C / LST5C / 01-P22963H003 SATCOM UHF Radio Satellite Terminal

Description

<p>&#160;Motorola LST-5C, P/N 01-P22963H003 SATCOM UHF Radio Satellite Terminal</p><p>Motorola's LST-5C Lightweight Satellite Terminal is an enhanced, small (209 cu. in., 8.4 lbs) UHF tactical SAT-COM/LOS transceiver. The LST&#160;Series has been in continuous production since 1985. This technically innovative radio, with microprocessor control and EPROM storage is designed for rugged reliability and user friendly ease of operation.</p><p>Relative received signal strength can be displayed on an easy-to-read, lighted LCD. Transmitter output&#160; power is adjustable in 2 watt steps. All modes of operation, frequencies, bands, and preselects are chosen through four push-buttons. In SELCALL (select-call) mode, the caller selects and keys any one of the 75 designated units throgh a digitally-coded transmission; a visual and audible handshake is received and the caller initiates a message. A similar procedure establishes a conference call to all units.</p><p>The transceiver operates wide band (25 kHz) Am/FM voice or data, in either plain or encrypted text; or narrow band (5 kHz) 1200 BPSK and 2400 SBPSK data or digitized voice.</p><p>Current applications include portable manpack, vehicular, airborne/rotocraft shipboard, remote and fixed station.
</p><p>REDUCED&#160;POWER&#160;CONSUMPTION
-high efficiency transmitter- typical SATCOM uplinks require less than 2.0 Amps at 24 Vdc
-extended battery life (not included)- 20% increase
-efficient LCD display
-Solid State T/R switch
</p><p>GREATER&#160;MISSION&#160;FLEXIBILITY
-Extended duty cycle-fewer batteries per mission
-Efficient packaging- provides for future COMSEC/DAMA upgrades
-Lighter- 5% weight reduction
&#160;</p><p><span style="color: rgb(255, 0, 0);">NOTE: TERMINAL ONLY</span></p>
