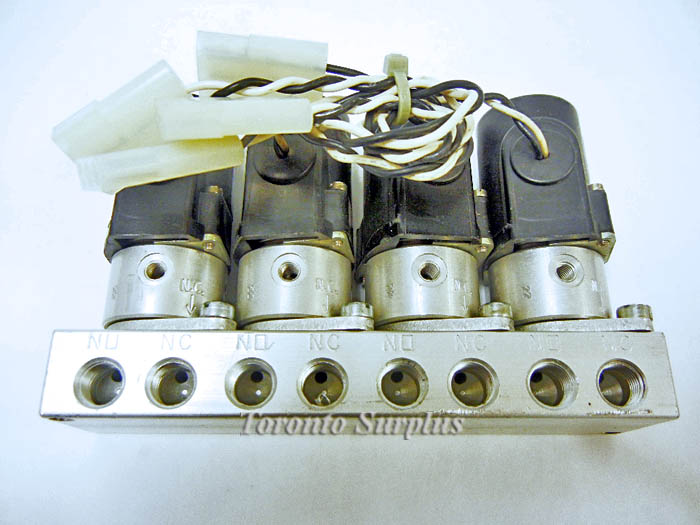

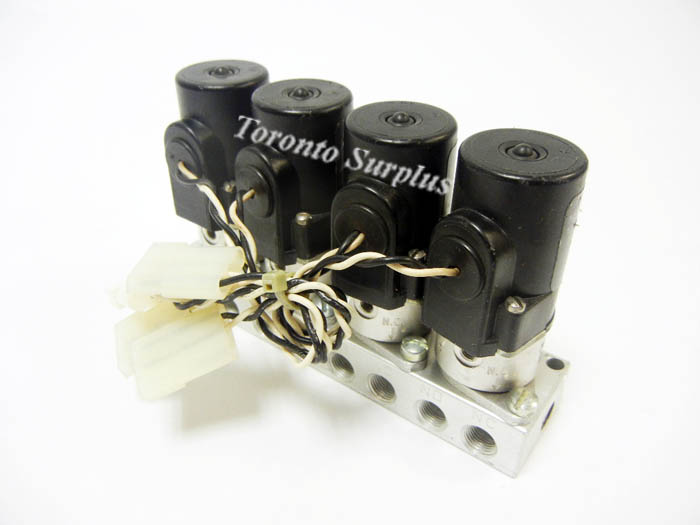

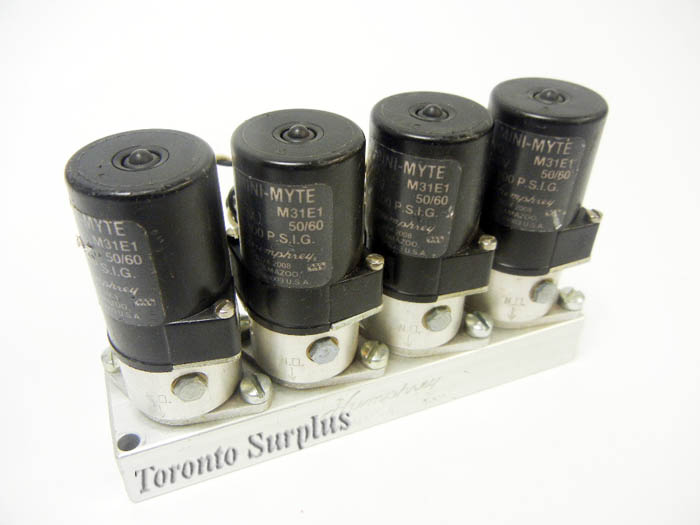

Mini Myte M31E1-1205060 / M31E1 Electric Solenoid Valves w/MM-4 Manifold 120VAC 100 PSIG

MINI MYTE M31E1

• 1/16" orifice — 6 CFM at 100 psig
• 2- or 3-way.
• Two position - spring return.
• Pressure rating: 0 to 100 psig.
• Voltage 120/50-60
• Normally closed, normally open or as a selector or diverter, depending upon port selections.
• Quiet operation with no AC hum.
• Furnished with push-in grommet or snap-in 1/2" conduit connector for electrical connection.
• Non-detented manual override standard.
• Mount in any position - base, body mounting holes or inline.

MM-4 Manifold

• For use with prefix letter M valves.
• Provides for centralized component placement
• One piece extruded aluminum bar.
• Cylinder outlet ports on one side, common inlet and accept any combination of MiniMyte manifold valves.
• Valves may be mounted in one of two positions. Position of electrical connection can be changed by reversing valve on manifold.
