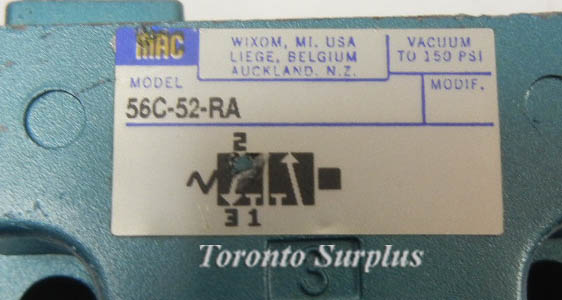

Mac Valves 56C-52-RA Remote Air Valve, 150 PSI, 3/8” NPTF, NC Valve, BNIB / NOS
sku100501 — low stock
10% Store Wide!Save $12.50
$112.50CAD$125.00
By Mac Valves
<p> Mac Valves 56C-52-RA Remote Air Valve, 3/8” NPTF, NC Valve, BNIB / NOS</p><p>1. Balanced spool, immune to variations of pressure. 2. Short stroke with high flow. 3. The piston (booster) provides maximum shifting forces. 4. Powerful return thanks to the combination of mechanical and air spri…
Description
<p> Mac Valves 56C-52-RA Remote Air Valve, 3/8” NPTF, NC Valve, BNIB / NOS</p><p>1. Balanced spool, immune to variations of
pressure.
2. Short stroke with high flow.
3. The piston (booster) provides maximum
shifting forces.
4. Powerful return thanks to the combination of
mechanical and air springs.
5. Bonded spool with minimum friction, shifting
in a glass-like finished bore.
6. Wiping effect eliminates sticking.
7. Low leakage rate.</p><p>Specifications </p><ul><li>Fluid :Compressed air, vacuum, inert gases</li><li>Pressure range : Vacuum to 150 PSI</li><li>Lubrication :  Not required, if used select a medium aniline point lubricant (between 180°F to 210°F)</li><li>Air Signal Pressure : 25 - 150 PSI ≥ main valve pressure</li><li>Filtration : 40 μ</li><li>Temperature range : 0°F to 120°F (-18°C to 50°C)</li><li>Flow (at 6 bar, ∆P=1bar) : 3/8” : (6.0 Cv)</li></ul>
pressure.
2. Short stroke with high flow.
3. The piston (booster) provides maximum
shifting forces.
4. Powerful return thanks to the combination of
mechanical and air springs.
5. Bonded spool with minimum friction, shifting
in a glass-like finished bore.
6. Wiping effect eliminates sticking.
7. Low leakage rate.</p><p>Specifications </p><ul><li>Fluid :Compressed air, vacuum, inert gases</li><li>Pressure range : Vacuum to 150 PSI</li><li>Lubrication :  Not required, if used select a medium aniline point lubricant (between 180°F to 210°F)</li><li>Air Signal Pressure : 25 - 150 PSI ≥ main valve pressure</li><li>Filtration : 40 μ</li><li>Temperature range : 0°F to 120°F (-18°C to 50°C)</li><li>Flow (at 6 bar, ∆P=1bar) : 3/8” : (6.0 Cv)</li></ul>
