Lab-Volt / LabVolt 9455-00 Delta/CVSD Decoder for Digital Communications Training Systems - Training / Education
sku127911 — low stock
Request a Quote
By Lab-Volt
<p>The Delta/CVSD Decoder is demodulates the Delta or CVSD modulated signal from the Delta / CVSD Generator and recovers the original analog signal. Using the Delta/CVSD Decoder, students gain an understanding of Delta / CVSD demodulation techniques. Distortion of the modulated signal due to slo…
Description

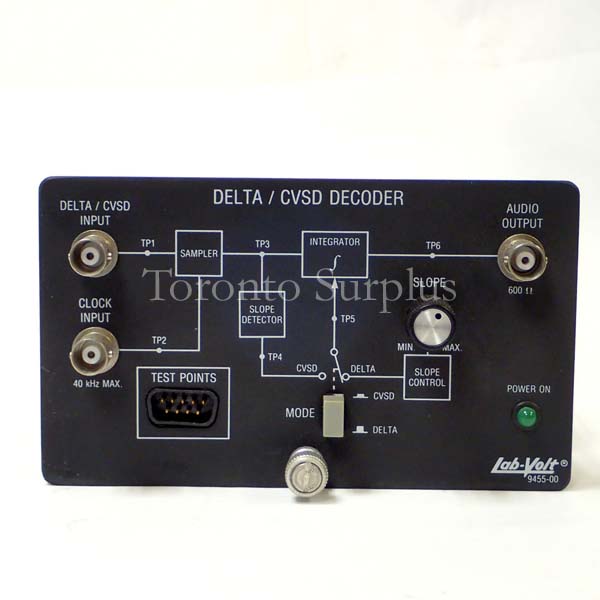

<p>The Delta/CVSD Decoder is demodulates the Delta or CVSD modulated signal from the Delta / CVSD Generator and recovers the original analog signal. Using the Delta/CVSD Decoder, students gain an understanding of Delta / CVSD demodulation techniques. Distortion of the modulated signal due to slope overload or weak and noisy signals can be studied, as well as the effects of noise on the transmitted signals.
Specifications
Power Requirements: Connection to the Enclosure / Supply Regulator, Model 9420 (not included)
Delta / CVSD Input
Voltage: TTL
Clock Input
Voltage: TTL
Maximal Frequency: 40 kHz
Audio Output
Voltage: 2 V p-p
Impedance: 600 Ω
Frequency Range: 300 Hz to 5 kHz
Fault-Insertion Switches: 6
Test Points: 6
Physical Characteristics
Dimensions (H x W x D) 83 x 142 x 212 mm (3.3 x 5.6 x 8.3 in)
Net Weight 0.7 kg (1.5 lb)</p>
