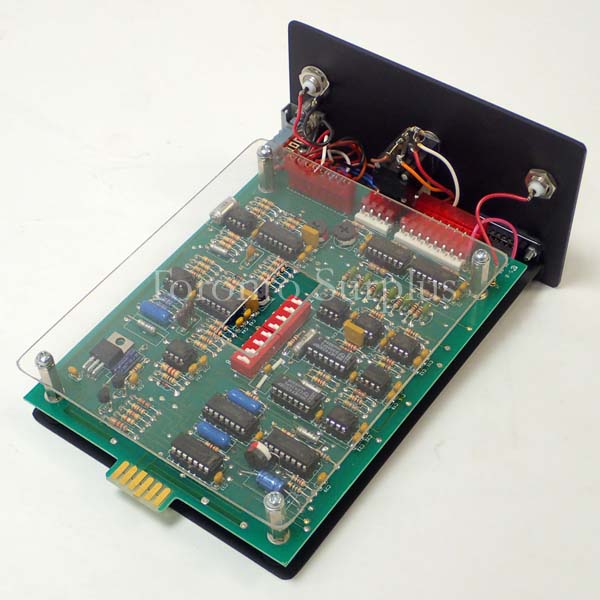

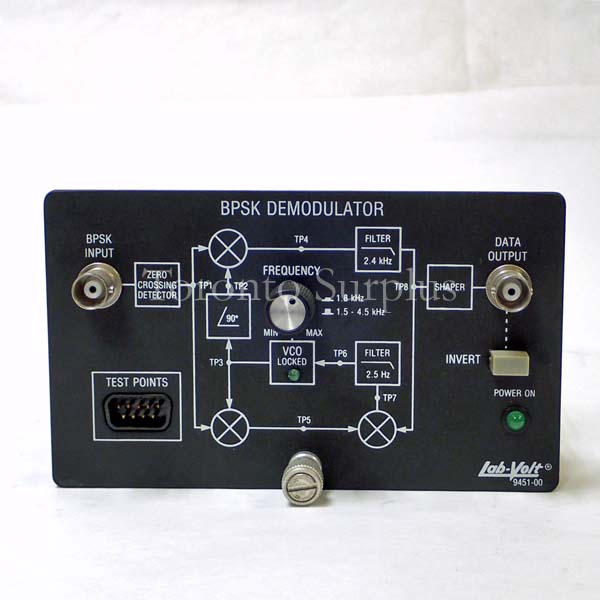

Lab-Volt / LabVolt 9451-00 BPSK Demodulator for Digital Communications Training Systems - Training / Education
sku127931 — low stock
Request a Quote
By Lab-Volt
<p>The BPSK Demodulator demodulates the BPSK signals from the BPSK Modulator and recovers the original data signal. The module employs demodulation techniques with the Costas Loop. Using the BPSK Demodulator, students gain an understanding of BPSK demodulation techniques, as well as phase ambigu…
Description
<p>The BPSK Demodulator demodulates the BPSK signals from the BPSK Modulator and recovers the original data signal. The module employs demodulation techniques with the Costas Loop. Using the BPSK Demodulator, students gain an understanding of BPSK demodulation techniques, as well as phase ambiguity and bit error rate measurement.
Specifications
Power Requirements: Connection to the Enclosure / Supply Regulator, Model 9420 (not included)
BPSK Input
Voltage: 2 V p-p
Impedance: 600 Ω
Data Output
Voltage: TTL
Maximal Data Rate: 2400 Bd
Fault-Insertion Switches: 8
Test Points: 8
Physical Characteristics
Dimensions (H x W x D) 83 x 142 x 212 mm (3.3 x 5.6 x 8.3 in)
Net Weight 0.7 kg (1.5 lb)</p>
