Lab-Volt / LabVolt 9441-00 PAM/ASK Receiver for Digital Communications Training Systems - Training / Education
sku128011 — low stock
Request a Quote
By Lab-Volt
<p>The PAM/ASK Receiver demodulates PAM or ASK signals from the PAM/ASK Generator to recover the original analog signals or data. Using the PAM/ ASK Receiver, students become familiar with techniques used in the demodulation of PAM and ASK signals. Specifications Power Requirements: Connect…
Description

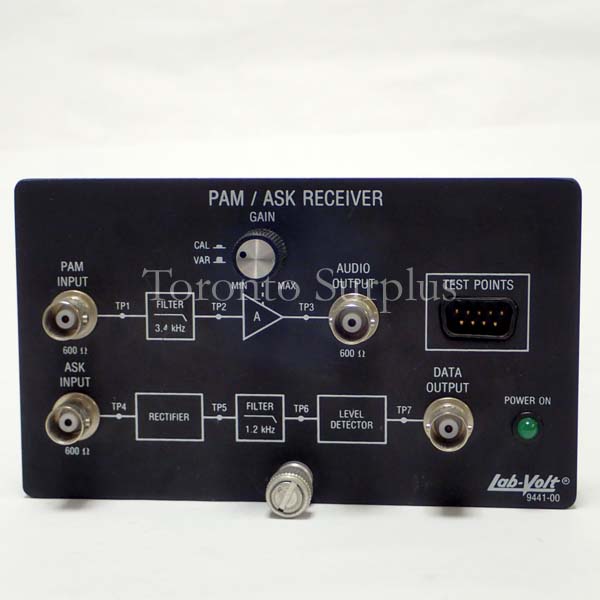

<p>The PAM/ASK Receiver demodulates PAM or ASK signals from the PAM/ASK Generator to recover the original analog signals or data. Using the PAM/ ASK Receiver, students become familiar with techniques used in the demodulation of PAM and ASK signals.
Specifications
Power Requirements: Connection to the Enclosure / Supply Regulator, Model 9420 (not included)
PAM / ASK Inputs
Voltage: 2 V p-p
Impedance: 600 Ω
Maximal ASK Data Rate: 1200 Bd
Audio Output
Nominal Voltage: 2 V p-p with 2 V p-p input (gain control at CAL position)
Maximal Voltage: 10 V p-p
Impedance: 600 Ω
Frequency: 3.4 kHz
Data Output
Voltage: TTL
Fault-Insertion Switches: 8
Test Points: 7
Physical Characteristics
Dimensions (H x W x D) 83 x 142 x 212 mm (3.3 x 5.6 x 8.3 in)
Net Weight 0.7 kg (1.5 lb)</p>
