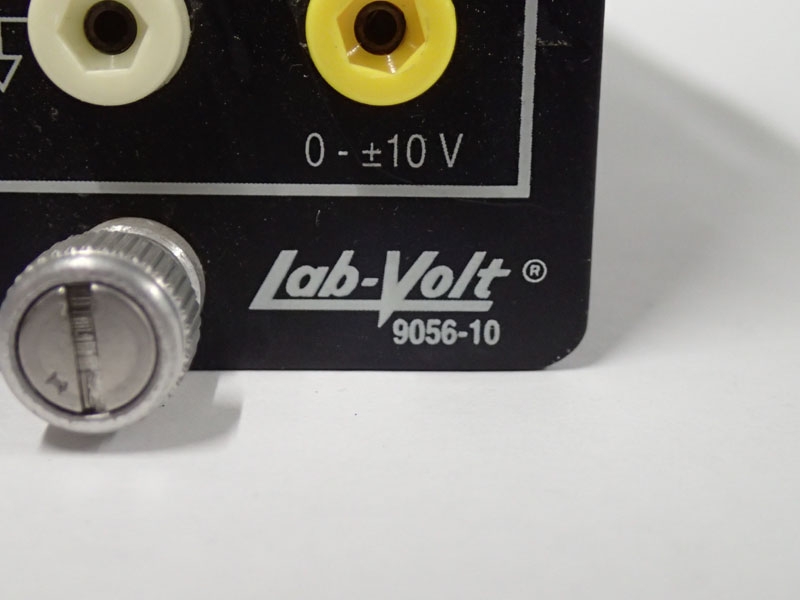

Lab-Volt 9056-10 Current / Voltage Isolator ±10Vac/Vdc Tested

Description

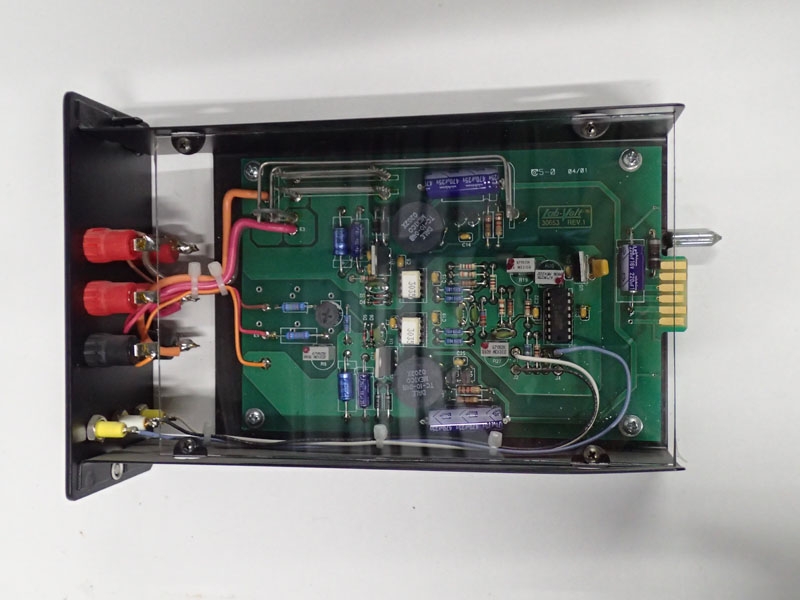

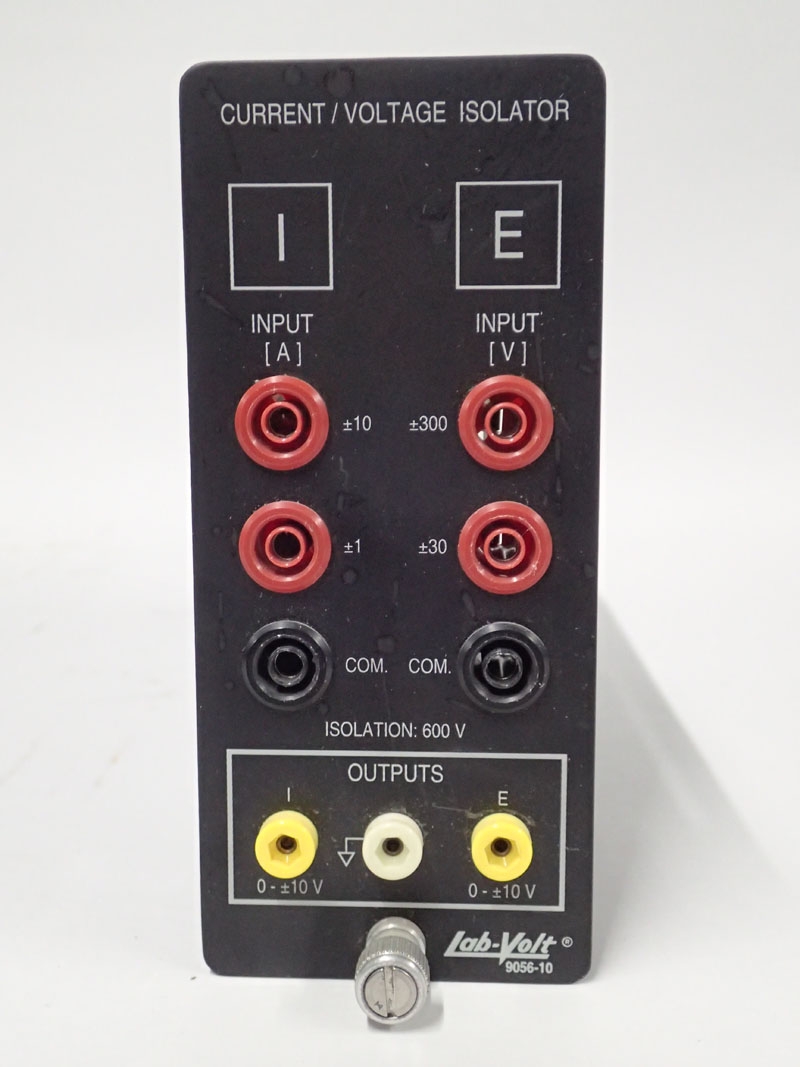

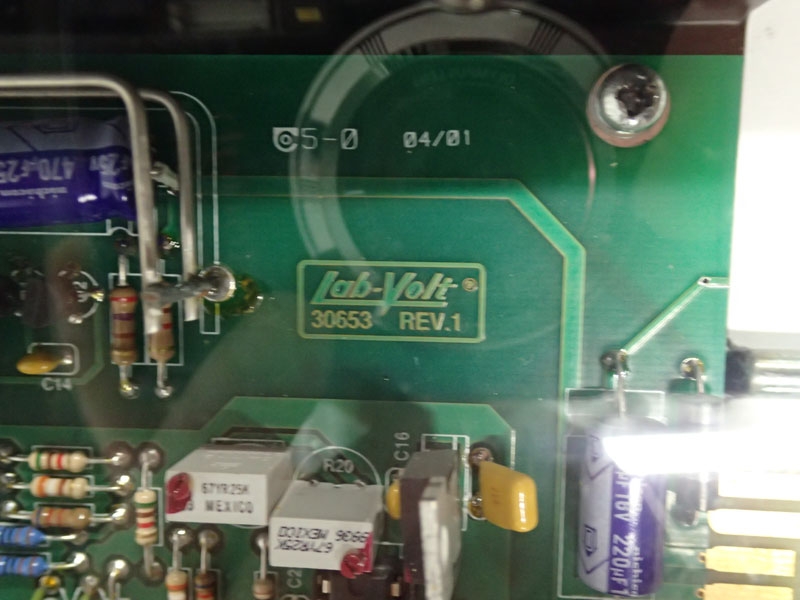

Product Details From Manufacturer: The Current/Voltage Isolator converts a high-level current and a high-level voltage (ac or dc) into two low-level (0 to ±10 V) output signals, electrically isolated from the high-level signal source. This allows observation of the signal waveforms in power circuits using a conventional oscilloscope. The output signals can also be used in control circuits as current or voltage feedback signals. The isolated signal at the current output (I) is proportional to the input current. Similarly, the isolated signal at the voltage output (E) is proportional to the input voltage. Both isolators can be used simultaneously. Model 9056-1 is designed to be used with 0.2 kW EMS systems. The Current/Voltage Isolator is a plug-in module designed to be inserted into the Enclosure / Power Supply, Model 8840. It is automatically powered when it is inserted into the enclosure Specifications Current Isolator Ranges - 1/10 A Maximum Continuous Current - 1/5 A Impedance - 0.2/0.02 Ω Voltage Isolator Ranges - 30/300 V Impedance - 150 kΩ/1.5MΩ Output (I and E) Voltage - 0 to ±10V (Isolated from Input) Short Circuit Current - 15 mA Frequency Range (-3 dB) - 0 to 15 kHz Measurement Category - CAT II Accuracy DC to 2 kHz - ±1% Full Scale 2 to 5 kHz - ±3% Full Scale Cosmetic Notes: Minor scuffing and dust on outer frame, cosmetic in nature, see pictures. We have more than one, so you may not get the exact item pictured, but they are all in similar cosmetic condition. If you would like to receive pictures of the exact unit/units you will receive please send us a request. Testing and Functional Notes: This item is TESTED & WORKING, as pictured. See above for any additional notes.

Specifications
