Lab-Volt 9033-00 Funciton Generator Sine,Square,Wave, Ramp/Saw Tooth 0.1-1kHz Tested

Description

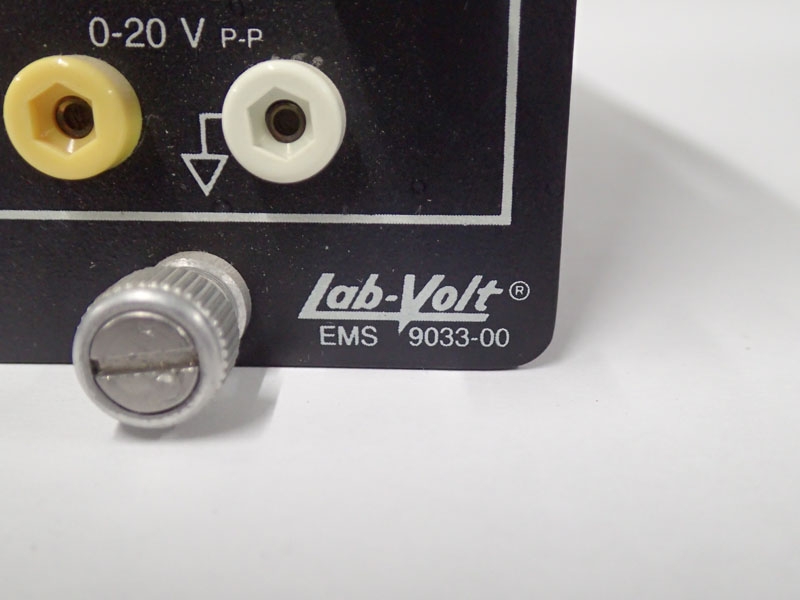

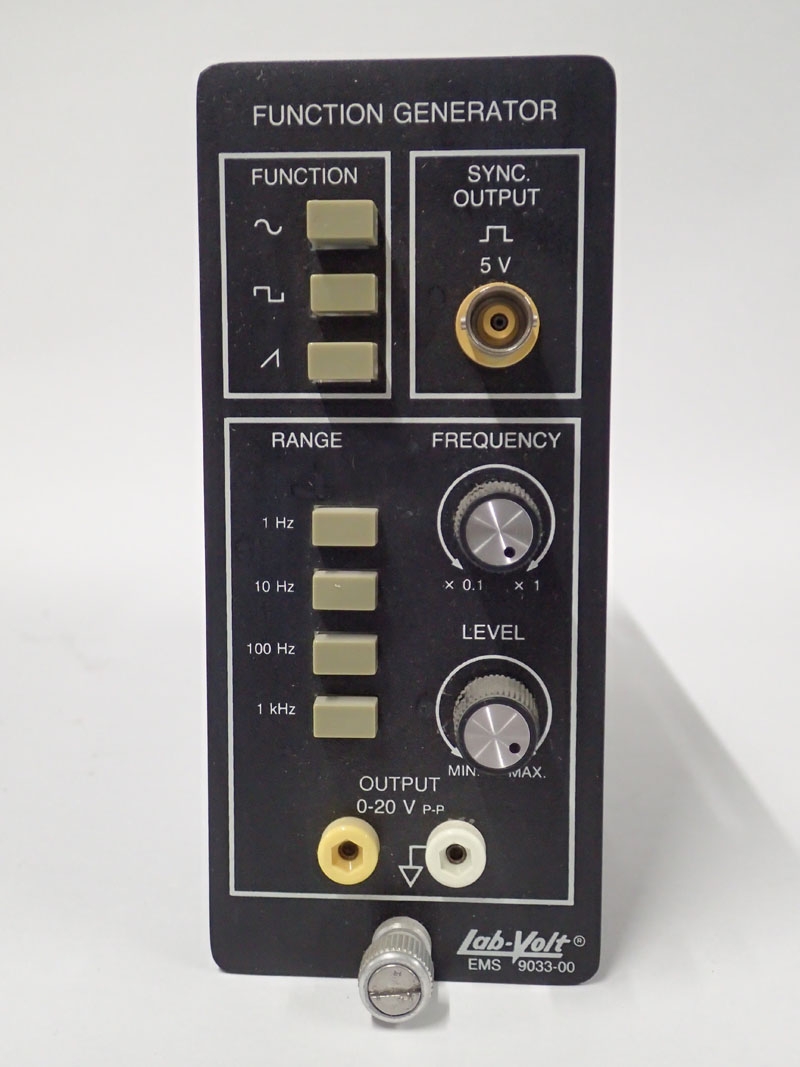

Product Details From Manufacturer The Function Generator is a low-frequency function generator plug-in control module. It provides three output waveforms (sine wave, square wave, and saw-tooth), whose frequency can be varied in four ranges (from 0.1 Hz to 1 kHz). It can be used as a convenient modulation source to control the output pulse signals of the Chopper / Inverter Control Unit, Model 9029, or the firing angle of the Thyristor Firing Unit, Model 9030. A 0-5 V SYNC pulse signal for external triggering purposes is easily accessed through a BNC connector on the front panel. Specifications: Rating Output Waveforms - Sine wave, Square wave, Ramp Frequency Ranges - 0.1-1 Hz, 1-10 Hz, 10-100 Hz and 100-1000 Hz Amplitude - 0-20 V p-p Output Impedance - 1 kΩ Synchronization Output - TTL Compatible, Pulse Waveform, 50% Duty Cycle, 5 V Amplitude Cosmetic Notes: Minor scuffing and dust on outer frame, cosmetic in nature, see pictures. We have more than one, so you may not get the exact item pictured, but they are all in similar cosmetic condition. If you would like to receive pictures of the exact unit/units you will receive please send us a request. Testing and Functional Notes: This item is TESTED & WORKING, as pictured. See above for any additional notes.

Specifications
