Lab-Volt 3815-10 AC/DC Current Sensitive Relay In 4mA - 6A DC/60Hz Out 120Vdc 0.5A 250Vac 8A Tested
SKU132251 — low stock
Request a Quote
By Lab-Volt
Product Details From Manufacturer The AC/DC Current Sensitive Relay is a protective relay that is sensitive to either alternating current (ac) or direct current (ac). It can be set to respond to either undercurrent or overcurrent conditions. Current setpoint and hysteresis adjustments, ac/dc…
Description
Product Details From Manufacturer

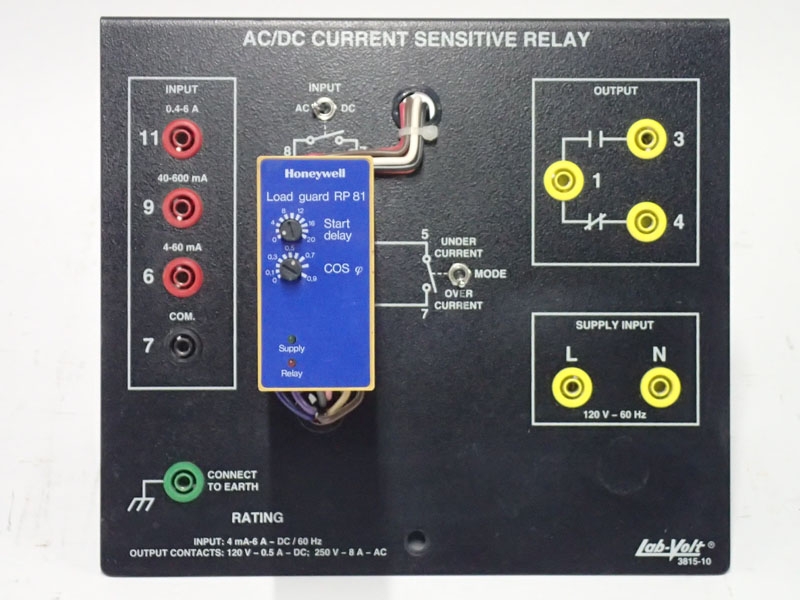

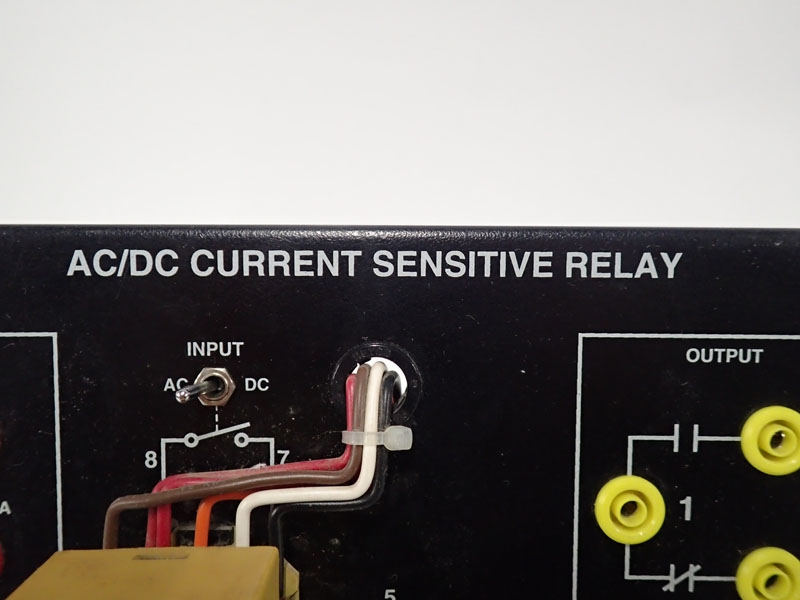

The AC/DC Current Sensitive Relay is a protective relay that is sensitive to either alternating current (ac) or
direct current (ac). It can be set to respond to either undercurrent or overcurrent conditions. Current setpoint
and hysteresis adjustments, ac/dc and undercurrent/overcurrent selection switches are provided along with a
single set of contacts

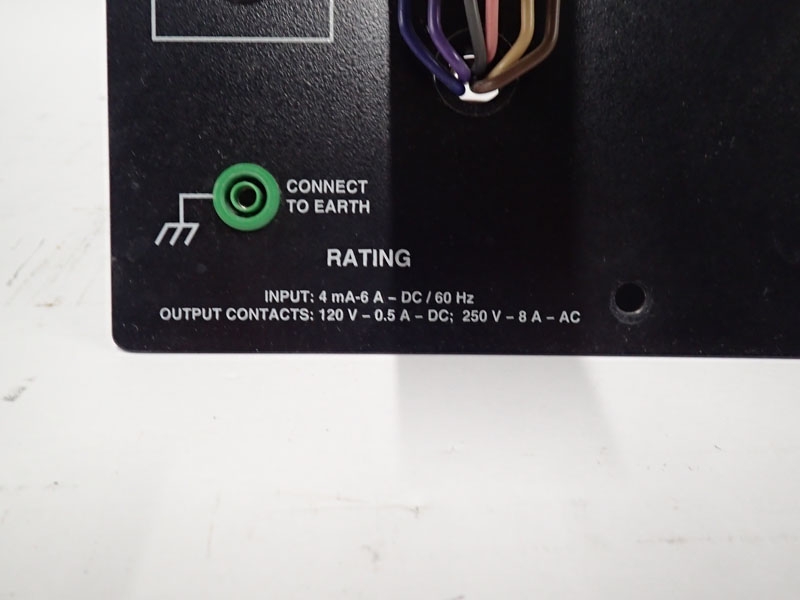

Specifications
Current Metering Ranges - 4 to 60 mA; 40 to 600 mA; 0.4 to 6 A
Maximum Input Current - 200 mA for the 4-60 mA range800 mA for the 40-600 mA range8 A for the 0.4-6 A range
Current Setpoint Range - same as selected current metering range
Hysteresis Range- 5% to 50% of selected current metering range
Output Contacts - SPDT: 0.5 A at 120 V dc; 8 A at 250 V ac
Auxiliary Supply - 120Vac 2.5Va

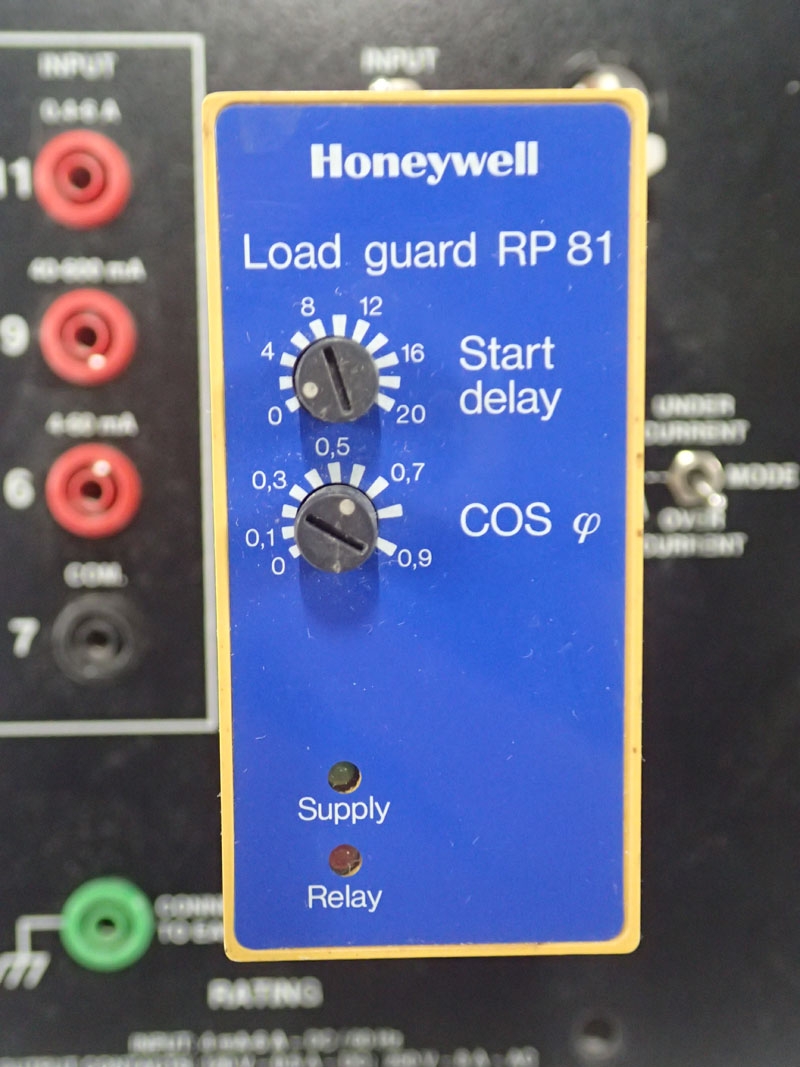

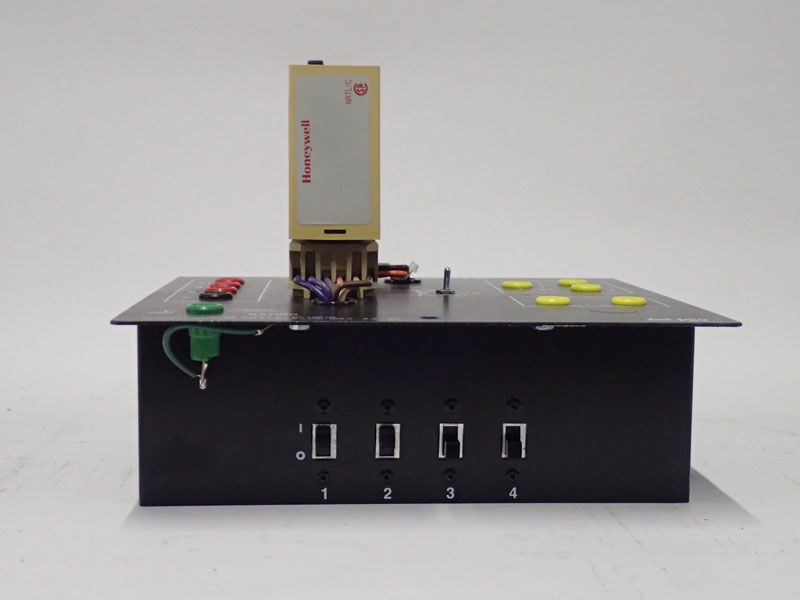

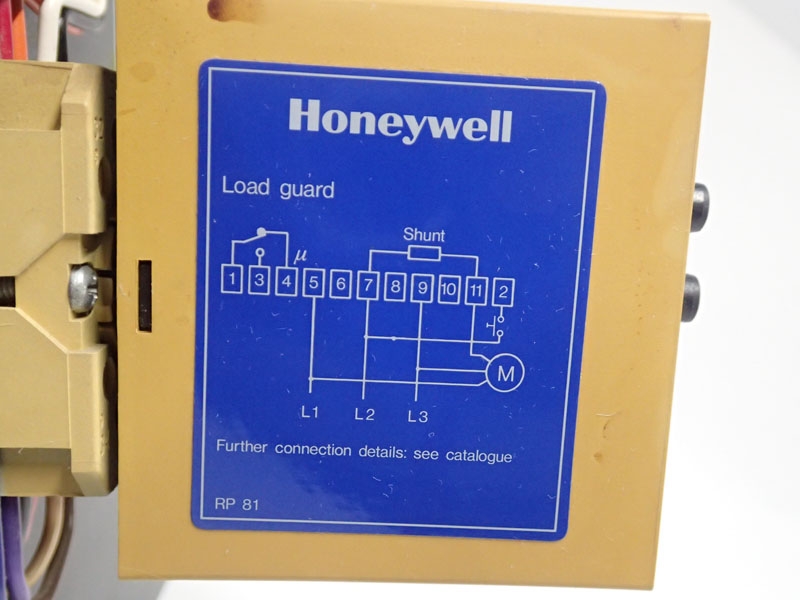

Uses Honeywell Load Guard RP 81

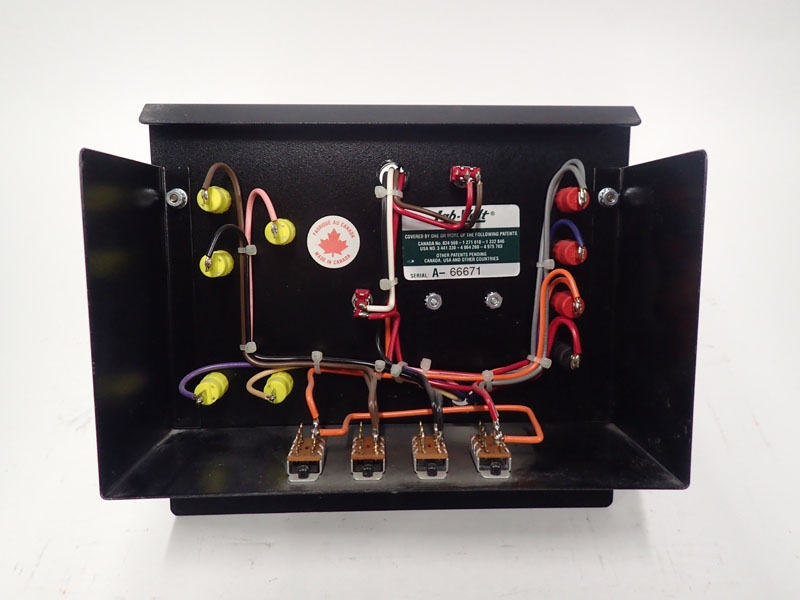

Cosmetic Notes
Minor scuffing on outer frame from previous use and dust in crevices, cosmetic in nature, see pictures.
Testing and Functional Notes
This item is TESTED & WORKING, as pictured. See above for any additional notes.
