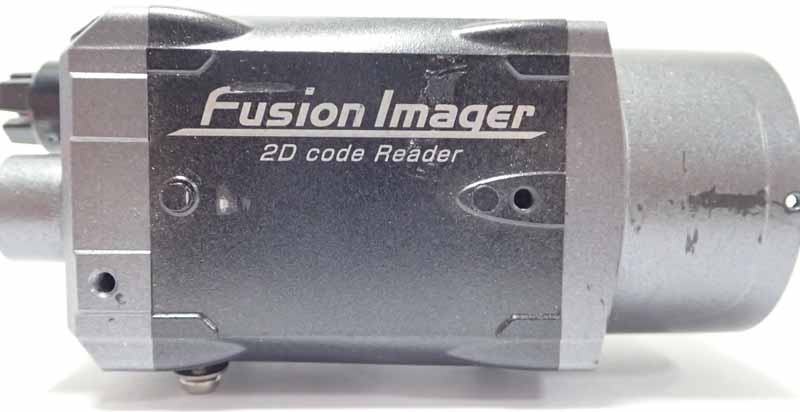

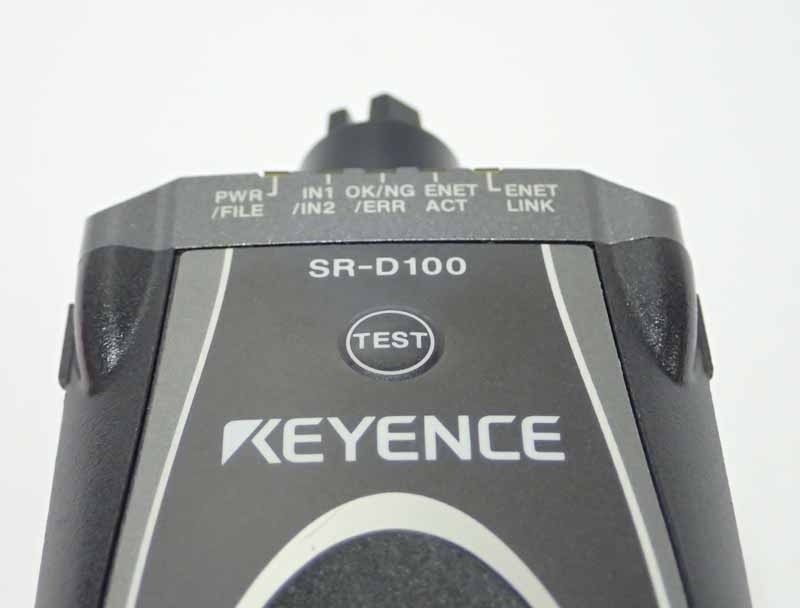

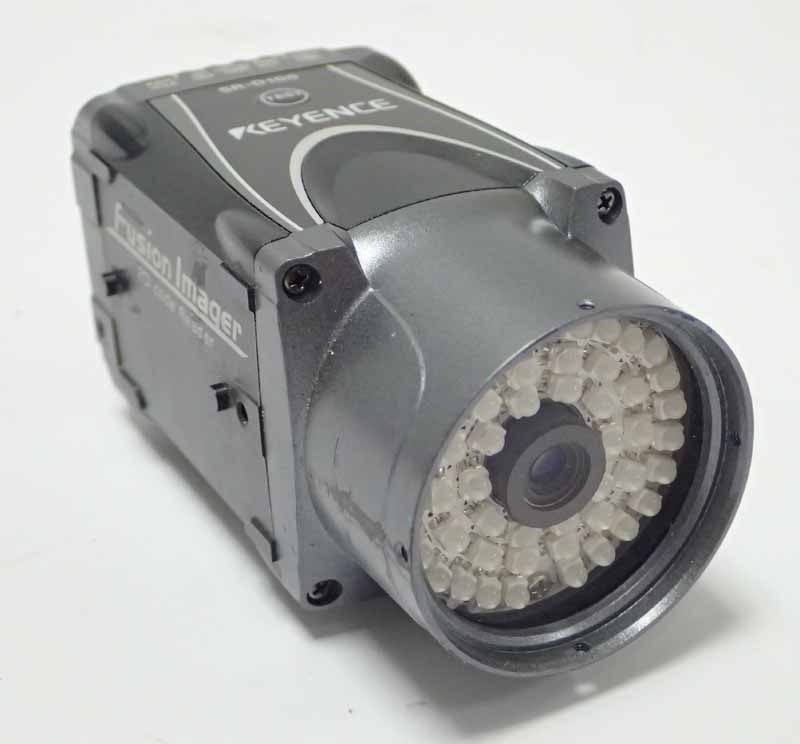

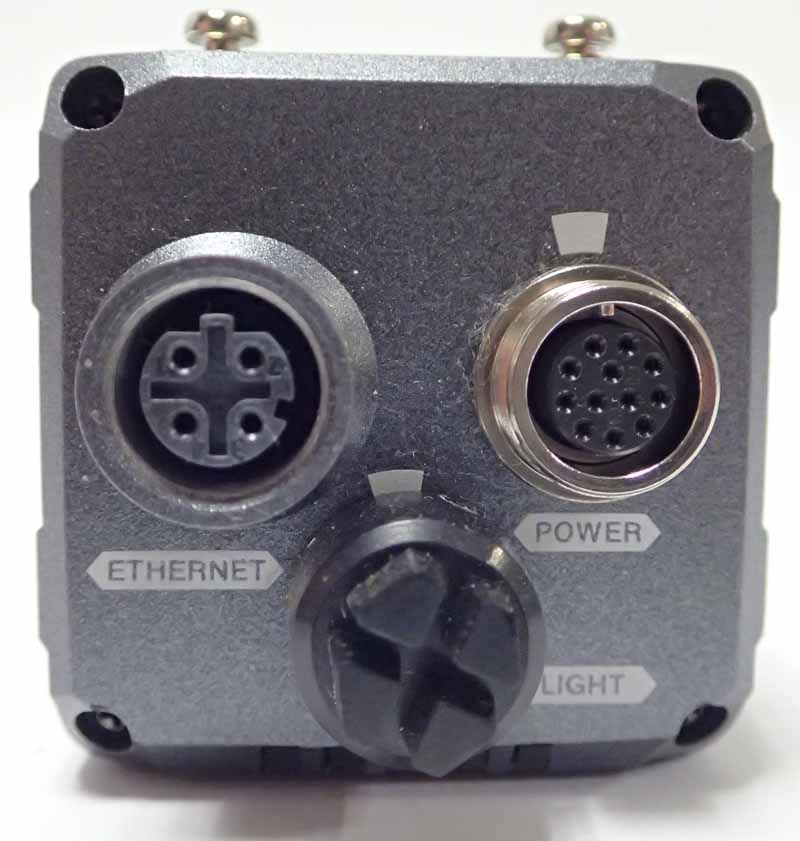

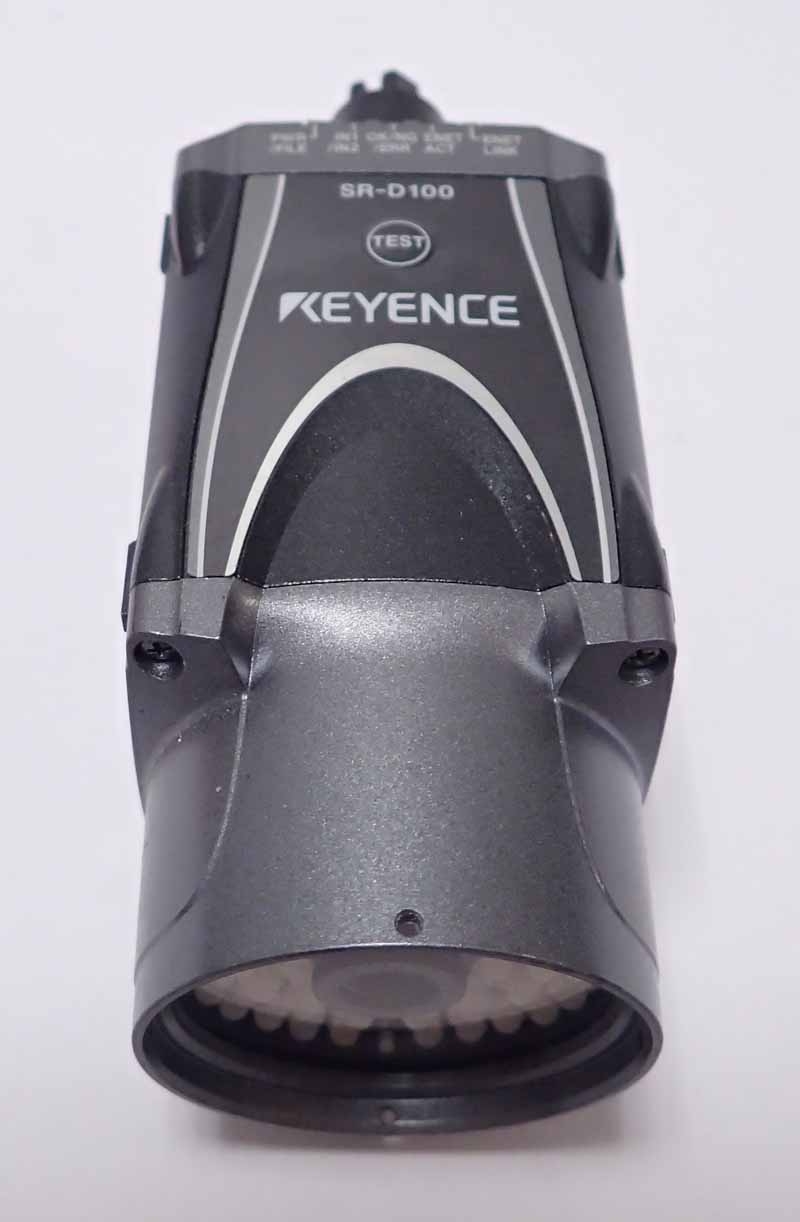

Keyence SR-D100 Barcode Scanner Fusion Imager 2D Code Reader

Description

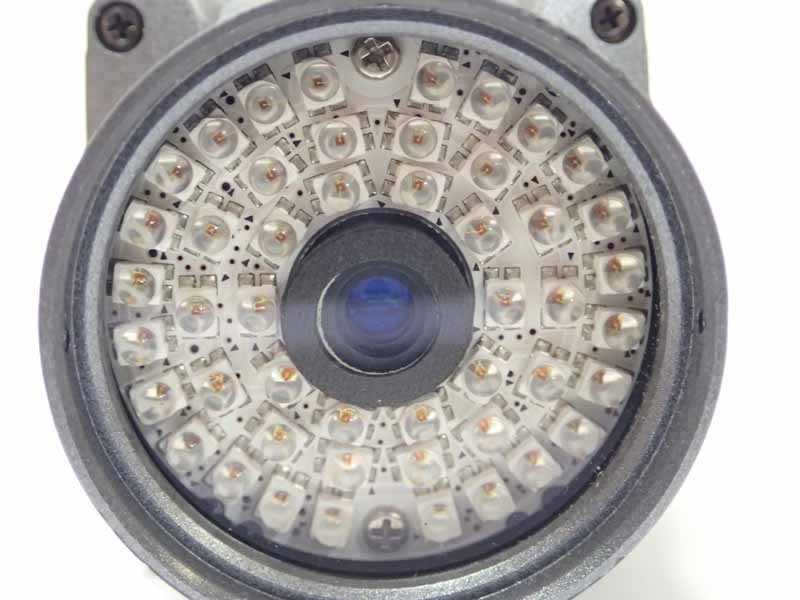

Model SR-D100 Type Standard type Internal memory RAM Max. saved images: 80 ROM Max. saved images: 1000 Illumination Light source High-intensity red LED Reading Supported codes QR, MicroQR, DataMatrix (ECC200), GS1 DtaMatrix Focal distance 100 mm Cell size (focal position) 0.15 mm View range (focal position) 32.1 × 20.5 mm Serial communication Communication standard RS-232C compliant Communication speed 9600, 19200, 38400, 57600, 115200 bps Supported protocols Procedureless, MC protocol, SYSWAY, KVSTUDIO Ethernet Communication standard Complies with IEEE802.3/100Base-TX Protcol TCP/IP, EtherNet/IP®, PROFINET, MC protocol, KVSTUDIO, FTP, BooTP Input terminals Number of terminals 2 Input format Two-way voltage input Max. rating 26.4 VDC Min. on voltage 15 VDC Max. off voltage 0.2 mA or less Output terminals Number of terminals 3 Output format PhotoMOS relay Max. rating 30 VDC Max. load current 1-output max.: 50 mA, 3-output total: 100 mA OFF leak current 0.1 mA max. ON residual voltage 1 V max. Rating Power voltage 24 VDC ±10 % Current consumption 600 mA (SR-D100 Series standalone), 1,100 mA (with SR-DR15 attached), 850 mA (with SR-DR10 attached), 800 mA (with SR-DS3 attached) Environmental resistance Enclosure rating IP65 Ambient light Sunlight: 10,000 lux, Incandescent lamp: 6,000 lux, Fluorescent lamp: 2,000 lux Ambient temperature 0 to +45 °C Relative humidity 35 to 95 % RH (No condensation) Operating environment No dust or corrosive gas present Vibration resistance 10 to 57 Hz, Double amplitude 0.75 mm, 3 hours in each of the X, Y, and Z directions Weight Approx. 300 g (including diffuser plate)

Specifications
