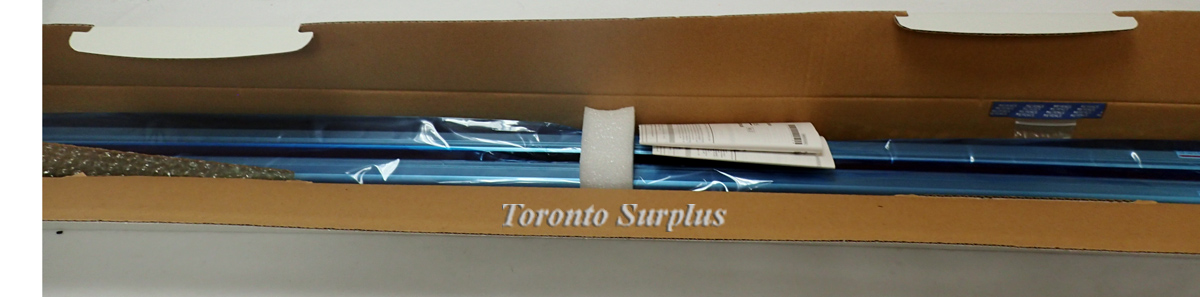

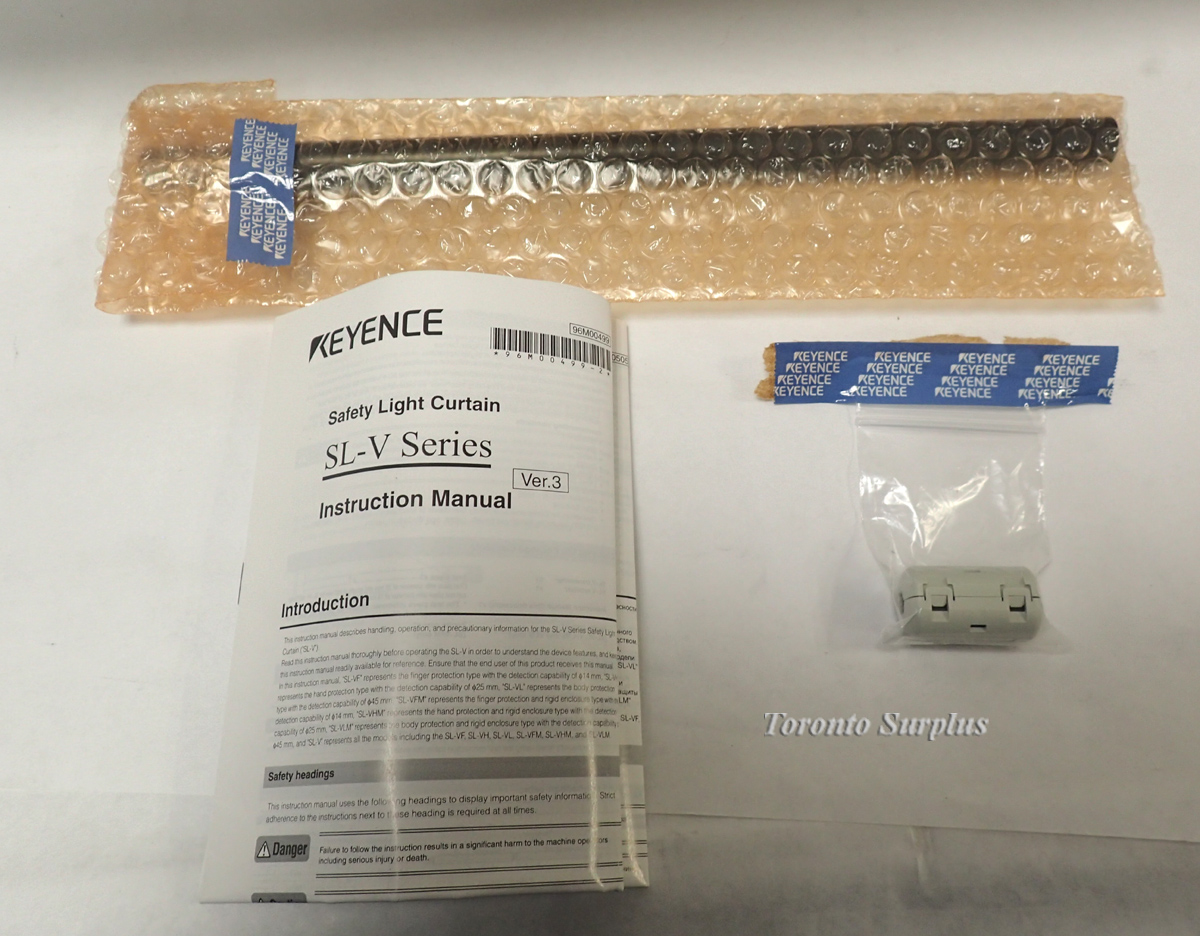

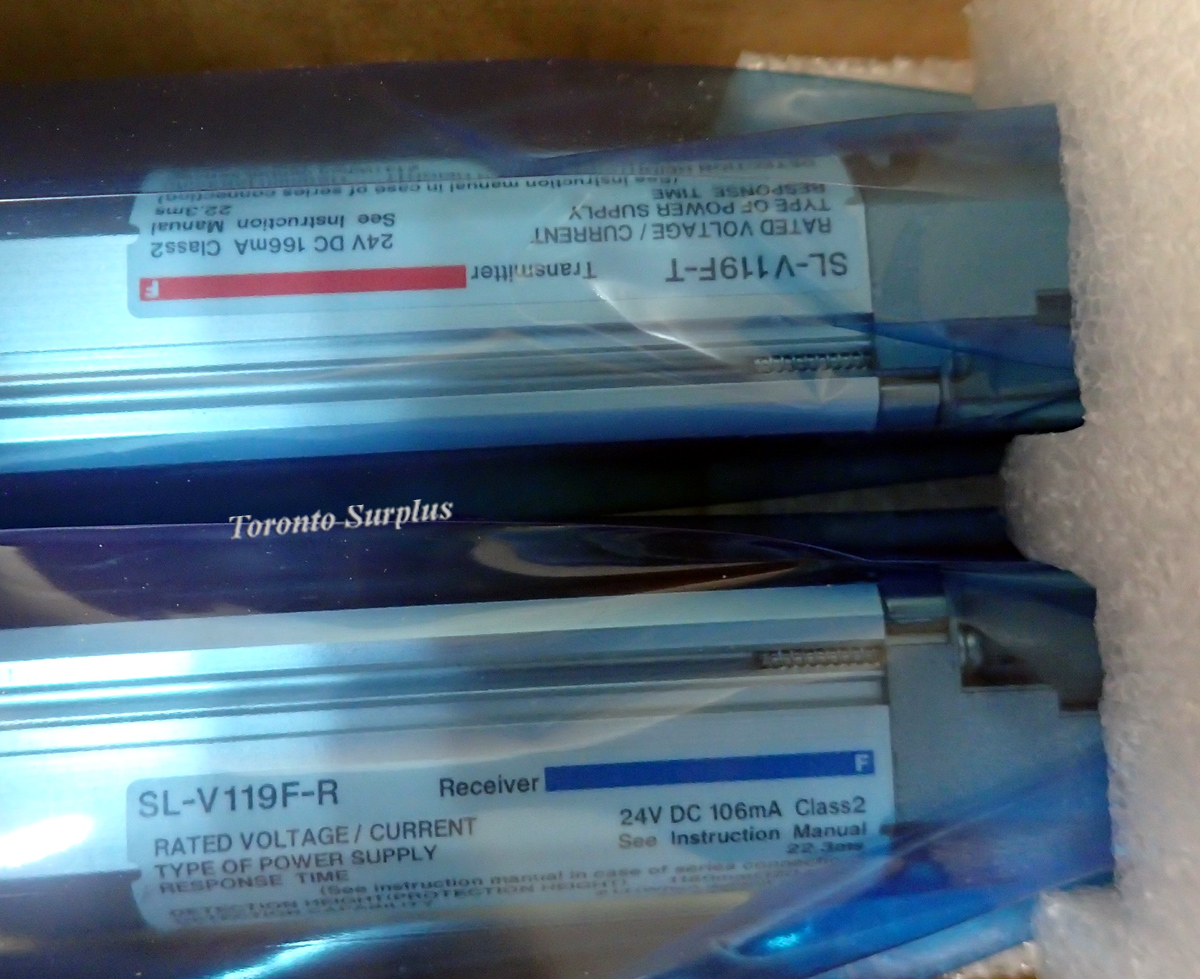

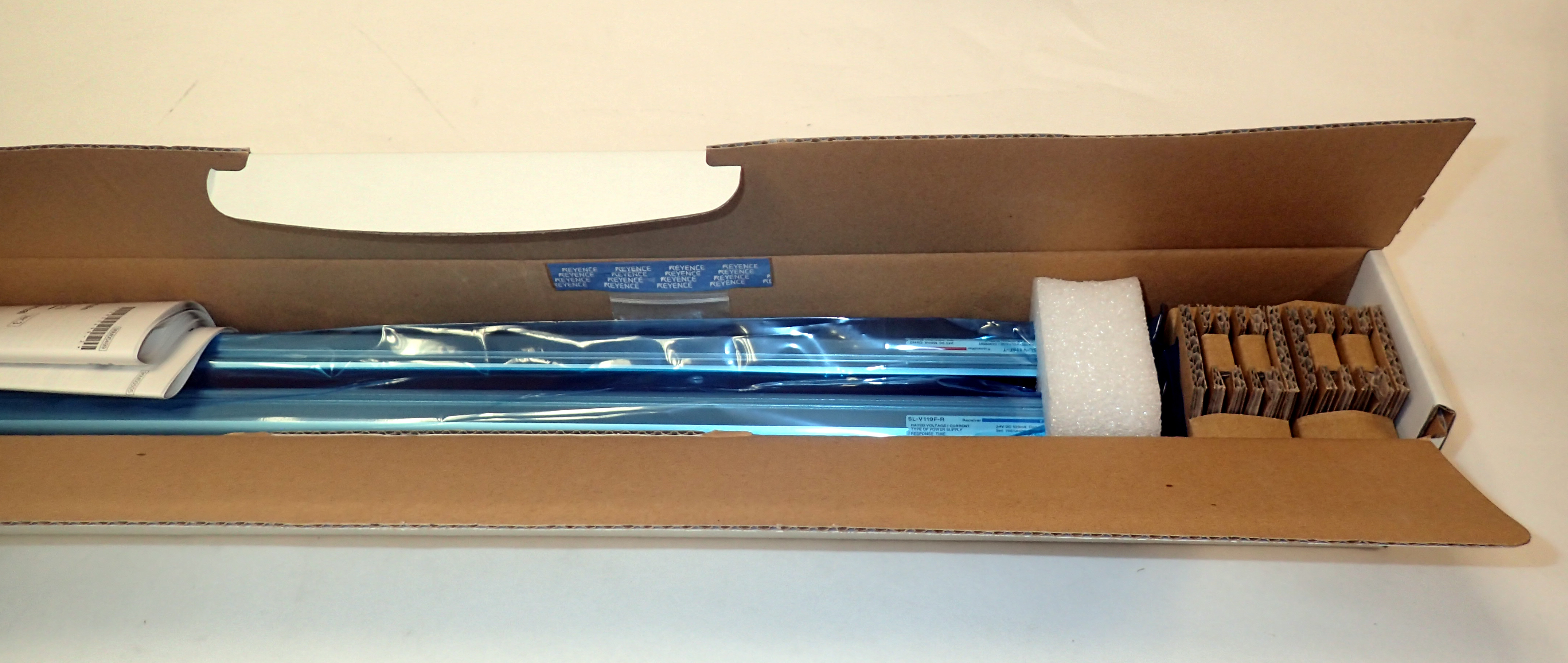

Keyence SL-V119F T Safety Light Curtain, Transmitter & Receiver,, 24VDC, BNIB / NOS
sku120332 — low stock
$940.00CAD
By Keyence
<p>Beam axis spacing/Lens diameter 10 mm/ø4 mm Detection capability    ø14 mm Effective aperture angle Max. ±2.5° (When operating distance is 3 m or more) Working distance    0.1 m to 7.0 m Response time (ms)    ON→OFF    22.3*1 OFF→ON …
Description
<p>Beam axis spacing/Lens diameter 10 mm/ø4 mm
Detection capability    ø14 mm
Effective aperture angle Max. ±2.5° (When operating distance is 3 m or more)
Working distance    0.1 m to 7.0 m
Response time (ms)    ON→OFF    22.3*1 OFF→ON    62.3*1
Light source Infrared LED (850 nm)
Operation mode Turns on when no interruptions are present in the detection zone (excluding when the muting function is used)
Power voltage 24 VDC +10%, -20% (Ripple P-P 10% or less)
Enclosure rating IP65 (IEC60529)
Overvoltage category II
Ambient temperature -10 to +55°C (no freezing)
Ambient temperature for storage -25 to +60℃ (No freezing)
Operating ambientluminance Incandescent lamp: 5,000 lux max., Sunlight: 20,000 lux max.
Vibration    10 to 55 Hz, 0.7 mm compound amplitude, 20 sweeps each in the X, Y and Z directions
Shock resistance 100 m/s2 (Approx. 10 G), 16 ms pulse in X, Y, Z directions, 1000 times each axis
Material    Main unit case Aluminium
    Upper case/lower case Zinc die-cast
    Front cover Polycarbonate, SUS304
Weight    Transmitter 850 g
    Receiver    855 g
</p>
Detection capability    ø14 mm
Effective aperture angle Max. ±2.5° (When operating distance is 3 m or more)
Working distance    0.1 m to 7.0 m
Response time (ms)    ON→OFF    22.3*1 OFF→ON    62.3*1
Light source Infrared LED (850 nm)
Operation mode Turns on when no interruptions are present in the detection zone (excluding when the muting function is used)
Power voltage 24 VDC +10%, -20% (Ripple P-P 10% or less)
Enclosure rating IP65 (IEC60529)
Overvoltage category II
Ambient temperature -10 to +55°C (no freezing)
Ambient temperature for storage -25 to +60℃ (No freezing)
Operating ambientluminance Incandescent lamp: 5,000 lux max., Sunlight: 20,000 lux max.
Vibration    10 to 55 Hz, 0.7 mm compound amplitude, 20 sweeps each in the X, Y and Z directions
Shock resistance 100 m/s2 (Approx. 10 G), 16 ms pulse in X, Y, Z directions, 1000 times each axis
Material    Main unit case Aluminium
    Upper case/lower case Zinc die-cast
    Front cover Polycarbonate, SUS304
Weight    Transmitter 850 g
    Receiver    855 g
