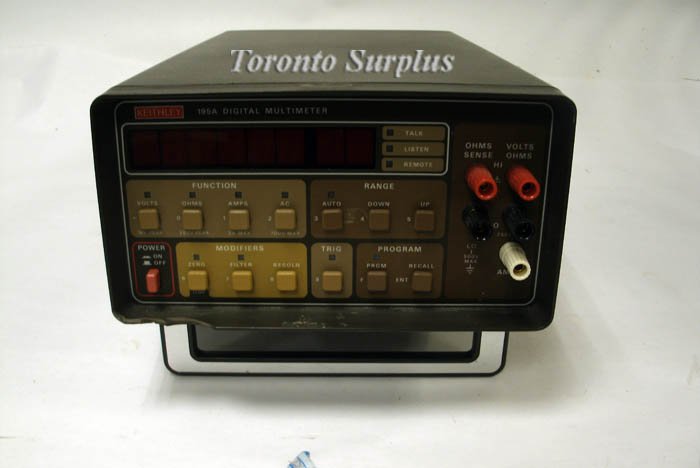

Keithley 195A Digital Multimeter 50Hz - 400Hz

General Specifications

DISPLAY

• Six 0.5" LED digits with decimal point, exponent and polarity. Function and IEEE bus status also displayed

RANGING

• Maunual or fast auto ranging ( 1450ms per range change on DCV )

ISOLATION

• Input LO to IEEE LO power line ground: 500V Max, 5 x 10 (5)V Hz greater than 10 (9) ohm parrelled by 300pF

WARM UP

• One hour to rated currency.

OPERATING ENVIRONMENT

• 0°-50° c 0% TO 80% Relative humidity up to 35°C

POWER

• 105-125V or 210-250V ( internal switch selected ), 50Hz to 400Hz, 24V A maximum.

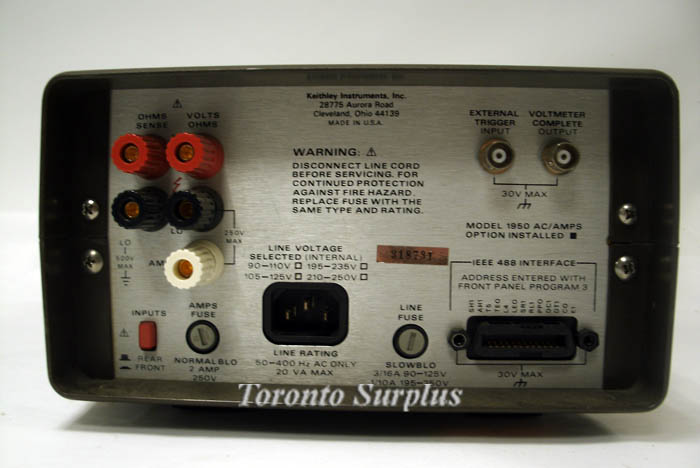

CONNECTORS

• Analog : Switch selectable front or rear, 5 way gold plated binding posts.
• Digital : Trigger input and Voltmeter Complete output on rear panel.BNC's
