JDS Fitel / JDS Uniphase HA9 Programmable Optical Attenuator Model HA9503-SPL2, ST (m) See Description (In Stock) z1
sku64862 — low stock
$1,900.00CAD
By JDS
<h3 class="icon-head head-products">JDS Fitel / JDS Uniphase HA9 Programmable Optical Attenuator Model HA9503-SPL2</h3><p>The JDS Uniphase Programmable Attenuator is a high resolution, extended-range, programmable attenuator ideal for testing power meters and for general test and laboratory work. Fr…
Description

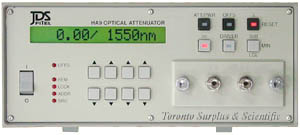

<h3 class="icon-head head-products">JDS Fitel / JDS Uniphase HA9 Programmable Optical Attenuator Model HA9503-SPL2</h3><p>The JDS Uniphase Programmable Attenuator is a high resolution, extended-range, programmable attenuator ideal for testing power meters and for general test and laboratory work.
Front panel access provides the option of increasing functionality through the addition of other devices, such as couplers or switches (not incl.). The HA9 has a SCPI/HP8156A compatible command set and can be controlled from the front panel keyboard or by the GPIB or RS232 interfaces.</p><ul style="" text-align:="">SPECIFICATIONS for P/N: HA9503-SPL2: <li>Fiber Type: 9/125 um</li><li>Range: 1200-1700 nm</li><li>Attenuation Range: 100 dB</li><li>Standard Output</li><li>Analog Return Loss: > 60 dB</li><li>Max Input Power: 200 mW

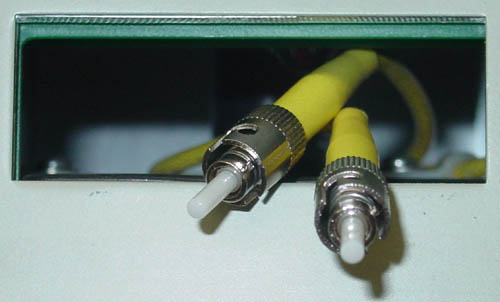

HA9 with 2 x ST Male Terminated Cables, only, no panel, As Pictured</li></ul>
Front panel access provides the option of increasing functionality through the addition of other devices, such as couplers or switches (not incl.). The HA9 has a SCPI/HP8156A compatible command set and can be controlled from the front panel keyboard or by the GPIB or RS232 interfaces.</p><ul style="" text-align:="">SPECIFICATIONS for P/N: HA9503-SPL2: <li>Fiber Type: 9/125 um</li><li>Range: 1200-1700 nm</li><li>Attenuation Range: 100 dB</li><li>Standard Output</li><li>Analog Return Loss: > 60 dB</li><li>Max Input Power: 200 mW
HA9 with 2 x ST Male Terminated Cables, only, no panel, As Pictured</li></ul>
