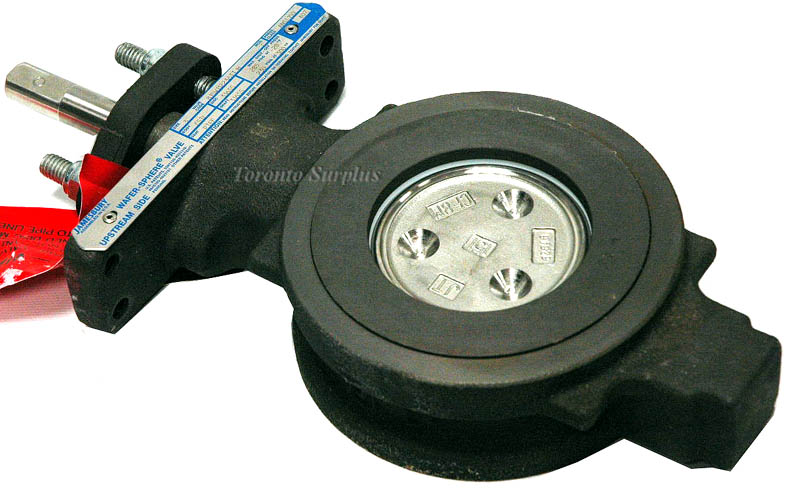

Jamesbury 3" 815W-11-2236TT C JH (special) / 3" 815W112236TT JH (special) Wafer-Sphere Butterfly Valve , Size 3" BRAND NEW / NOS
sku70011 — low stock
10% Store Wide!Save $29.90
$269.10CAD$299.00
By Neles-Jamesbury
<p>Jamesbury 815W-11-2236TT Wafer-Sphere Valve BRAND NEW / NOS</p><p><span style="font-size: larger;">Handle NOT included.  Ours has the Suffix JH, but I have not been able to ascertain what that stands for.</span> </p><p>The Inspection Status label says: 3"815W-11-2236TTC</p><p>Information cop…
Description
<p>Jamesbury 815W-11-2236TT Wafer-Sphere Valve BRAND NEW / NOS</p><p><span style="font-size: larger;">Handle NOT included.  Ours has the Suffix JH, but I have not been able to ascertain what that stands for.</span>

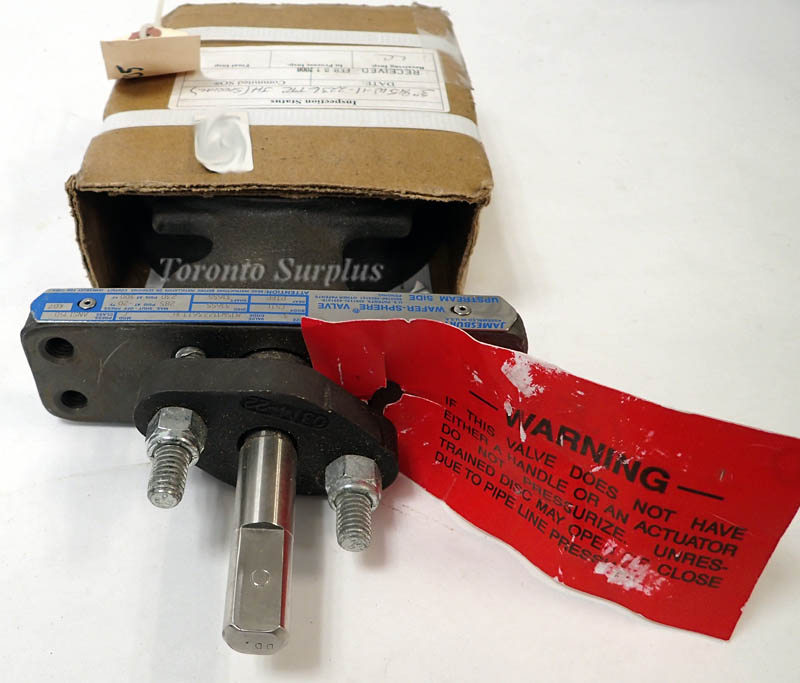

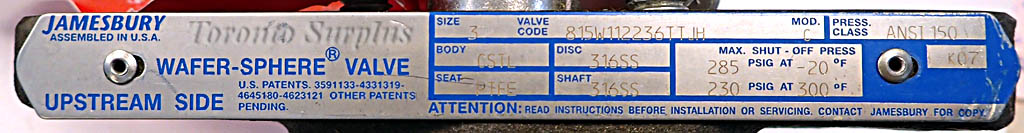

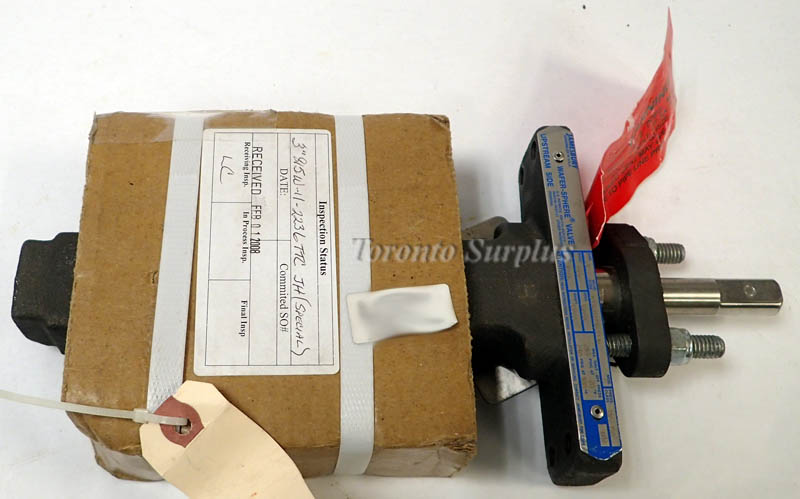

</p><p>The Inspection Status label says: 3"815W-11-2236TTC</p><p>Information copied from Metal Label on the valve
Valve Code: 815W112236TT JH
Size: 3
Mod: C
Body: CSTL
Seat: PTFE
Disc: 316SS
Shaft: 316SS
Max Shut-Off Pressure: 285 PSIG @-20° Fahrenheit
                                          230 PSIG @ 300° Fahrenheit
Pressure Class: ANS150</p><p>From spec sheet: </p><p><span style="color: rgb(255, 0, 0);">3</span> 3 Inch Valve Size
<span style="color: rgb(255, 0, 0);">815</span> Standard ANSI class 150
<span style="color: rgb(255, 0, 0);">W</span>  Wafer-Body Design
<span style="color: rgb(255, 0, 0);">11</span> Standard Seat (non Fire-Tite)
<span style="color: rgb(255, 0, 0);">22</span> Body Carbon Steel
<span style="color: rgb(255, 0, 0);">36</span> Disc & Shaft 316 Stainless Steel
<span style="color: rgb(255, 0, 0);">TT</span> PTFE Seat & Seal</p>
