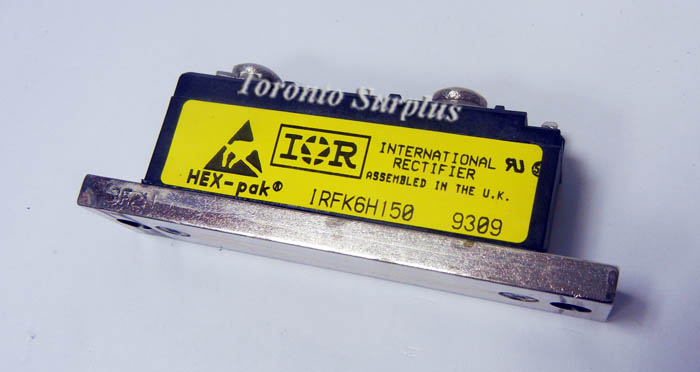

IOR IRFK6H150 Isolated Base Power Assembly 2.5 kV,
sku111326 in stock
Request a Quote
By International Rectifier
<p> The Hex -pak utilizes the well proven HEXFET die, combining low on state resistance with high transconductance. These superior technology die are assembled by state of the art techniques into the TO-240package, feraturing 2.5kV rms isolation and solid M5  screw connections. The small f…
Description
<p> The Hex -pak utilizes the well proven HEXFET die, combining low on state resistance with high transconductance. These superior technology die are assembled by state of the art techniques into the TO-240package, feraturing 2.5kV rms isolation and solid M5  screw connections. The small footprint means the packaging is highly suited to power applications where space is a premium.</p><ul><li>High Current capability</li><li>UL Recognised E78996</li><li>Electrically Isolated Base Plate</li><li>Easy Assembly into Equipment</li></ul><p>MAXIMUM RATINGS</p><ul><li>Io @ Tc=25°- Continuos Drain Current: 150A Max</li><li>Io @ Tc=100°C Continuous Drain Current: 120A Max</li><li>Pulse Drain Current: 720A</li><li>Pd @Tc =25°C Maximum Power Dissipation: 625W</li><li>Gate to Source Voltage: 20V</li></ul>
