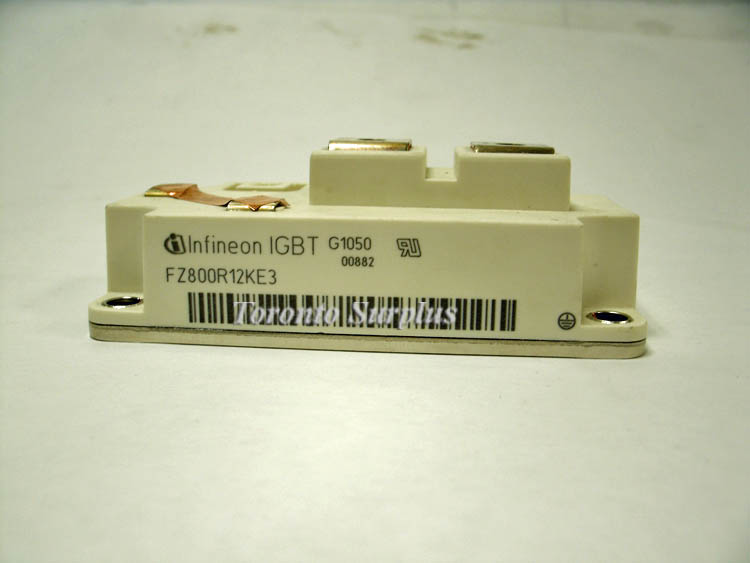

Infineon FZ800R12KE3 IGBT Module

Description

<p>&#160;Product: &#160;&#160; &#160;IGBT Silicon Modules &#160;&#160; &#160;
Configuration: &#160;&#160; &#160;Single &#160;&#160; &#160;
Collector- Emitter Voltage VCEO Max: &#160;&#160; &#160;1200 V &#160;&#160; &#160;
Continuous Collector Current at 25 C: &#160;&#160; &#160;800 A &#160;&#160; &#160;
Maximum Operating Temperature: &#160;&#160; &#160;+ 125 C &#160;&#160; &#160;
Package / Case:&#160; 62 mm &#160;&#160; &#160;
Maximum Gate Emitter Voltage: &#160;&#160; &#160;+/- 20 V &#160;&#160; &#160;
Minimum Operating Temperature: &#160;&#160; &#160;- 40 C &#160;&#160; &#160;
Mounting Style: &#160;&#160; &#160;Screw</p>
