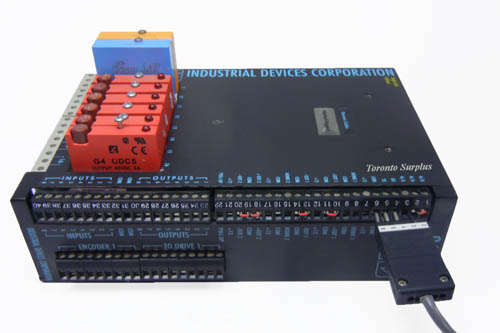

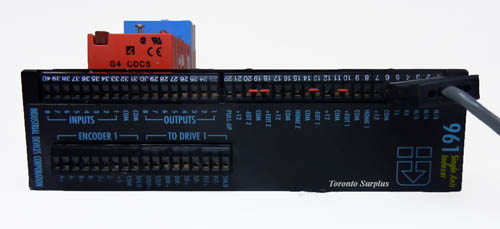

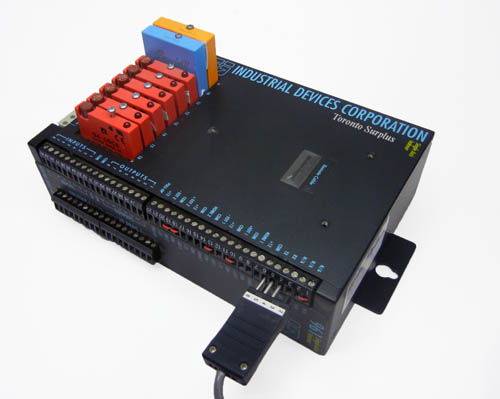

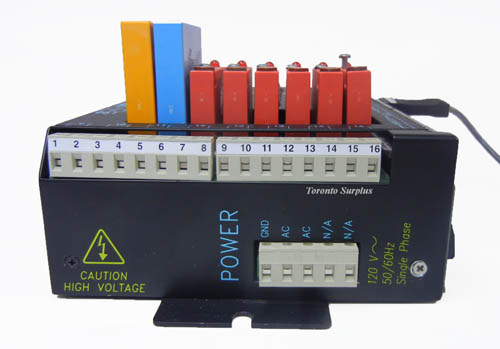

Industrial Devices 961 Single Axis Indexer
sku113671 — low stock
Request a Quote
By Industrial Devices
<p>Industrial Devices 961 single axis indexer, 8 Programmable Inputs, 8 Programmable Outputs. </p><p>Easily interfaces to a wide variety of step motor, and digital servo, drives which accept industry standard step and direction control signals.  </p><ul><li>Accepts OPTO22 (G4) digital modules a…
Description
<p>Industrial Devices 961 single axis indexer, 8 Programmable Inputs, 8 Programmable Outputs. </p><p>Easily interfaces to a wide variety of step motor, and digital servo, drives which accept industry standard step and direction control signals.
 </p><ul><li>Accepts OPTO22 (G4) digital modules and Grayhill (G5) analog and temperature modules.</li><li>100% solid state, opto–isolation to 4000 volts</li><li>8 positions, all bidirectional</li><li>Specify (intermix) factory installed AC, DC, and analog I/O modules
 </li><li>20 VAC single phase, 50/60 Hz, 2.0 Amps max.</li><li>Serial Interface: RS-232C, 3 wire implementation (Tx, Rx and Gnd), 9600 Baud, 8 data bits, 1 stop bit, no parity.
 </li><li>Step, Direction & Shutdown Optically isolated. Low signal <0.8 VDC,</li><li>Outputs high signal >3.5 VDC, ±60 mA. Active high.</li><li>Step pulse width is 0.8 to 10msec (depending on drive resolution setting).</li><li>Drive Fault Input Optically isolated, TTL level, internal 1.0k pull-up to +5 VDC.</li><li>Position Range ±0-2,147,483,647 steps. Absolute and incremental</li><li>Velocity Range 1 to 1,250,000 steps/sec</li><li>Acceleration Range 1 to 20,000,000 steps/sec2</li><li>OPTO-compatible I/O 8 Positions support OPTO-22 (G4) digital, and Grayhill (G5) analog and temperature modules.</li></ul>
 </p><ul><li>Accepts OPTO22 (G4) digital modules and Grayhill (G5) analog and temperature modules.</li><li>100% solid state, opto–isolation to 4000 volts</li><li>8 positions, all bidirectional</li><li>Specify (intermix) factory installed AC, DC, and analog I/O modules
 </li><li>20 VAC single phase, 50/60 Hz, 2.0 Amps max.</li><li>Serial Interface: RS-232C, 3 wire implementation (Tx, Rx and Gnd), 9600 Baud, 8 data bits, 1 stop bit, no parity.
 </li><li>Step, Direction & Shutdown Optically isolated. Low signal <0.8 VDC,</li><li>Outputs high signal >3.5 VDC, ±60 mA. Active high.</li><li>Step pulse width is 0.8 to 10msec (depending on drive resolution setting).</li><li>Drive Fault Input Optically isolated, TTL level, internal 1.0k pull-up to +5 VDC.</li><li>Position Range ±0-2,147,483,647 steps. Absolute and incremental</li><li>Velocity Range 1 to 1,250,000 steps/sec</li><li>Acceleration Range 1 to 20,000,000 steps/sec2</li><li>OPTO-compatible I/O 8 Positions support OPTO-22 (G4) digital, and Grayhill (G5) analog and temperature modules.</li></ul>
