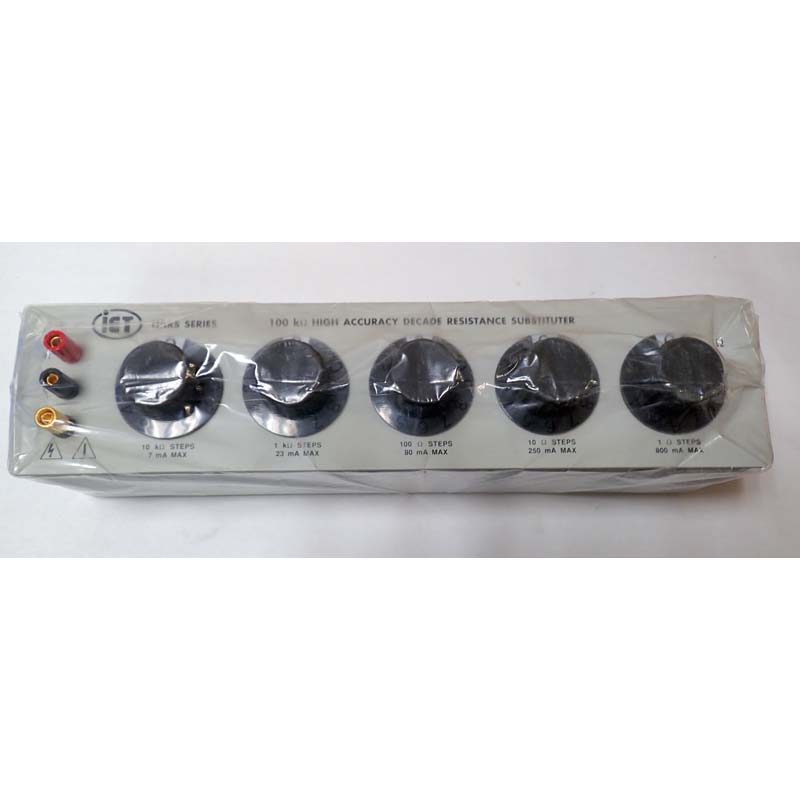

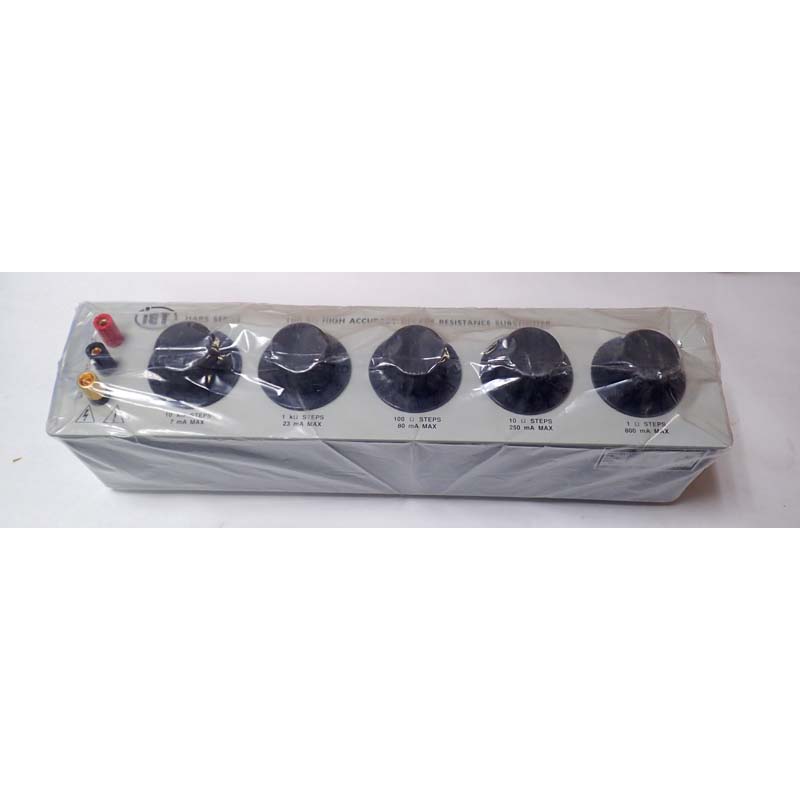

IET Hars-Q-5-1 100 Kilo-ohm High Accuracy Decade Resistance Substituter - NEW/NOS NSN: 6625-01-313-9717
sku12271 — low stock
Request a Quote
By General Radio
<p>Resistance is from 1 Ohm to 111.11 kOhm over 5 decades and 1 Ohm resolution. Wire wound, non-inductive resistors provide +/- 0.02% + 2 milliOhm accuracy. Five big, well marked dials have silver contacts and ceramic dielectric. DECADES: Decade 1: 1 ohm steps - 800 mA Max Decade 2: 10 ohm st…
Description
<p>Resistance is from 1 Ohm to 111.11 kOhm over 5 decades and 1 Ohm resolution. Wire wound, non-inductive resistors provide +/- 0.02% + 2 milliOhm accuracy. Five big, well marked dials have silver contacts and ceramic dielectric.
DECADES:
Decade 1: 1 ohm steps - 800 mA Max
Decade 2: 10 ohm steps - 250 mA Max
Decade 3: 100 ohm steps - 80 mA Max
Decade 4: 1 kohm steps - 23 mA Max
Decade 5: 10 kohm steps - 7 mA Max
These boxes are BRAND NEW and come with an operation manual.
3 in stock</p>
DECADES:
Decade 1: 1 ohm steps - 800 mA Max
Decade 2: 10 ohm steps - 250 mA Max
Decade 3: 100 ohm steps - 80 mA Max
Decade 4: 1 kohm steps - 23 mA Max
Decade 5: 10 kohm steps - 7 mA Max
These boxes are BRAND NEW and come with an operation manual.
3 in stock</p>
