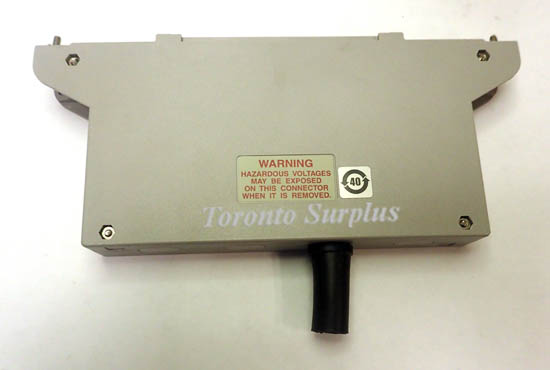

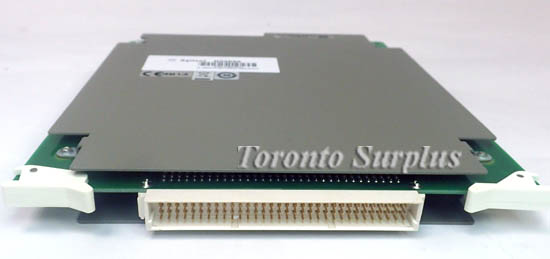

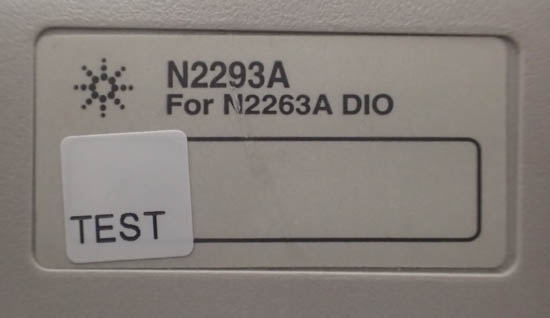

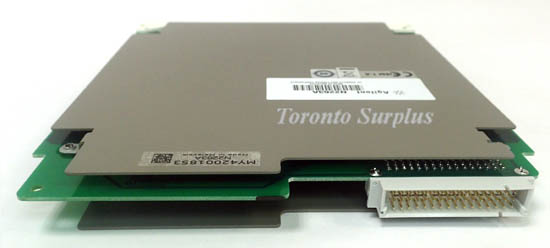

HP N2263A / Agilent N2263A 32-Bit Digital Input/Output Module w/ N2293A Screw Terminal Block

HP N2263A / Agilent N2263A 32-Bit Digital Input/Output Module w/ N2293A Screw Terminal Block.

Key Features & Specifications

• 32-bit bidirectional lines
• 3 handshake and control lines
• TTL compatible, sinking up to 0.6 A, 42V
• address 32 I/O lines individually, as two 16-bit ports or as four independent 8-bit ports
• Input /Output configurable byte-by-byte
• Three I/O control modes: static, strobe and handshake
