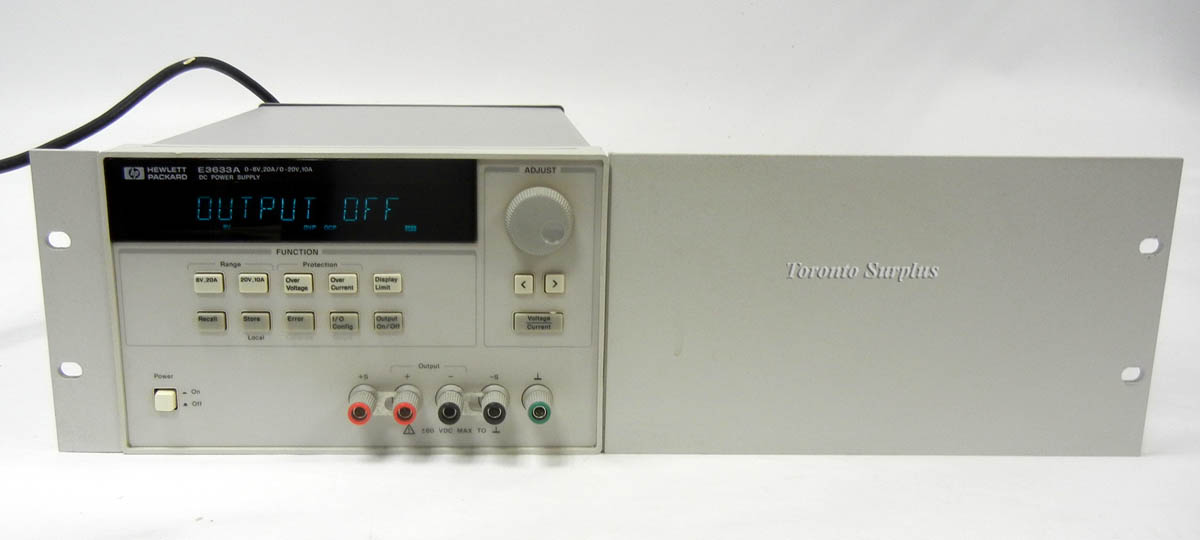

HP E3633A / Agilent E3633A Single Output Power Supply, 200W, 0 to 8V, 20A or 0-20V, 10A
sku110714 in stock
$800.00CAD
By Agilent
<p> The Agilent 200W, GPIB, single output E3633A is a high performance supply optimized for manual and basic automated testing; and, with a combination of benchtop capabilities and system features, it is designed to help improve measurement quality and reduce test time. Output ratings  &…
Description
<p> The Agilent 200W, GPIB, single output E3633A is a high performance supply optimized for manual and basic automated testing; and, with a combination of benchtop capabilities and system features, it is designed to help improve measurement quality and reduce test time.
Output ratings
    Range 1: 0 to 8 V, 20 A
    Range 2: 0 to 20 V, 10 A
Programming accuracy at 25°C ±5°C
    Voltage: 0.05% + 10 mV
    Current: 0.2% +10 mA
Ripple & noise (20 Hz to 20 MHz)
    Normal-mode voltage: <350 µVrms/3 mVpp
    Normal-mode current: <2 mA rms
    Common-mode current: <1.5 µA rms
Readback accuracy at 25°C ±5°C
    Voltage: 0.05% + 5 mV
    Current: 0.15% + 5 mA
DC Output Rating (0 ºC to 40 ºC) 0 to 8 V/20 A or 0 to 20 V/10 A
 </p>
Output ratings
    Range 1: 0 to 8 V, 20 A
    Range 2: 0 to 20 V, 10 A
Programming accuracy at 25°C ±5°C
    Voltage: 0.05% + 10 mV
    Current: 0.2% +10 mA
Ripple & noise (20 Hz to 20 MHz)
    Normal-mode voltage: <350 µVrms/3 mVpp
    Normal-mode current: <2 mA rms
    Common-mode current: <1.5 µA rms
Readback accuracy at 25°C ±5°C
    Voltage: 0.05% + 5 mV
    Current: 0.15% + 5 mA
DC Output Rating (0 ºC to 40 ºC) 0 to 8 V/20 A or 0 to 20 V/10 A
