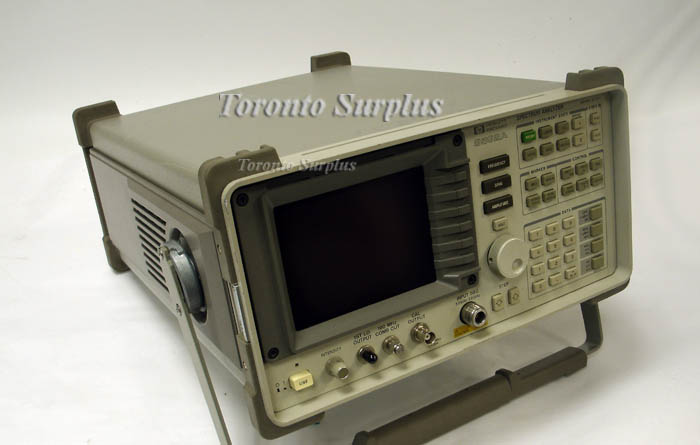

HP 8592A / Agilent 8592A Spectrum Analyzer 50 kHz - 22 GHz
sku107241 — low stock
$3,200.00CAD
By Agilent
50 kHz to 22 GHz frequency range 1 kHz to 3 MHz resolution in 1, 3 sequence Input amplitude range: - 109 dBm to + 30 dBm Store and recall different control settings and trace displays Built in preselector and comb filters Over 100 functions can be programmed from 3 different optional computer interf…
Description
- 50 kHz to 22 GHz frequency range
- 1 kHz to 3 MHz resolution in 1, 3 sequence
- Input amplitude range: - 109 dBm to + 30 dBm
- Store and recall different control settings and trace displays
- Built in preselector and comb filters
- Over 100 functions can be programmed from 3 different optional computer interfaces
- Frequency accuracy: ± 2.7 MHz at 22 GHz
- Displayed average noise: less than - 88 dBm
- Built-in frequency counter
- N(f) input connector
- 50 ohm input impedance
- Phase noise of -105 dBc/Hz at 30 kHz offset
- Operate remotely and print directly with the optional interfaces
- 4 control setup, everything else is automatic
