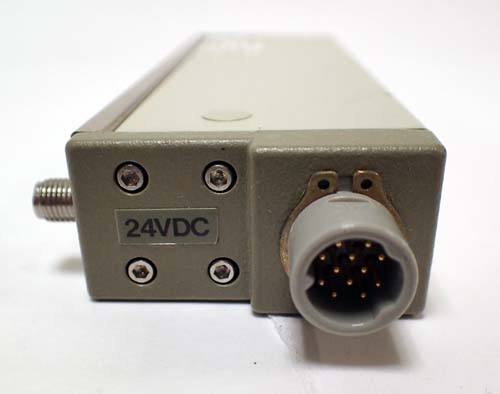

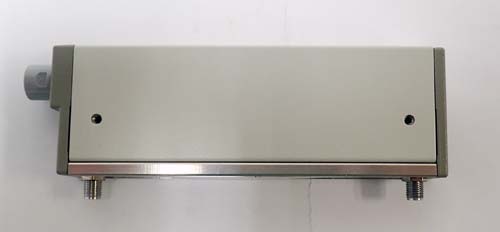

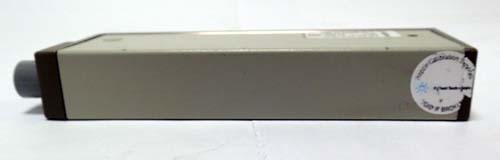

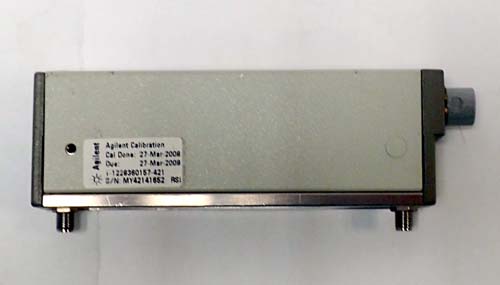

HP 8494H / Agilent 8494H Programmable Step Attenuator DC to 18GHz W/ OPT 002
sku108461 — low stock
Request a Quote
By Agilent
<p>Frequency Range: dc to 18 GHz Attenuation Range: 0 to 11 dB; 1 dB steps Insertion Loss: (0 dB setting) 0.6 dB + 0.09 dB/GHz Maximum SWR: 1.5 to 8 GHz 1.6 to 12.4 GHz 1.9 to 18 GHz Repeatability 1 Life: 0.03 dB, maximum; 5 million cycles per section Maximum RF Input Power: 1 W, average 100 W …
Description
<p>Frequency Range: dc to 18 GHz
Attenuation Range: 0 to 11 dB; 1 dB steps
Insertion Loss: (0 dB setting) 0.6 dB + 0.09 dB/GHz
Maximum SWR:
1.5 to 8 GHz
1.6 to 12.4 GHz
1.9 to 18 GHz
Repeatability 1 Life: 0.03 dB, maximum; 5 million cycles per section
Maximum RF Input Power: 1 W, average 100 W peak
2 (10 μs, maximum)
Shipping Weight: 0.9 kg (2 lb)
1 Measured at 25 °C

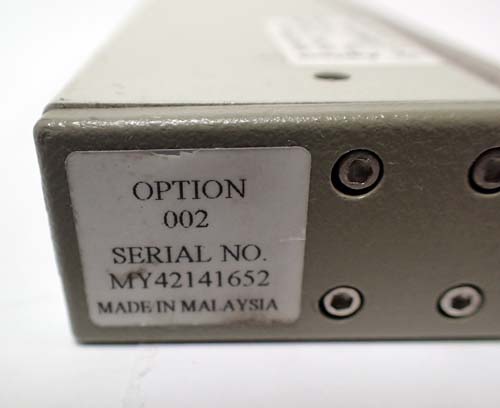

2 Not to exceed average power. </p><p>Option 002 =sma (F)</p>
